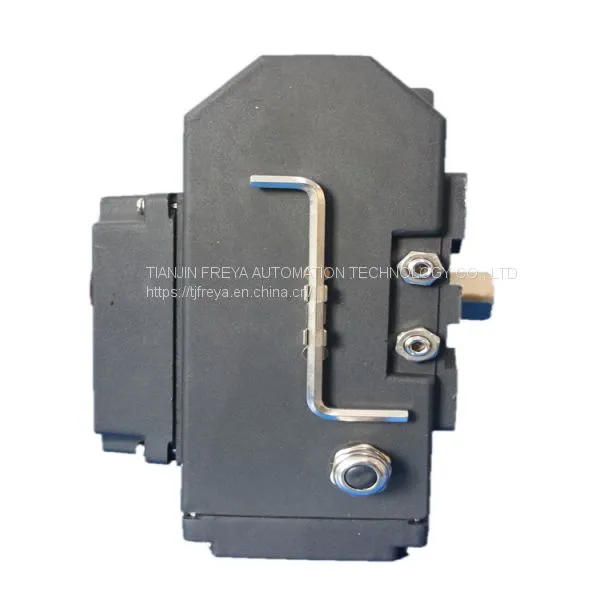

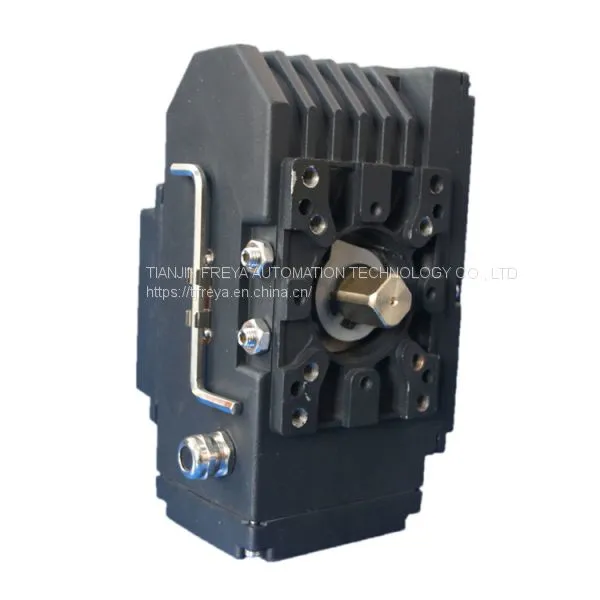

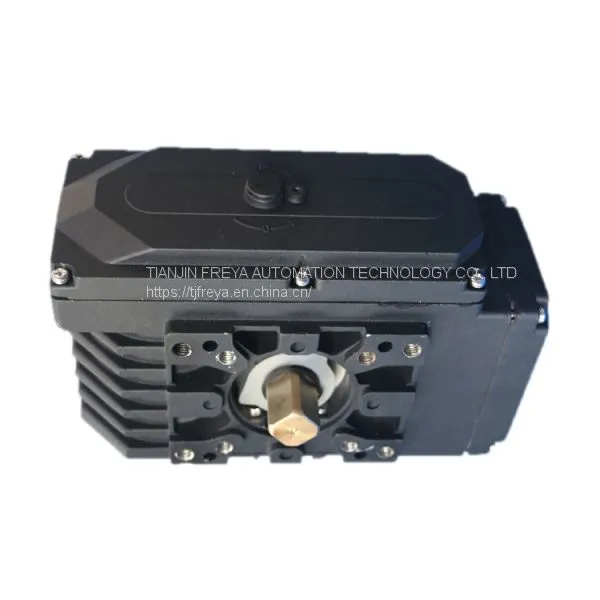

Electric Valve Small Electric Rotary Actuator Dle-60 Dle-160

The integrated intelligent electric actuator adopts advanced intelligent digital control technology, which can directly receive 4~20mADC signals from industrial control instruments or computer outputs without additional feedback unit and servo amplifier. It enables accurate position control for a variety of industries such as ball valves,butterfly valve. dampers, baffles, couplings and more. The product not only improves the accuracy of the position control of the electric actuator, but also realizes miniaturization, intelligence, and integration (the controller and the actuator are integrated). Compared with the traditional electric actuator, the product has the characteristics of small size, light weight, high precision, strong function, reliable performance, low running cost, no maintenance, etc. It can be widely used in power stations, petroleum, chemical, metallurgy, Medicine, light industry and other industries.

Power supply: AC 220V ± 10%, 50Hz / 60Hz

Control accuracy: 0.3% to 3% adjustable.

Input signal: 4~20mADC or 1~5VDC

Input impedance: 200Ω

Position feedback signal: photoelectric isolation output 4 ~ 20mADC

Position feedback resistance: 500Ω~1KΩ

Positioning method selection: manual / automatic

Mode of action: positive action / reaction

Automatic positioning and calibration: full open / fully closed

Switch output capacity: AC 600V, 10A

Safe position selection: The position of the electric actuator when the input signal is faulty can be fully open/stop/fully closed.

Protection function: built-in overheating protector with three limit protection for software, electrical and mechanical protection.

Protective performance: equivalent to IP67

Return difference: ≤1%

Operating ambient temperature: -10 ° C ~ +70 ° C

Relative temperature: ≤85%

Damping characteristics: ≤ half cycle

Installation direction: 360° omnibearing
