Mini Electrical Actuated Valves DY160 DY250 DY160m DY250m

Tianjin Freya Automation Technology Co., Ltd
Mini Electrical Actuated Valves DY160 DY250 DY160m DY250m thumbnail-1
Mini Electrical Actuated Valves DY160 DY250 DY160m DY250m thumbnail-2
Mini Electrical Actuated Valves DY160 DY250 DY160m DY250m thumbnail-3
Mini Electrical Actuated Valves DY160 DY250 DY160m DY250m photo-1
Mini Electrical Actuated Valves DY160 DY250 DY160m DY250m photo-2

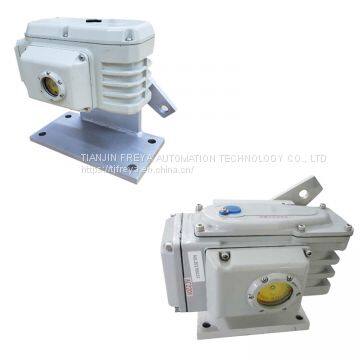

Mini Electrical Actuated Valves DY160 DY250 DY160m DY250m photo-3
US$ 360 - 900 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Freya
Place of Origin:
China
Model Number:
DY160 DY250 DY160m DY250m
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN XINGNAG PORT
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Freya
Place of Origin China
Model Number DY160 DY250 DY160m DY250m


Integrated intelligent electric actuator adopts advanced intelligent digital control technology, without additional configuration of feedback unit and servo amplifier, can directly receive 4~20mA DC signal output by industrial control instruments or computers.Accurate position control can be achieved for various industrial ball valves, disc valves, dampers, baffles, couplings and so on.The product not only improves the position control precision of the electric actuator, but also realizes miniaturization, intelligence and integration (the controller and the actuator are integrated).Compared with the traditional electric actuator, it has the characteristics of small volume, light weight, high precision, strong function, reliable performance, low operating cost and no need for maintenance, etc. It can be widely used in power station, petroleum, chemical, metallurgy, medicine, light industry and other industries.







Power source: AC 220V±10%, 50Hz/60Hz

Control precision: 0.3% ~ 3.0% adjustable

Input signal: 4 ~ 20mA DC or 1 ~ 5V DC

Input impedance: 200 Ω

Position feedback signal: photoelectric isolation output 4 ~ 20mA DC

Position feedback resistance: 500 Ω -1000Ω

Positioning mode selection: manual/automatic

Choice of action mode: positive action/reaction action

Automatic positioning and calibration: fully open/fully closed

Switch output capacity: AC 600V, 10A

Safety position selection: when the input signal fault, the position of the electric actuator can be selected as fully open/stop/fully closed

Protection function: built-in overheat protector, with software, electrical and mechanical triple limit protection

Protection performance: equivalent to IP67

Back to the poor: 1% or less

Ambient temperature: -10℃ ~ +70℃

Relative temperature: ≤ 85%

Damping characteristics: ≤ half period

Installation direction: 360° omni-directional







QQ.png Q.png QQQQ.png  QQQ.png


Shipment Term:

1. Orders processed timely after the payment verification .

2. Terms of Deliver: FOB / CFR / CIF / EXW etc.

3. Due to stock status and time differences , we will choose to ship your item from our first available warehouse for fast delivery .

Payment Term:

1. Accept T/T, D/A, D/P, L/C, West Union with 30% Deposit.

2. Advance payment should be made within 3 days of order .

Our Services

Our company provides you with the following services free of charge:

1. All-round electric actuator and valve technology selection service

2. High-quality post-product maintenance and technical analysis services

3. Accept other related cooperation.




Product Tags: Mini electrical actuated valves , DY160 DY250 DY160m DY250m
