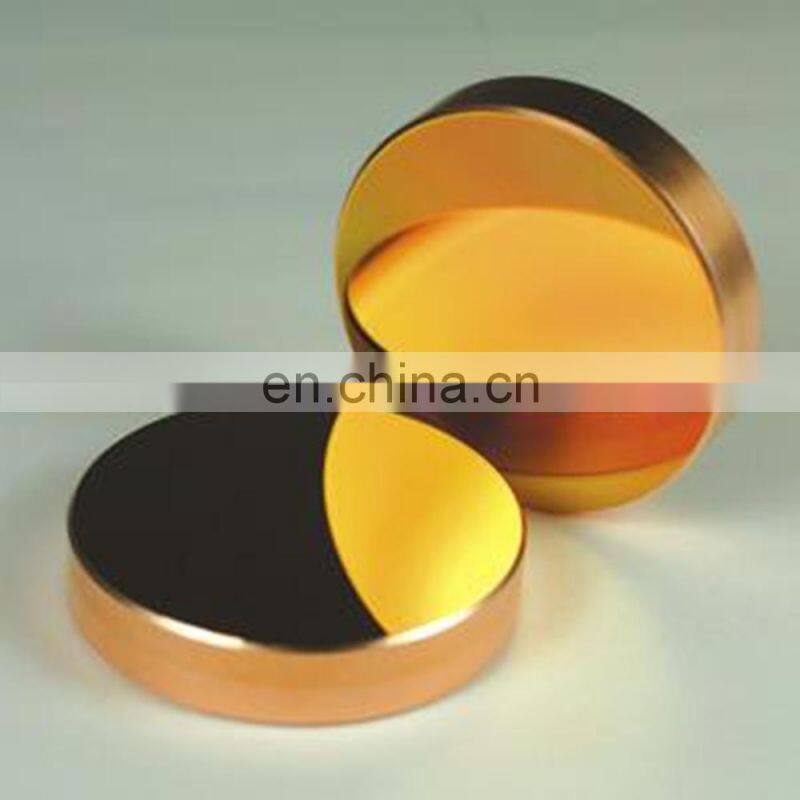

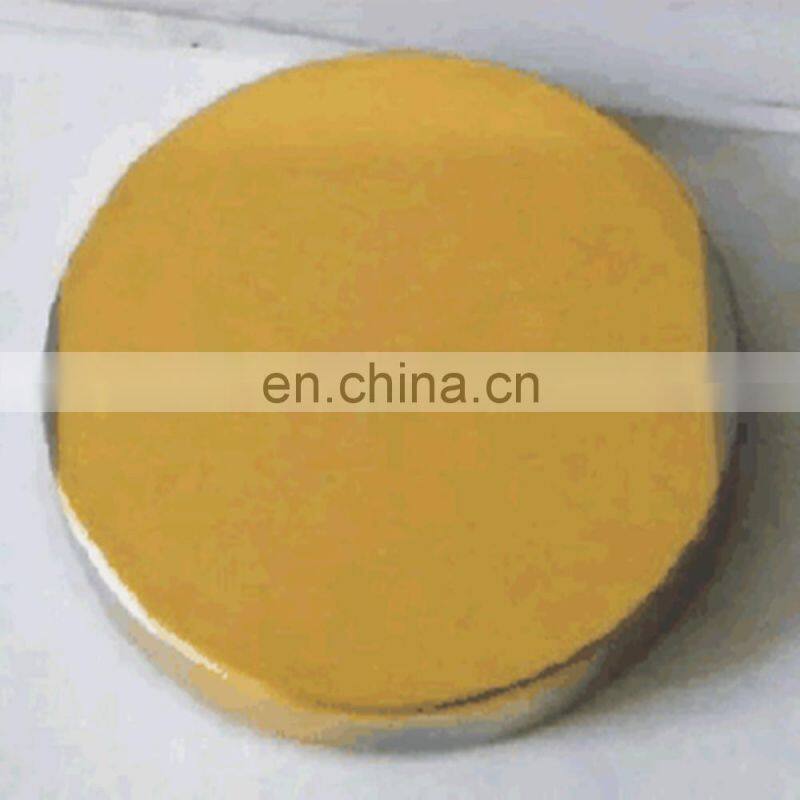

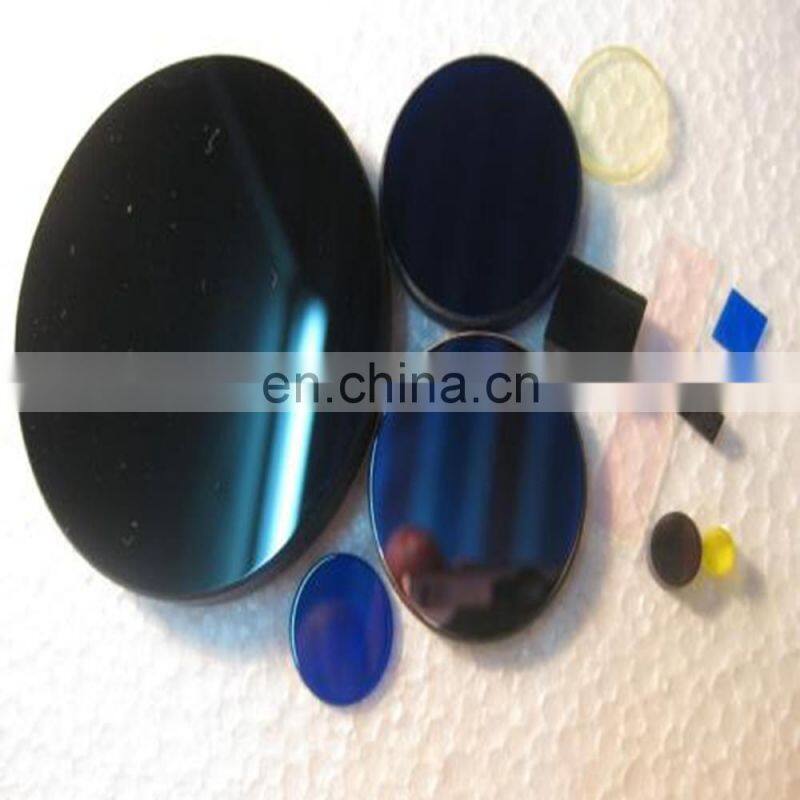

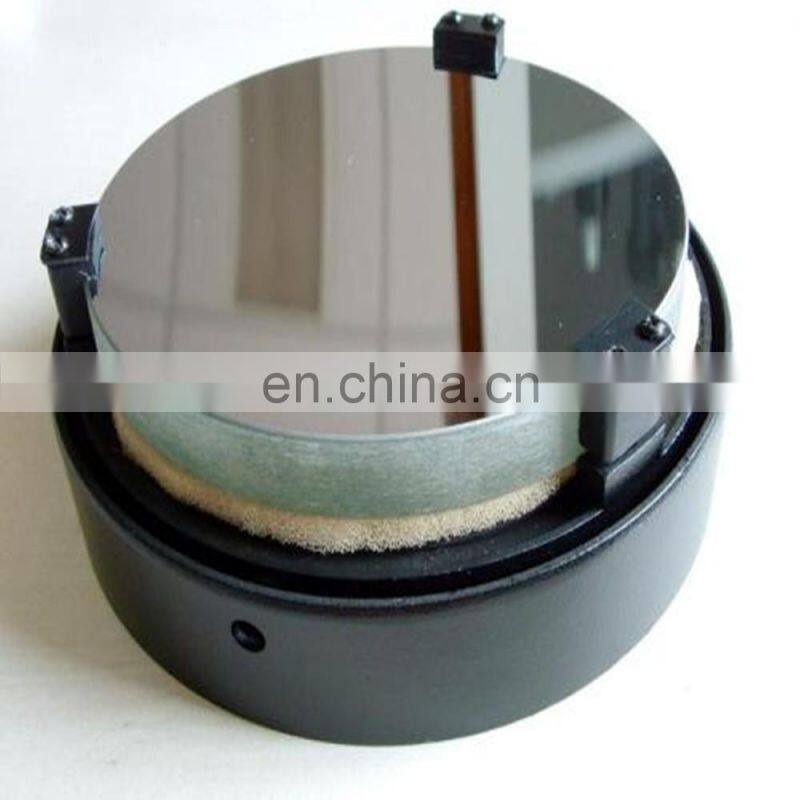

Reflective Mirror

Features:

Model: high quality mirror lens

Diameter: 0.99" (25mm)
Thickness :3mm/0.12"

Material :Molybdenum

Side 1 Radius:Plano

Side 1 Reflectivity:>97%

Usage : Apply for co2 laser cutting and engraving

This would be a great mirror for a co2 engraver or laser cutter, to relect the laser beam into laser head.
We adopt the top Molybdenum material in the industry to produce co2 laser reflector mirror.

Specifications:

Diameter Tolerance: +0,-0.13mm/+0.000’’ -0.005’’
Thickness Tolerance: ±0.25mm/±0.010’’
Clear Aperture >80%
Flatness λ/2 per 1" Dia
Parallelism < 3 arc minutes
Surface Quality 40/20 scratch and dig

Advantages
• The reflecting rate of working waveband in co2 laser industry reaches 97%;
• The refllector mirror consist in many advantages such as high laser reflecting rate, wihtout coating anti wiping, higher luminous flux, etc. For which materially improves your work efficiency.

Benefits
•High reflecting rate, better effect in cutting and engraving, bearable for high power density, and without any coating against peeling off and durable for wiping;

• Without coating, reduction or elimination on stray light of the optical system;

• The cutting & engraving speed of some applications improved, and the ability for reflected light enhanced;

• More bearable for wiping, longer life span as well as better process to polish.
