LOW-E Vacuum Double Insulated Glazing Glass

Vacuum Double Insulated Glazing Glass

            Vacuum glass is made according to principle of vacuum flask, seal two pieces of flat glasswith a 0.15mm gap and pump the vacuum to 0.1Pa, using a LOW-E glass to achieve the best features. Due to internal vacuum, conduction and convection of the gas is almost non-existent, LOW-E coating more than 85% of the turn of the infrared radiation reflected back, vacuum glass block conduction, convection, and radiation basically with super thermal insulation! Vacuum glass tempered, laminated and insulating composite glass deep-processing technology to achieve the security vacuum in the glass.

Advantage:

•   Super heat and insulation

             The interval between two pieces of vacuum glass is only 0.1~0.2 mm that much smaller than insulating glass within the hollow vacuum. There is no conduction and convection, and LOW-E coating reflects almost more than 85% of the infrared back. In short, the vacuum glass conduction, convection and radiation are the basic blocked, so it has such an excellent thermal insulation property.

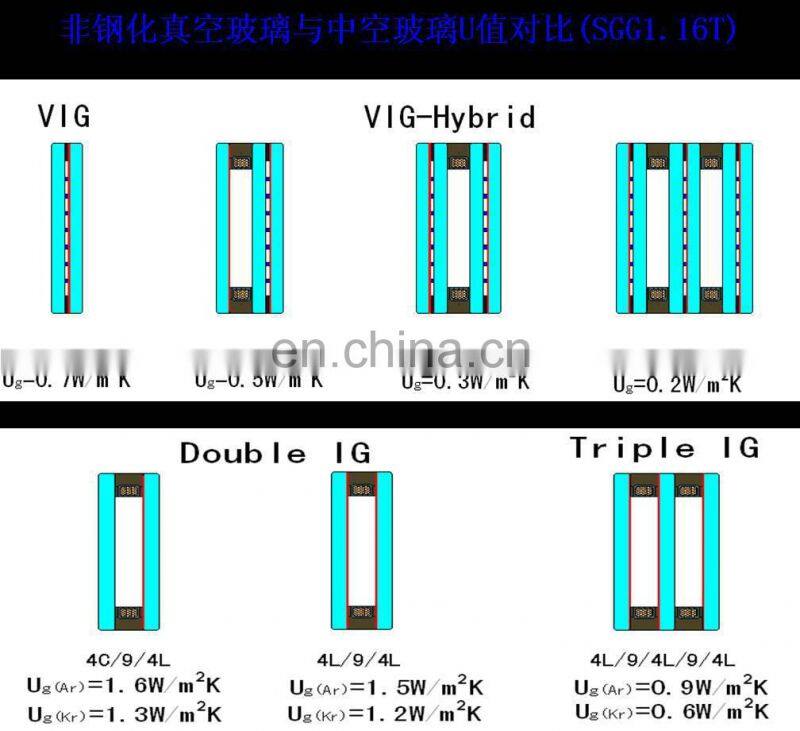

HD-VIG has a very low heat transfer coefficient, and its thermal insulation properties exceed all hollow glass, significantly reduce the costs of healing and refrigeration. In winter, HD-VIG reducesheat loss and save heating expenses whereas, in summer, it reduces indoor temperature and the workload of the air conditioner.

• Ultra-quiet

        Vacuum glass in a vacuum, no air media, the noise cannot be spread, and really reduce the noise compared with hollow glass. In most voice-band, especially in the low frequency sound insulation performance is better than a hollow glass.
HD-VIG has excellent sound insulation performance, especially the performance to low frequency sound insulation in sensitive human ear is better than hollow glass, let you stay away from the noise pollution and enjoy the quiet space.

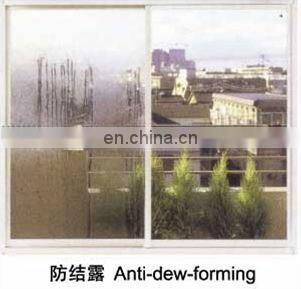

• Anti-condensation

       Compared with insulating glass, vacuum layer of vacuum glass with no air-water vapor molecules, good sealed, a large thermal resistance, condensation at lower temperatures and will not appear insulating glass "condensation" phenomenon.
Vacuum Insulated glass  dew point is low in winter, effectively preventing the glass frost condensation.

•       Negative energy consumption

            Combining solar cells with vacuum glass is new high-tech construction materials with photovoltaic glass and architectural glass.It saves energy with vacuum glass and overcomes the solar cell operating temperature at the same time.It also reduces the footprint and installation costs.Such combination constitutes a PV power plant which provides clean power resources to buildings.
HD VIG PV glass series is the perfect combination of photovoltaic power generation and energy-saving, whichbrings a qualitative leap for the photovoltaic building integration (BIPV) , makes"zero energy" or even "negative energy " building goalahead of schedule.
