Glass Stair

Tempered and Heat Strengthened Glass

Tempered and heat-strengthened glass is made by heating ordinary glass to its softening point and then suddenly cooling down to form compression in the surface layer of the glass, thus the mechanical strength is increased by times.

Features of Tempered Glass

Safety: Once breakage occurs, the glass disintegrates into small cubical fragments which are relatively harmless to human body.

High strength: 5 times stronger than annealed glass.

Excellent thermal stability: it withstands abrupt change of temperature.

Features of Heat Strengthened Glass

Mechanical strength is 1.6-2 times of annealed glass.

Outstanding thermal stability.

Flatness is close to annealed glass and much better than tempered glass

Applications

- Window and door

- Facades and curtain walls

- Automobile,train,vessel

- Furniture and decoration

Specifications

Thickness:3~19mm

Max. size: 144"X355", 98"X504"

(3660X9000mm, 2500X12800mm)

Quality Standards

GB 15763.2, Chinese standard.

EN 12150.1, European standard.

EN 12600, European standard.

ANSI Z97.1, American standard.

AS/NZS 2208, Australian standard.

Heat Soak Test

Heat soak testing is a three-stage process that includes a ramp-up, dwelling time at 290℃ and a cool-down phase. Heat soak testing is performed on fully tempered uncoated or pyrolytic glass products to reduce the probability of spontaneous breakage due to nickel sulfide inclusions that may exist in tempered float glass.

Applications

All tempered glass should undergo heat soak test.

Specifications

Thickness: 3~19mm

Max. Size: 98"X236", (2500X6000mm)

Quality Standards

GB 15763.4, Chinese standard.

EN 14179.1, European Standard.

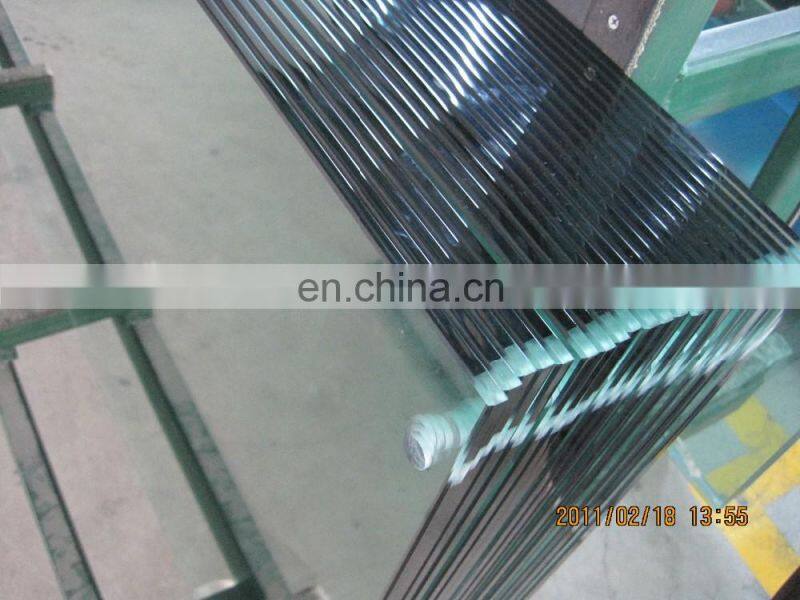

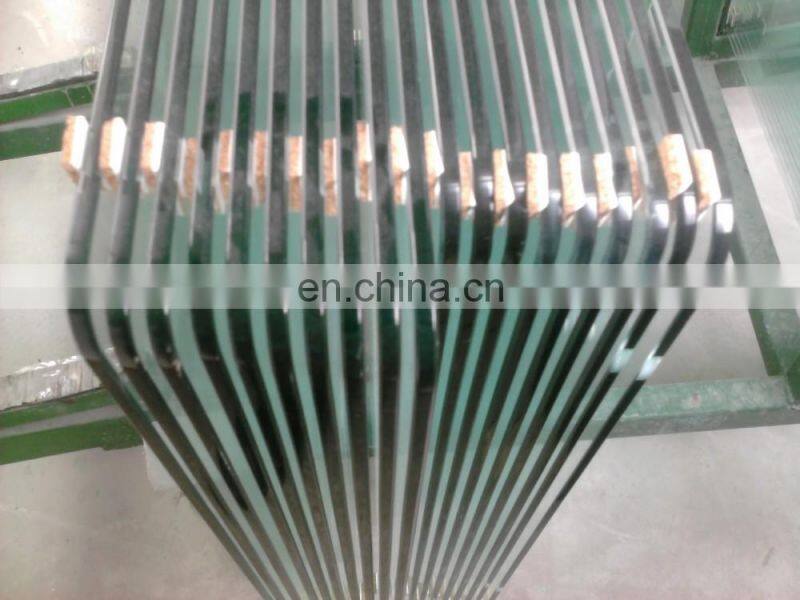

Bent Tempered Glass and Curved Tempered Glass

Bent Tempered Glass and Curved Tempered Glass adopt the similar process with tempered glass, but before the cooling process, using the external power bent the glass to a proper radian according to the requirement, its wind pressure resistance is better than flat tempered glass and other kinds of glass for the special shape. It widely use in esthetics architecture field for the beautiful appearance.

Applications

- Facades and curtain walls

- External walls of revolving doors and exposed elevators

- Stairs, handrails, skylights

- Partions, display shelves and furniture

Specifications

Thickness: 4~19mm

Min. Size: 9"X17", (220X430mm)

Max. Size: 96"X165", (2440X4200mm)

Curve depth: up to 500mm

Bending angle: up to 90"

Quality Standards

GB 15763.2, Chinese standard.

EN 12150.1, European Standard.

AS/NZS 2208, Australian standard.
