Features:

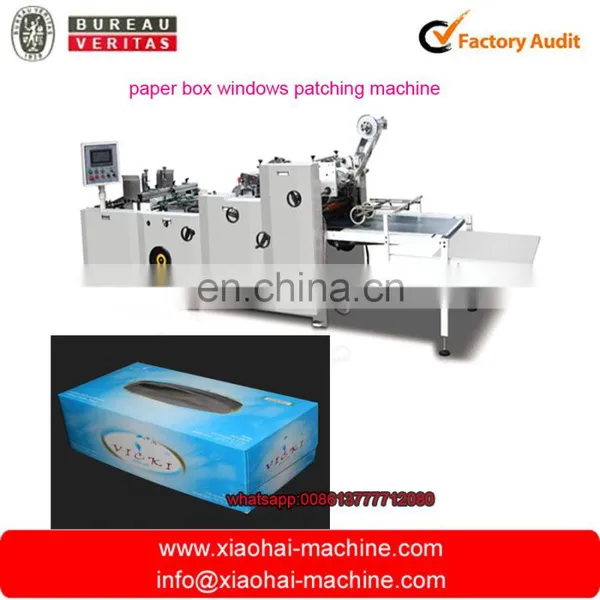

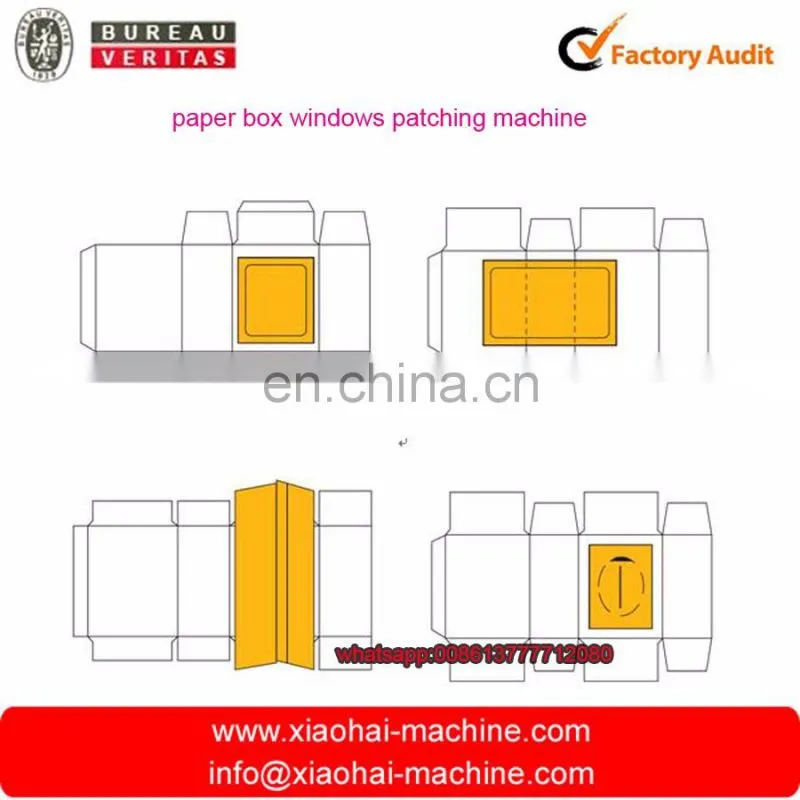

The Window Patching Machine is widely used in the window patching to the liquor box,
gift box, tissue box, cosmetic box, toy box, etc. It can be used for window film cutting,
creasing, gluing and patching of card.
Machine details:
1)The paper feeder parts is controlled by the servo motor, the paper pile make the intermittent movement
in the process of the paper feeding, the belts operate long life,
process the paper products to the conveying parts steady and orderly.
2)The paper conveying parts installed the four conveying chains with the four pushing blocks,
it can be adjusted according to the paper shape.
3)The gluing parts adopt the adjustable parts gluing structure,
it is convenient for adjustable according to the paper requirement and the gluing position,
save the gluing quantity, it is easy for pulling out the gluing parts, convenient for washing.
The gluing roller stopped the gluing when stopped the machine.
4)The cutting parts includes two blades. The upper roller is the cutting
film roller with the two blade, finishing the cutting of the film.
Technical Parameters:
Cardboard weight |
g/m2 |
200-1000 |
Output per hour |
pieces |
12000 |
Blank length |
mm |
100-560 |
inch |
3.93-22.04 |
|
Blank width |
mm |
100-650 |
inch |
3.93-25.59 |
|
Film length |
mm |
30-260 |
inch |
1.18-10.23 |
|
Film width |
mm |
60-300 |
inch |
2.36-11.81 |
|
Film thickness |
mm |
0.05-0.25 |
Connected load |
kw |
4.4 |
Weight |
kg |
2000 |
Dimensions |
mm |
4500x1200x1600 |
