album make machine
1. Features:
High Speed Hard Cover Machine is specialized for producing hard covers, such as book cover, bookcase, notebook & diary, desk calendar, gift box, mobile phone box, photo album, bible
and lever arch file....etc.
2. Advantages:
1)Automatically finish gluing cover, setting positon and cladding for two grey boards and center paper
board.
2)Adopt OMRON PLC, frequency control system
3)It is controlled totally by computer and the touch screen will display machine working parameters
and error directly.
4) Safe protection warning
5)Adopt Taiwan BBM motor,.Taiwan EDLEY inverter
6)Equipped with Automatic feeder adjusting device and Irregular board size device.
3.Technical Parameters:
|
Max Cover Size |
680*400mm |
|
Min Cover Size |
150*100mm (For special size:100x85mm) |
|
Bag Width |
70-260mm |
|
Speed |
10~36 pcs/min |
|
Power |
10.4kw |
|
Max board quantity |
7 pcs |
|
Center board width |
5-100mm |
|
Center board thickness |
0.3-1mm |
|
Gutter Width |
3-17mm |
|
Flaps Bending Width |
7-14mm |
|
Board thickness |
0.8-5mm |
|
Sponge Matted Boards thickness |
1-8mm |
|
Machine weight |
4500kg |
|
Machine Dimension |
3500mmx3500mmx2000mm |

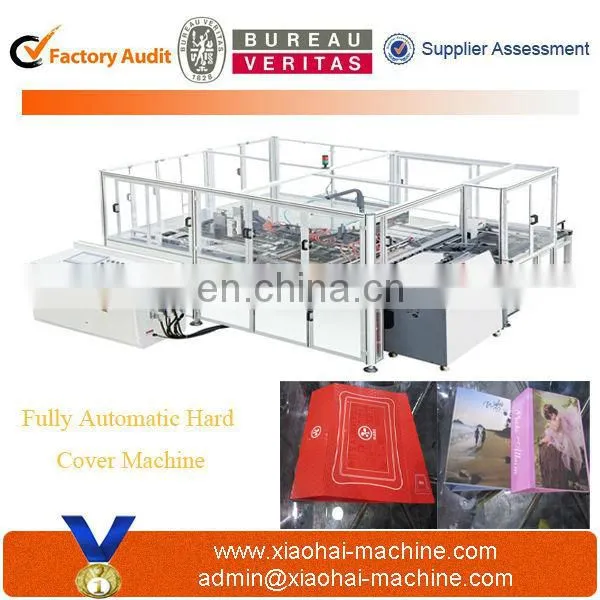

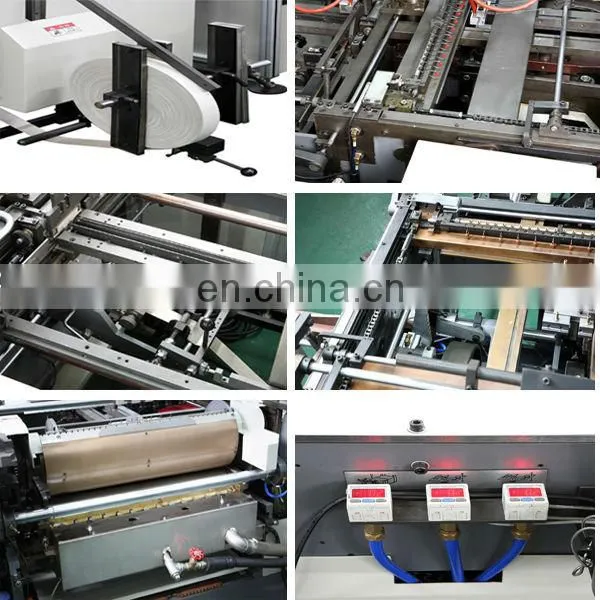

4.Machine Pictures:

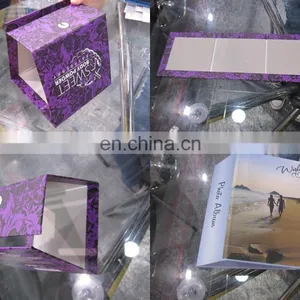

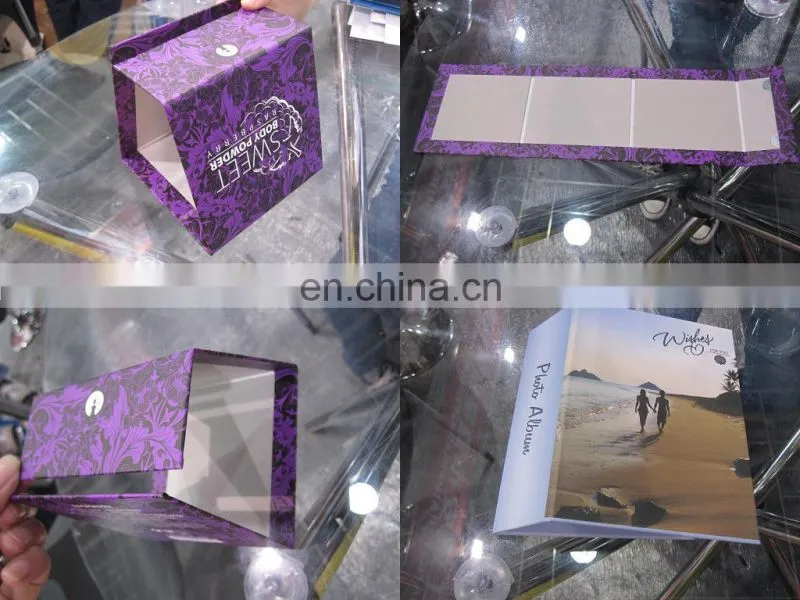

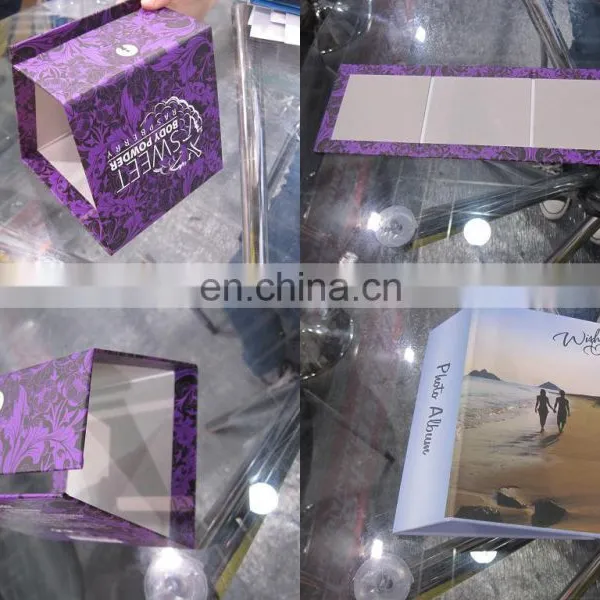

5.Sample Pictures:
6. Machine Package Pictures:
We are specializing in making hardcover,paper bag making production line, including paper
bag making machine, flexo printing machine, rope making machine and handling making machine etc.
We have both paper bag making machine with roll feeder and sheet feeder.

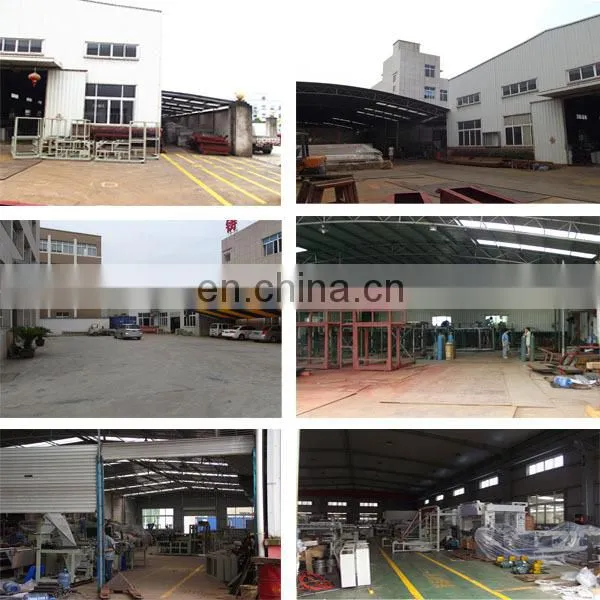

1. Factory Show:
2. Certificates:
4. Contact Information:
Contact Person: Tracy Wu Skype:xiaohaimachine
Mobile:+86-137777712080 Tel:+86-577-256933332
Add:Shangwang Industrial, Ruian city, Zhejiang province, China
