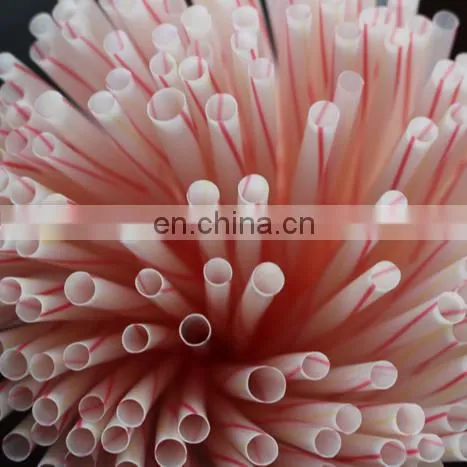

The serises machines can produce different kinds of straws such as one color ,double color and three color ,spiral strip straw ,medical pipe and so on.
The parameter of main screw is 50mm. Its a professional equipment of making different kinds of drinking straws.The machine can produce different specifications of tubes only to change the mold .
Range of application
Food industry : drinking straw , candy stick , coffee stick .etc
Other industrial fileds : pen refill , medical pipe , small diameter tube .etc
Main technological parameter
Capability: 25-35kg/h
Power supply:7.5KW 380V
Length of cooling container: 3400mm
Model | XG-1 | XG-2 | XG3 | |
| ||||
Main parts | Main parts are: extruder, cooling water tank, hauling cutting system, single color, bicolor or tricolor pipes can be realized.( vacuum shaping equipment, air compressor, chiller ,automatic hopper as optional ) | |||
Power supply | Main screw | 380v ,3phase,50hz,7.5kw(VFD) | ||
Sub-screw | / | 0.75kw | 0.75×2kw | |
Hauling motor | 0.75kw(VFD)x1 | |||
Cutting motor | 0.75kw(VFD)x1 | |||
Temperature Controller | 5sets | 8sets | 11sets | |
Automatic Counting Device | 1set | 1set | 1set | |
Way of Hauling | By rubber roller | |||
Way of cutting | Rotatory cutting | |||
Cooling water tank | Usually 3.4m, can be adjusted. | |||
Option | Vacuum pump (0.75kw) | Air compressor (1.5 kw) | ||
| Chiller( 5HP) | Automatic Hopper with dry | ||
| Straw gather equipment |
| ||
Specification of Pipe | Material | PP PE etc. | ||
Diameter | 2mm~14mm | |||
Length | Customizable | |||
Speed | 600~1500pcs/min | |||
Color | Single | Two | Three | |
Straight or spiral strips | √ | √ | √ | |
Cutting End | 90°/90°,90°/45°,90°/60°,45°/45°,60°/60 | |||
Machine dimension L×W×H | 8m×1m×1.7mm | 8m×1.5m×1.7m | 8m×2m×1.7m | |
Weight of equipment | 1.5T | 1.7T | 2T | |
