Label Printing Machine With Corona, 5 IR Dryers , Hot Air, Lamination, Die Cutter, Matrix Remover, Slitter

Label Printing Machine With Corona, 5 IR Dryers , Hot Air, Lamination, Die Cutter, Matrix Remover, Slitter thumbnail-1
Label Printing Machine With Corona, 5 IR Dryers , Hot Air, Lamination, Die Cutter, Matrix Remover, Slitter photo-1
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
XH
Place of Origin:
Zhejiang, China
Model Number:
RY
Contact Supplier Request Quote Chat Now
Wenzhou Xiaohai Import And Export Co., Ltd
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name XH
Place of Origin Zhejiang, China
Model Number RY
After-sales Service Provided Engineers available to service machinery overseas
Condition New

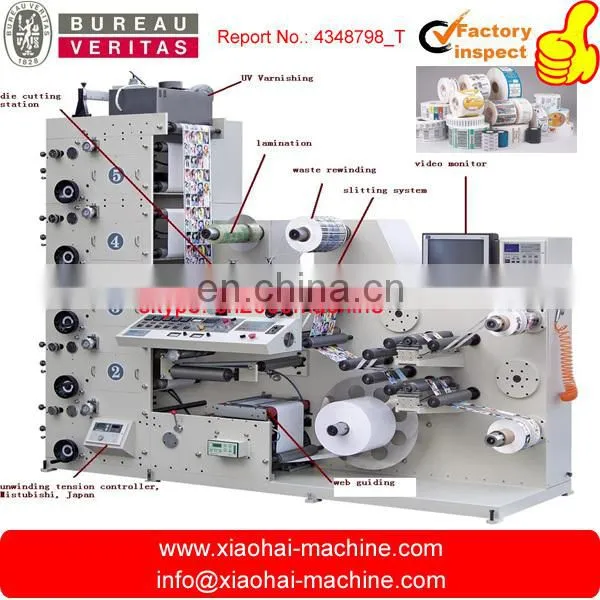

 UV  LABEL FLEXO PRINTING MACHINE   5 colours, with corona, 5 IR dryers,  1 UV dryer, Hot Air dryer, lamination, die cutter, matrix remover, slitter



NEW TYPE: one machine finish printing,die cutting,sliting in one process

label printing machine with corona, 5 IR dryers , Hot Air, lamination, die cutter, matrix remover, slitterlabel printing machine with corona, 5 IR dryers , Hot Air, lamination, die cutter, matrix remover, slitter



Usage:
1.It is used for printing various kinds of label with samll or middle or large order quanity printing service.
Also it is an ideal printing machine for the commercial bill,card paper,high grade adhesive tape trademark.

2.Performance and Features:
1. The main motor adopts inverters.
2. Unwinder and rewinder are controlled by magnetic powder brake and clutch(Japanese Mitsbish auto tension controller).
3. Unwinder system is controlled by auto-rectify sensor.
4. The machine adopts high quality ceramic anilox roller which is with long life and wear resisting and corrosion resistance.
5. The prining unit can register in 360 degrees.Each printing unit can independently gear and loosen,so other printing units can continue do printing.
6. The printing units are all equipped with a group of infrared dryers respectively .
7. Each IR dryer device of printing unit can interchange of UV dryer device.
8.The unwinder and rewinder all are with air shafts..
9. The inking roller can automatically fall off at stoppage and transfer at low speed in order to keep the ink from being dry and solid.
10. The roll feeding, printing, polising, auto infrared drying, lainating and rolling can be processed in one processing. It is characterized by wide application, non-population of printing ink and fast drying, quick printing. So it is an ideal printing machine for the commercial bill to print high-Gradded free adhesive trademark.



Specification:



Model No. RY-320 RY-450
Colors 4-6colors 4-6colors
Web maximum width 320mm 450mm
Max printing width  310mm 440mm
Printing length 175-320mm 175-320mm
Max printing speed 10-60m/ min 10-60m/ min
Unwinder diameter  600mm 600mm
Rewinder diameter

550mm

550mm
Machine weight 2000kg 2300kg
Machine dimension 3000x1500x3000mm 3000x1700x3000mm





Remark:The machine also can be equipped with UV,just inform us how many UV you want.Also you can let us your requirement on the machine,we will quote you on your demands.



label printing machinery/label(logo) flexo printing machinery/stack type flexographic printing machinery



Related Machines

Sticker Label Production Line:

  1. 1.  Sticker Label Flexo printing machine
  2. 2.  Label Die cutting machine to be sheet or to be roll Flat bed
  3. 3.   Rotary Label Die Cutting Machine
  4. 4.  Label roll to roll slitting and rewinding machine
  5. 5.  Label Slitting and rewinding machine with die cut funcation
  6. 6.  Label Inspection Machine
  7. 5.  Flexo Plate Making Machine For Printing Machine
  8. 6.  Flexo Cylinder Plate Mounter Machine
  9. 7.  Anilox Roller Ultrasonic Cleaning Machine
  10. 10.  Label adhesive Coating Machine
  11. 11. IML Label Die Cutting Machine
  12. 12. PS Label Printing Machine
