2016 HAS VIDEO UV IR Die Cutting,Cold Stamping Flexo Adhesive Label Sticker Printing Machines
- Ningbo/Shanghai
- T/T Credit Card
You May Like
-
HAS VIDEO In Mold IML Label Die Cutting Machine
-
New Type 4 Color Flexo Thermal Paper Roll Printing Machine
-
HAS Video Sticker Label Die Cutting Machine from Roll to Sheet or to Roll with Hot Stamping,hole Puncher
-
2 Colors Adhesive Label Flexo Printing Press
-
ZBS-320G 5 Colors Sticker Label Flexo Printing Machine With Three Die Cutting Station,With Sheet Conveyor
-
HAS VIDEO Adhesive transparent PVC PE BOPP PET IR UV flexo sticker label printing machine ( With die cutting and slitting)
Product Details
| Brand Name | Xiaohai | Place of Origin | Zhejiang, China | |
| Model Number | ZBS-320G Flexographic printing machine for printing adhesive labels | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Wooden case/Seaworthy package for Flexographic printing machine for printing adhesive labels.
Product Description
UV IR Flexo Adhesive Label Sticker Printing Machines With Die Cutting,Cold Stamping

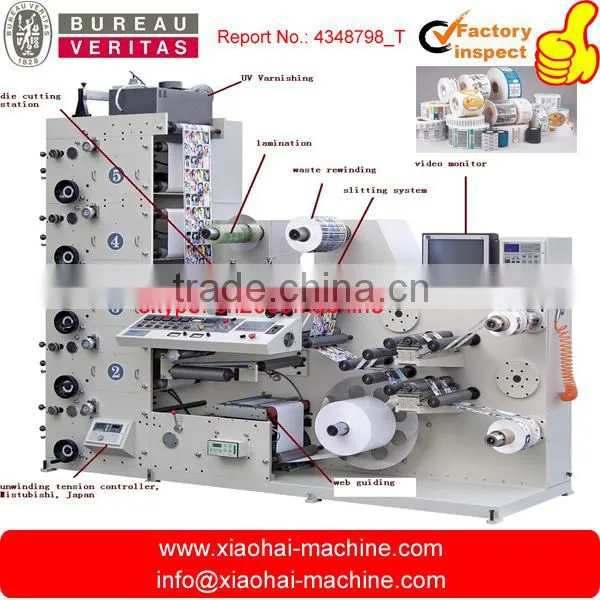

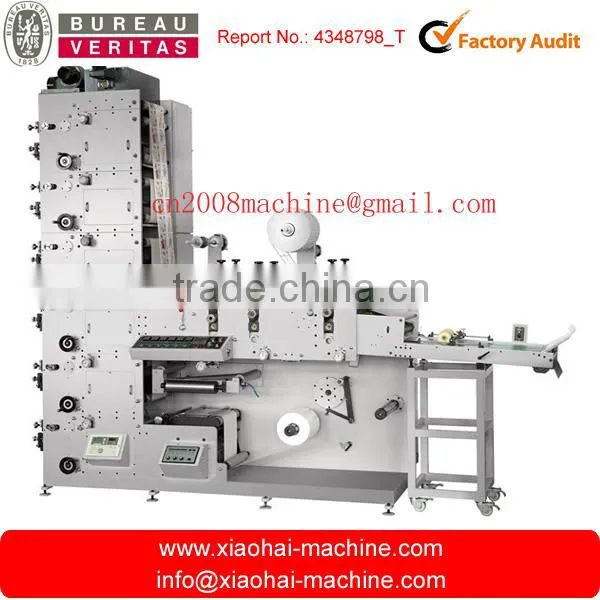

Description of uv flexo adhesive sticker label printing machine
1,Adopt the ceramic anilox cylinder to transfer the ink,
2,Each printing unit adots 360 ° plate-adjustment.
3,Three die-cutting stations, the first and second die-cutting station can do double sides,working, the third die-cutting station can be used as sheeter.
4,computerized web-guiding system is installed in the front of printing unit,it ensures the material always in the right position.(standard configuration).
5,After sheeting in the third die-cutting station, conveyor belt can output the products orderly.
6,unwinding and rewinding tension are auto-controlled by magnetic powder.two rewinders is possible in this machine.
7,video inspecting system is an option ,it can watch the printing quality when in high speed.
8,The ik rollers will be separated from the printing roller, and keep running when the macine stops.
9,Main machine inverter is imported.
10,The machine can finish material-feeding,printing, varmshing, drying, laminating, die-cutting,rewinding and sheeter in a lump. it is an ideal machine for printing note and top-grade adhesive label.
2.Opitioanl parts:

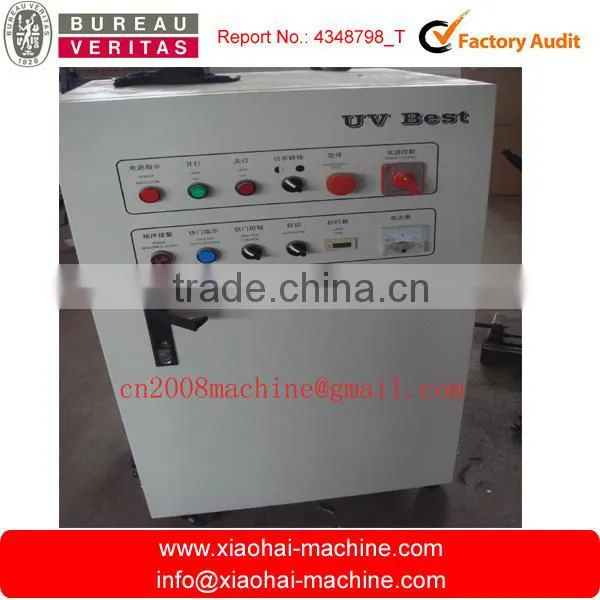

1) UV dryer for each printing station or only one on last station
2) Video Camera for printng inspection
3)cold foil stamping funcation on last station
3. Main technical specification:
Model | ZBS320B | ZBS450B |
Printing speed | 50m/minute | 50m/min |
Printing color number | 4 color or 5 color | 4 color or 5 color |
Max width of paper | 320mm | 460mm |
Max printing wide | 310mm | 450mm |
Max unwinding diameter | 600mm | 600mm |
Max rewinding diameter | 600mm | 600mm |
Printing length | 175-320mm | 175-320mm |
Thickness of flexo plate | 1.7mm | 1.7mm |
Precision of chromatography | ±0.1mm | ±0.15mm |
Overall dimension | 2(L)×1.1(W)×2.1(H)m | 2(L)×1.25(W)×2.1(H)m |
Weight | about 2000kg | about 2200kg |
Sticker Label Production Line:
- 1. Sticker Label Flexo printing machine
- 2. Label Die cutting machine to be sheet or to be roll Flat bed
- 3. Rotary Label Die Cutting Machine
- 4. Label roll to roll slitting and rewinding machine
- 5. Label Slitting and rewinding machine with die cut funcation
- 6. Label Inspection Machine
- 5. Flexo Plate Making Machine For Printing Machine
- 6. Flexo Cylinder Plate Mounter Machine
- 7. Anilox Roller Ultrasonic Cleaning Machine
- 10. Label adhesive Coating Machine
- 11. IML Label Die Cutting Machine
- 12. PS Label Printing Machine
