yogurt plastic cups with lid making machine
- 1000 Set / Sets per Month
- T/T Credit Card
- HAS VIDEO cup lid thermoforming machine for Paper Cup,Plastic Cup,All kinds of Cover
- machine manufacturing plastic cup
- Self-Adhesive Tape Flat Labeling Machine
- Automatic Double Sides Adhesive sticker Labeling Machine
- High Speed Slitting Machine for Sticker label With Double Rewinder Shaft,easy change
- ZBS-320 Automatic 5 colors label flexo printing machine
Product Details
Brand Name: | XIAO HAI | Place of Origin: | Zhejiang, China | Model Number: | DPP- 400F yogurt plastic cups with lid making machine |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description

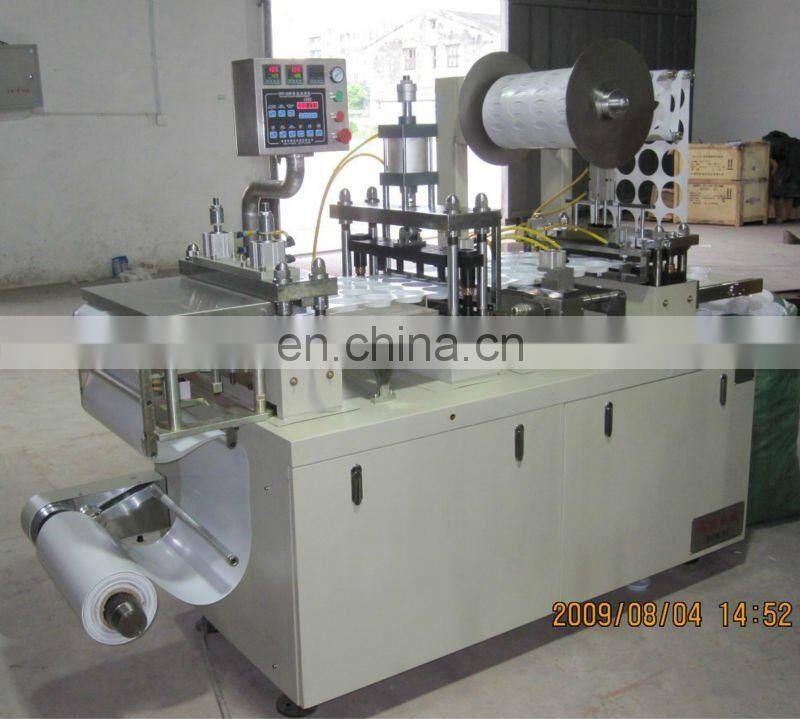

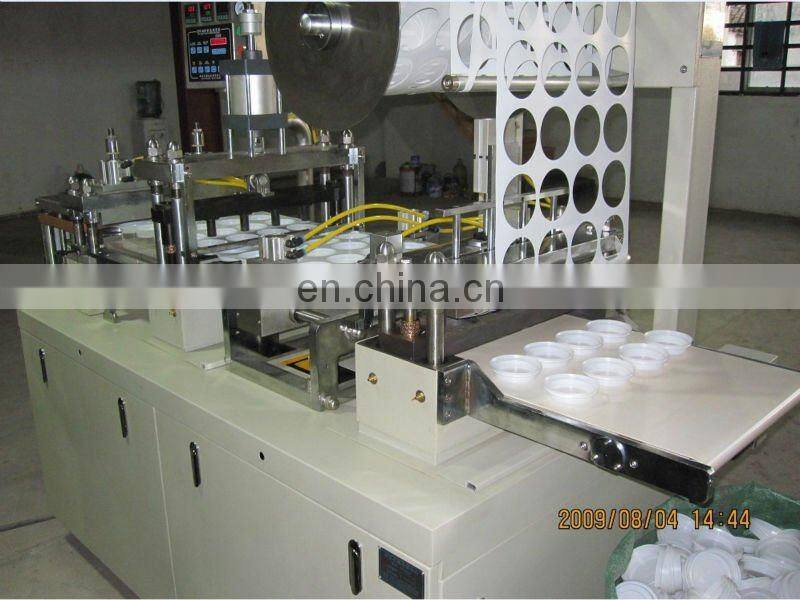

yogurt plastic cups with lid making machine :

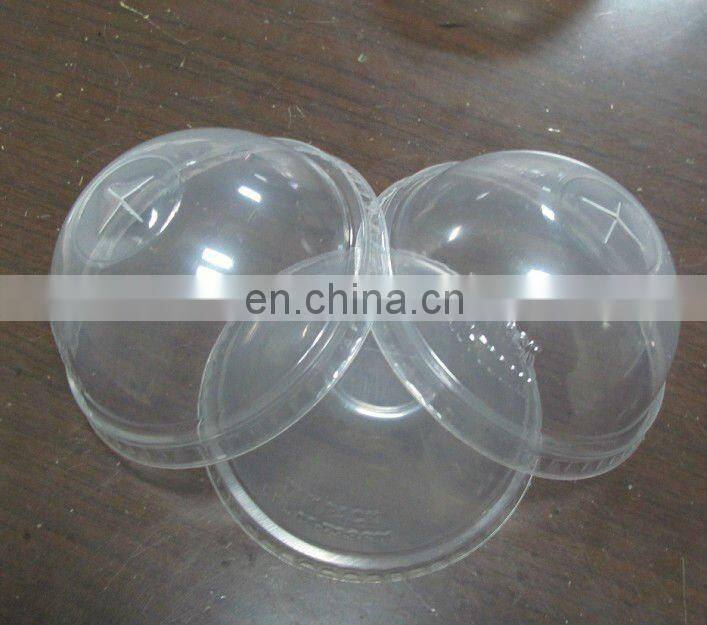

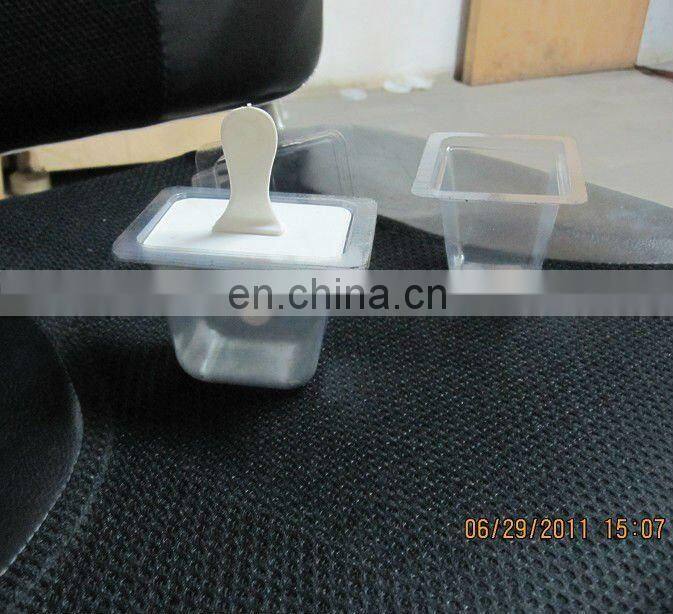

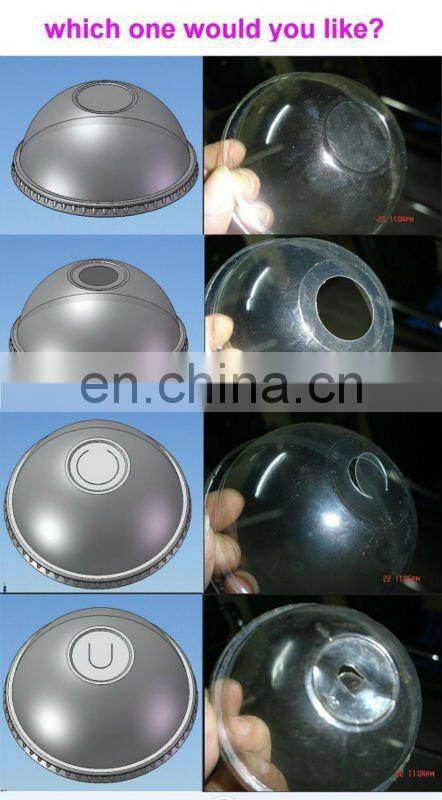

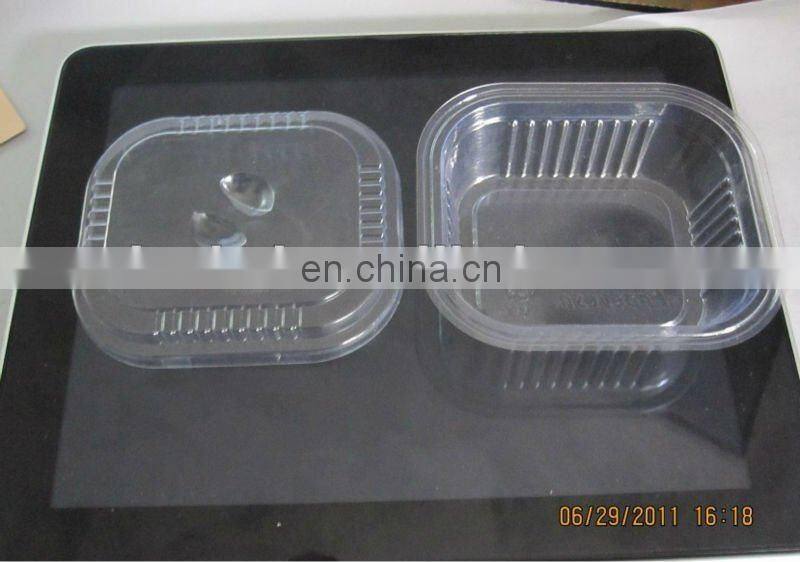

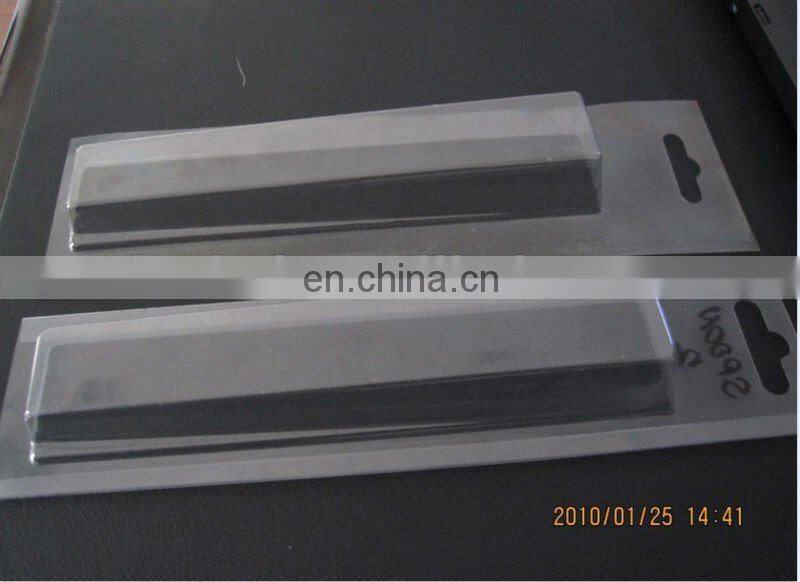

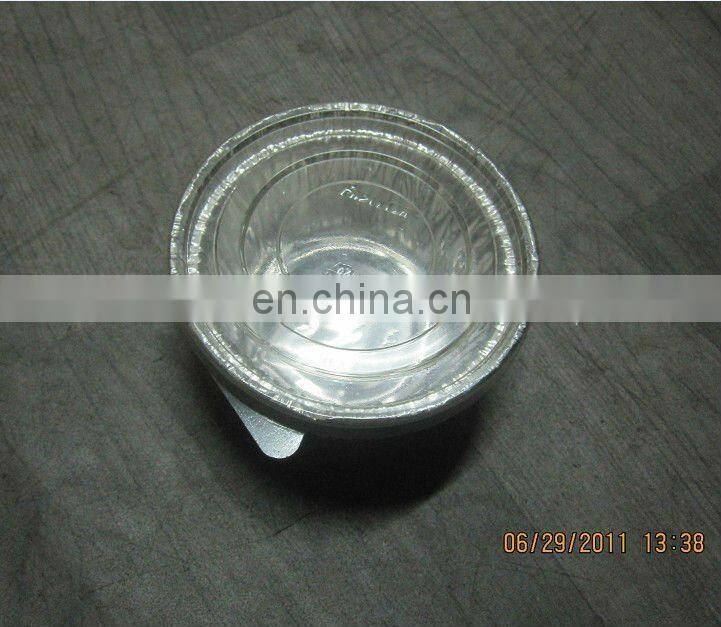

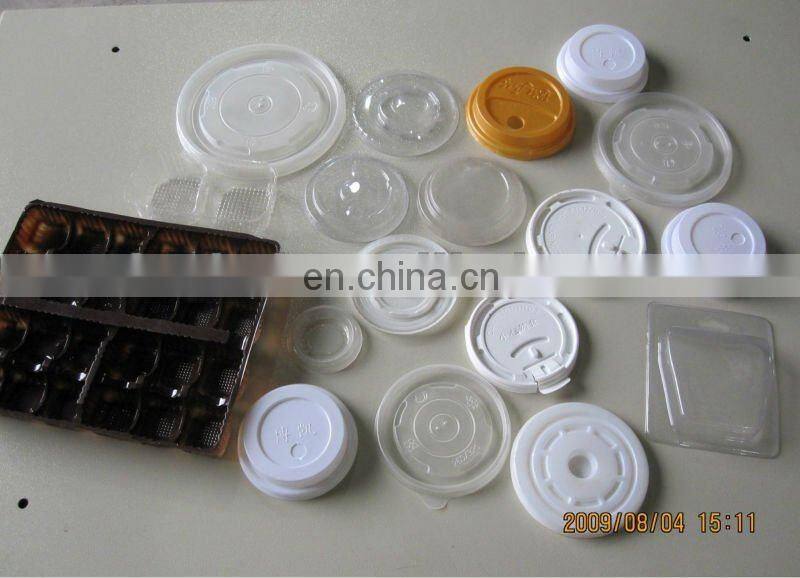

Applicable Object: PS/PVC/PET Plastic cup lid,Hardware tray,food tray,pharmaceutical tray etc.
Technical Parameters:
Max Forimng Area | 400×170 mm |
Max Forimng Depth | 30 mm |
The Power of Heater | 1.5 KW*2 pcs |
Motor Power | 1.5 KW |
Total Power of Electric Source | 380V 50Hz 4.6 KW |
Punching Frequency (output) | 10 -32 times/min (according to your sample's size) |
Mould Cooling | Tap water or circulating water 60 L/S |
Air Consumptions | >0.3 m³/min |
Air Pressure | 0.4—0.7 MPa |
Applicable Material | (0.15—0.5)× 400 mm(Width) |
Dimensions | 2700×830×1450 mm |
Weight | 800 Kg |
we also have PLASTIC CUP AND CONTAINER production line:
1.MX-700L plastic sheet extruder:use to produce PP,PS sheet from raw material.
2.CK660-B thermoforming machine:feeding PP,PS sheet in this machine to produce cups,plates and other plastic container.
3.curling machine:curling the edge of cup. It’s according to your sample.
4.cup stacking machine:use to stack the cup automatically. also you can choose worker to stack the cups.
5. F650 grinder/crusher: it is used for recycle the waste sheet.
6.Mixer: mixing the new material and the recycle material
oling tower: the sheet extruder MX-700L and MX660-B thermoforming machine running need the cool water for working.
8. Plastic cup lid making machine: use to produce cup lid.
9.cup printing machine:use to print picture/design on the cup.
10. counting and packing machine:use to counting and packing the cup in plastic bag. also you can choose worker to count and pack the cups.
11. Air compressor:extruder and thermoforming machine and stacking machine running need the air for working.
products:
Company Profile
We are a Big Group specializing in making all kinds of printing and plastic machines, such as plastic bag whole line machines (film blowing machines, flexo and gravure printing machines, lamination machines, all kinds of bag making machines), disposable glove making machines, plastic cup and paper cup making whole line machines, drink straw making whole line machines, label whole line making machines, and paper cutting whole line machines.
