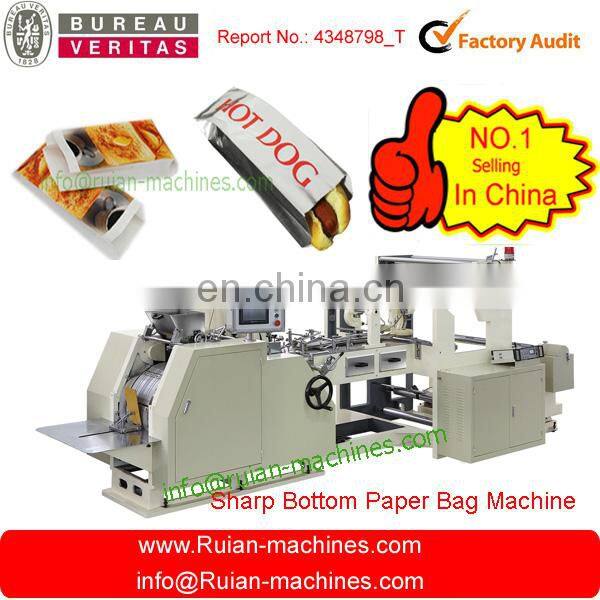

Fully Automatic Paper Bag Making Machine for KFC Food
1. Features:
Paper Bag Making Machine can make paper bags in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag.
It is an ideal machine for producing Sharp Bottom food bags like bread bags, KFC bags and McDonald's bags etc.
2. Advantages:
1)Suited for 40-80gsm paper.
2)Controls bag length through the human-machine interface.
3)PLC system for calculating parameters.
4)Equipped with an accurate photocell system.
5) Color mark error automatic alarming and stopping system
3.Technical Parameters:
Paper Weight | 40-80g/m2 |
Bag Length | 160-420mm |
Bag Width | 70-260mm |
The width of paper roll | 260-720mm |
Speed | 100-400pcs/min |
Total Power | 10kw |
Power Voltage | 380v,50/60 HZ, 3 phases |
Total Weight | 2500kg |
Machine Dimension(L*W*H) | 4000*2100*1900mm |
4.Configuration Brand:
Name andSpecification | Quantity | Brand, Country |
Servo Motor | two sets | YASKAWA, Janpan |
PLC | 1pc | Taiwan |
Touch Screen | 1pc | Taiwan |
Photo-cell | 100-400pcs/min | Sick, Germany |
Web Edge Control(EPC) | 1pc | China |
Frequency Converter(Inverter) | 1pc | China |
