White Paper Bag Sealing Machine With Side Gusset
1. Features:
Paper Bag Making Machine can make paper bags in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag.
It is an ideal machine for producing Sharp Bottom food bags like bread bags, KFC bags and McDonald's bags etc.
2. Advantages:
1)Suited for 40-80gsm paper.
2)Controls bag length through the human-machine interface.
3)PLC system for calculating parameters.
4)Equipped with an accurate photocell system.
5) Color mark error automatic alarming and stopping system
3.Technical Parameters:
Paper Weight |
40-80g/m2 |
Bag Length |
160-420mm |
Bag Width |
70-260mm |
The width of paper roll |
260-720mm |
Speed |
100-400pcs/min |
Total Power |
10kw |
Power Voltage |
380v,50/60 HZ, 3 phases |
Total Weight |
2500kg |
Machine Dimension(L*W*H) |
4000*2100*1900mm |
4.Configuration Brand:
Name andSpecification |
Quantity |
Brand, Country |
Servo Motor |
two sets |
YASKAWA, Janpan |
PLC |
1pc |
Taiwan |
Touch Screen |
1pc |
Taiwan |
Photo-cell |
100-400pcs/min |
Sick, Germany |
Web Edge Control(EPC) |
1pc |
China |
Frequency Converter(Inverter) |
1pc |
China |

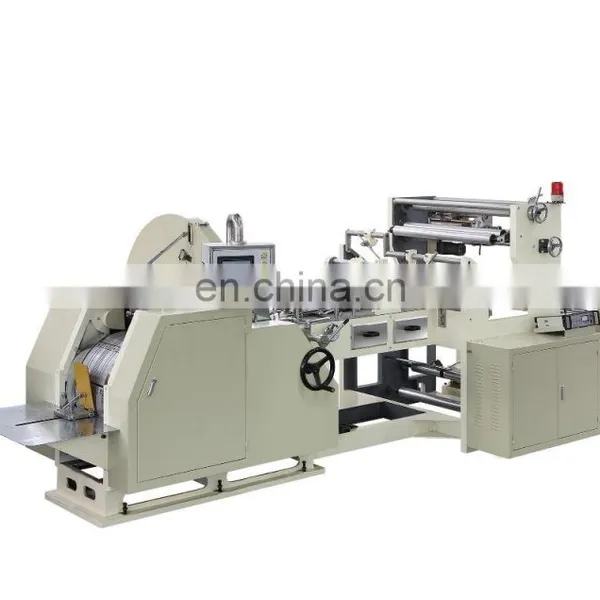

5.Machine Pictures:
6. Sample Pictures:
7. Machine Delivery Pictures:
We are specializing in making paper bag making production line, including paper bag making machine, flexo printing machine, rope making machine and handling making machine etc.
We have both paper bag making machine with roll feeder and sheet feeder.
1.Company Show
2. Certificates
3. Advantages&Service
1)We have several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.
2)Machines with good quality in one year, life-long maintenance.
3)We have many machines can be monitored via the Internet, solve customer requirements in
a timely manner.
4)We have several senior,continuous innovation and reform, in order to ensure the quality of
mechanical stability.
5)Undertake various non-standard machinery, solve the customers' requirements.
4. Contact Information:
Contact Person: Tracy Wu
Mobile:+86-137777712080 Tel:+86-577-256933332
Add:Shangwang Industrial, Ruian city, Zhejiang province, China
Web:www.xiaohai-machin
