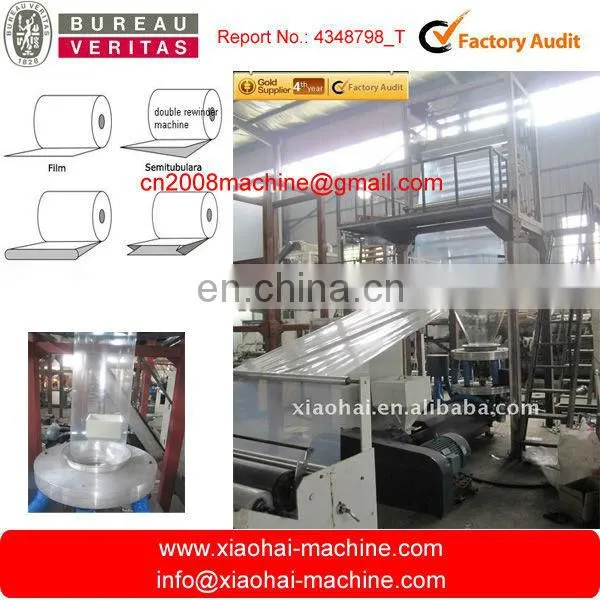

NEW PE FILM Recycled Plastic Extruder

NEW PE FILM Recycled Plastic Extruder thumbnail-1
NEW PE FILM Recycled Plastic Extruder photo-1
US$ 5,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Xiaohai
Place of Origin:
Zhejiang, China
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Contact Supplier Request Quote Chat Now
Wenzhou Xiaohai Import And Export Co., Ltd
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Xiaohai
Place of Origin Zhejiang, China
Application Film
Condition New
Plastic Processed PE
Screw Design Single-screw

PE FILM recycled plastic extruder



Usage:
1.It is used for blowing the plastic film of low density polyethylene(LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE) etc.

2.The film is widely used for packing bag,such as T-shirt bag,shopping bag,clothing bag,garbage bag and agriculture covering film etc



Specification:

Model No.

SJ-B50

SJ-B55

SJ-B60

Screw Diameter

50mm

55mm

60mm

Screw Ratio(L/D)

28:1

28:1

28:1

Max.Folding Width of Film

600mm

800mm

1000mm

Single side thickness of Film

0.008-0.10mm

0.008-0.10mm

0.008-0.10mm

Power of Main Motor

11KW

15KW

18.5KW

Output

40kg/h

50kg/h

60kg/h

Total Power

22Kw

26Kw

30Kw

Weight of Machine

2000kg

2300kg

3000kg

Dimension(mm)

5700x1800x3600

6000x2000x4000

6500x2200x4500



Model No.

SJ-B65

SJ-B80

SJ-B100

Screw Diameter

65mm

80mm

100mm

Screw Ratio(L/D)

28:1

28:1

28:1

Max.Folding Width of Film

1200mm

1500mm

2000mm

Single Side Thickness of Film

0.008-0.10mm

0.008-0.10mm

0.008-0.10mm

Power of Main Motor

22KW

30KW

45KW

Output

70kg/h

100kg/h

160kg/h

Total Power

42Kw

56Kw

88Kw

Weight of Machine

3800kg

4600kg

60000kg

Dimension(mm)

6800x2400x4800

7000x2700x5500

8000x3200x7600











Model No.

SJ-B100

SJ-B110

SJ-B120

Screw Diameter

90mm

110mm

120mm

Screw Ratio(L/D)

28:1

28:1

28:1

Max.Folding Width of Film

2000mm

2500mm

3000mm

Single Side Thickness of Film

0.02-0.10mm

0.02-0.10mm

0.02-0.10mm

Power of Main Motor

55KW

75KW

90KW

Output

160kg/h

190kg/h

220kg/h

Total Power

88Kw

106Kw

126Kw

Weight of Machine

60000kg

9000kg

12000kg

Dimension(mm)

8000x3200x7600

9000x3700x8700

1000x4200x9800
