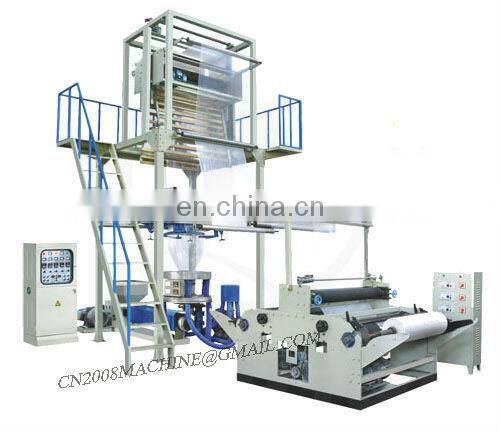

Has Video Rotary Head Double Rewinder Polyethylene Film Blowing Machine
- NINGBO
- T/T Credit Card
You May Like
Product Details
| Brand Name | XIAOHAI | Place of Origin | Zhejiang, China | |
| Model Number | SJ | |||
| Condition | New |

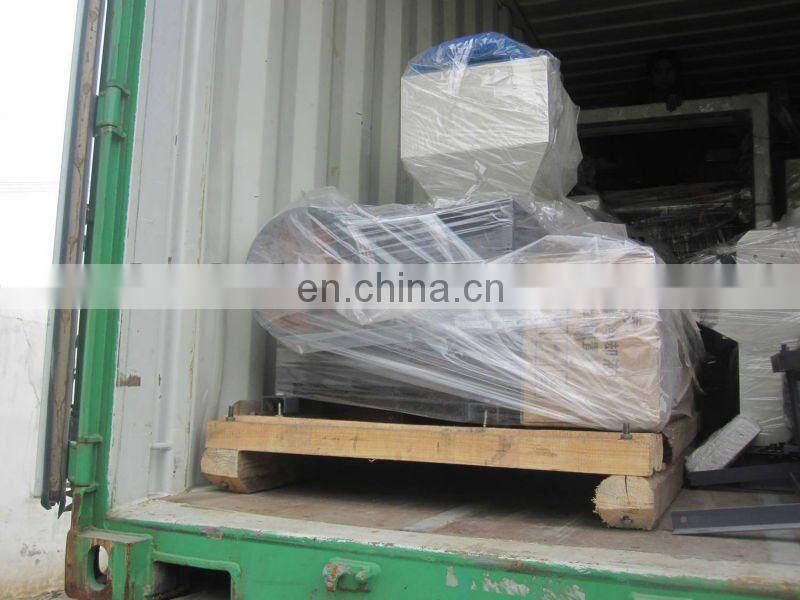

wooden packing
Product Description
Usage:1.It is used for blowing the various plastic film of low density polyethylene(LDPE) and high density polythylene(HDPE) colour striped plastic film, etc.
2.It is widely used for T-shirt bag,packing food, fruit,garments, textile, and industrial products.
Specification:
SJ-A Series is the machines with single rewinder,without rotary head
SJ-B Series is the machines with rewinder and rotary head.
Specification:
Usage:
1.It is used for blowing the plastic film of low density polyethylene(LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE) etc.
2.The film is widely used for packing bag,such as T-shirt bag,shopping bag,clothing bag,garbage bag and agriculture covering film etc
Specification:
Model No. | SJ-A50 | SJ-A55 | SJ-A60 |
Screw Diameter | 50mm | 55mm | 60mm |
Screw Ratio(L/D) | 28:1 | 28:1 | 28:1 |
Max.Folding Width of Film | 600mm | 800mm | 1000mm |
Single Side Thickness of Film | 0.008-0.08mm | 0.008-0.08mm | 0.008-0.08mm |
Power of Main Motor | 11KW | 15KW | 18.5KW |
Output | 30kg/h | 40kg/h | 50kg/h |
Total Power | 18Kw | 22Kw | 26Kw |
Weight of Machine | 1500kg | 1800kg | 2100kg |
Dimension(mm) | 4800x1800x3600 | 5000x2000x4000 | 5200x2200x4400 |
Model No. | SJ-B50 | SJ-B55 | SJ-B60 |
Screw Diameter | 50mm | 55mm | 60mm |
Screw Ratio(L/D) | 28:1 | 28:1 | 28:1 |
Max.Folding Width of Film | 600mm | 800mm | 1000mm |
Single side thickness of Film | 0.008-0.08mm | 0.008-0.08mm | 0.008-0.08mm |
Power of Main Motor | 11KW | 15KW | 18.5KW |
Output | 40kg/h | 50kg/h | 60kg/h |
Total Power | 22Kw | 26Kw | 30Kw |
Weight of Machine | 2000kg | 2300kg | 3000kg |
Dimension(mm) | 5700x1800x3600 | 6000x2000x4000 | 6500x2200x4500 |
we also have more high output machine,please tell me your request,so we can do the best service for you.

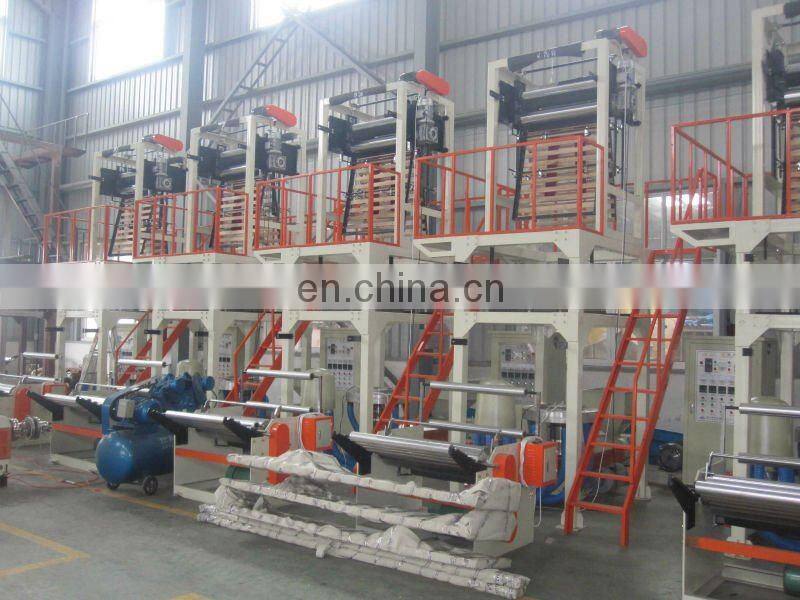

see the process:

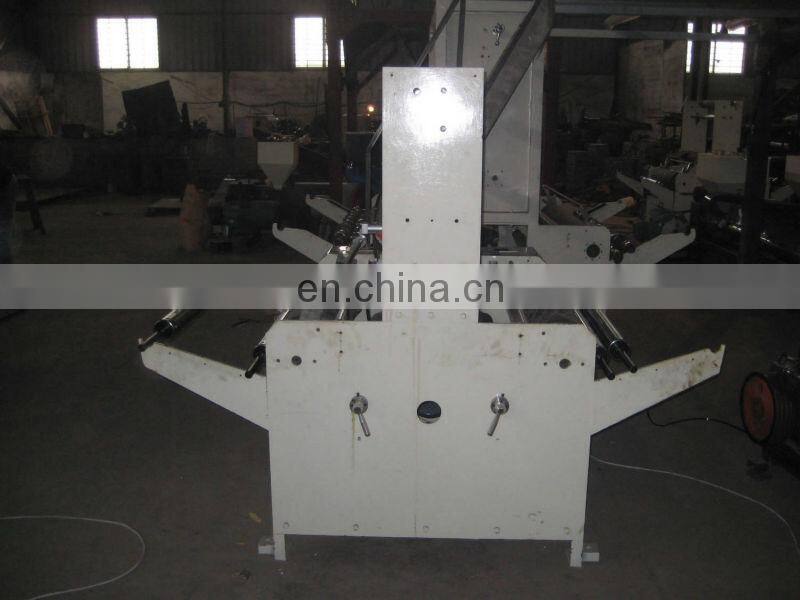

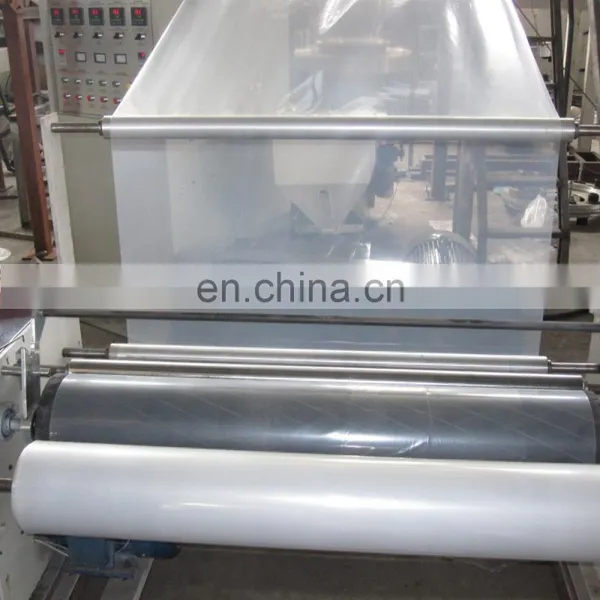

the rewinder set:

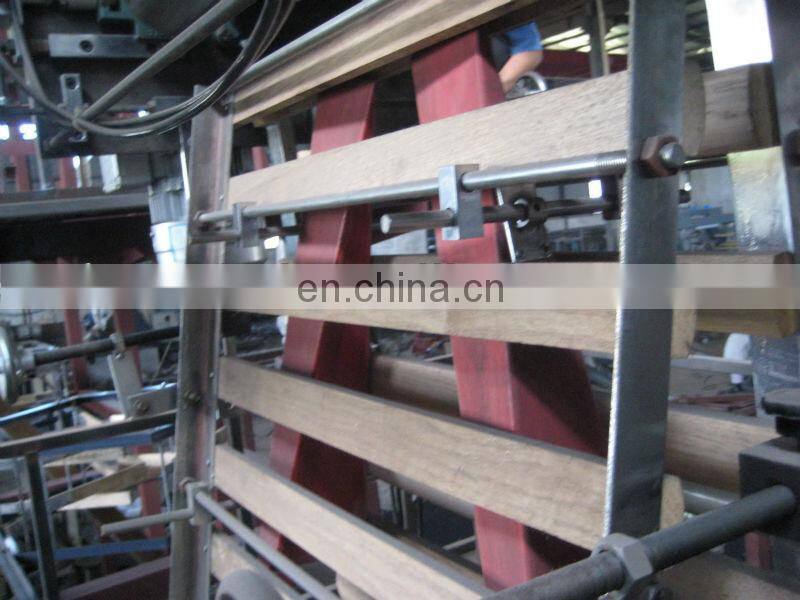

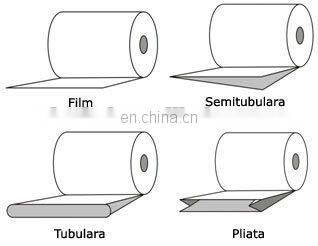

This is the gusset to make the edge fold

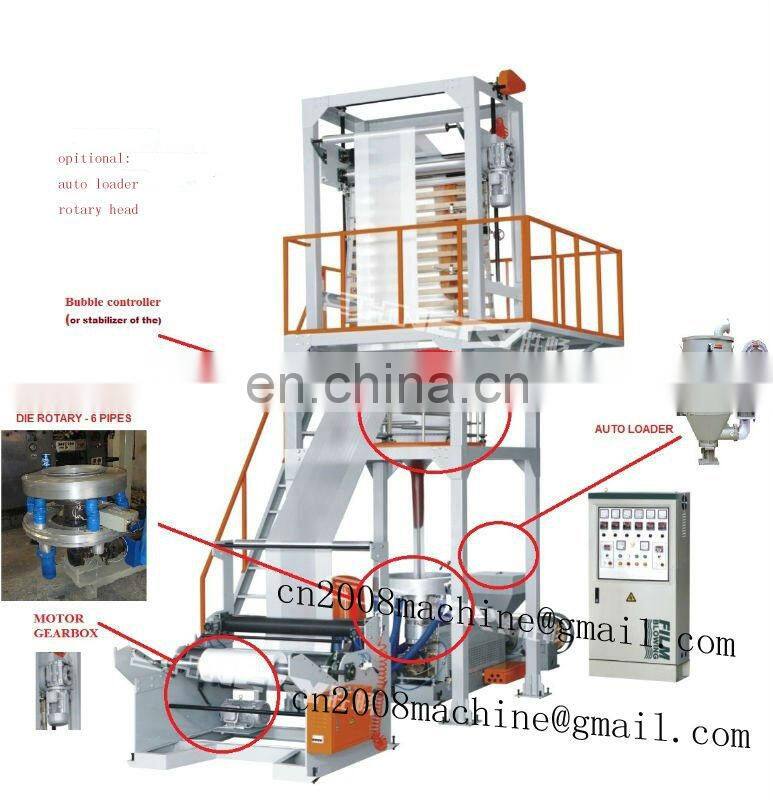

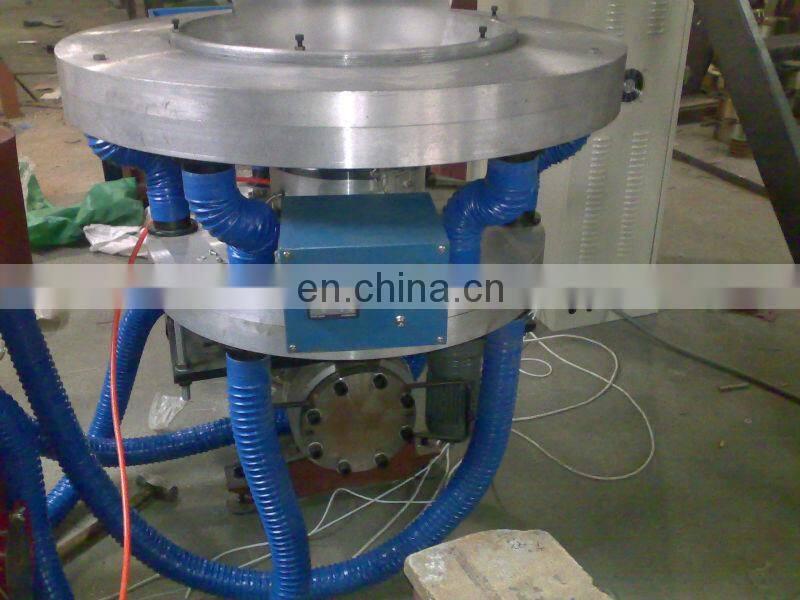

the rotary head:
Company Profile
We are a Big Group specializing in making all kinds of printing and plastic machines, such as plastic bag whole line machines (film blowing machines, flexo and gravure printing machines, lamination machines, all kinds of bag making machines), disposable glove making machines, plastic cup and paper cup making whole line machines, drink straw making whole line machines, label whole line making machines, and paper cutting whole line machines.
