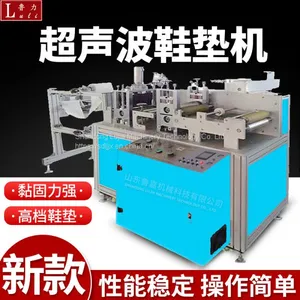

Help CenterAutomatic Ultrasonic Insole Machine Breathable Warm Cushion Machine Manufacturers Support Customization
Related Products
-
Automatic N95 Folding Mask Machine Butterfly Mask Machine Manufacturers Support CustomizationNegotiableMOQ: 1 Box -
Non-woven Disposable Sleeve Forming Machine Manufacturers Support CustomizationNegotiableMOQ: 1 Box
-
Supply 2020 New High-speed Plane Mask Machine Butterfly Mask Machine Manufacturers Support CustomizationNegotiableMOQ: 1 Box
-
Automatic Ultrasonic Insole Machine Breathable Warm Cushion Machine Manufacturers Support CustomizationNegotiableMOQ: 1 Box
-
Automatic HDPE Pipe Extrusion Machine With 90mm Screw DiameterNegotiableMOQ: 1 Set

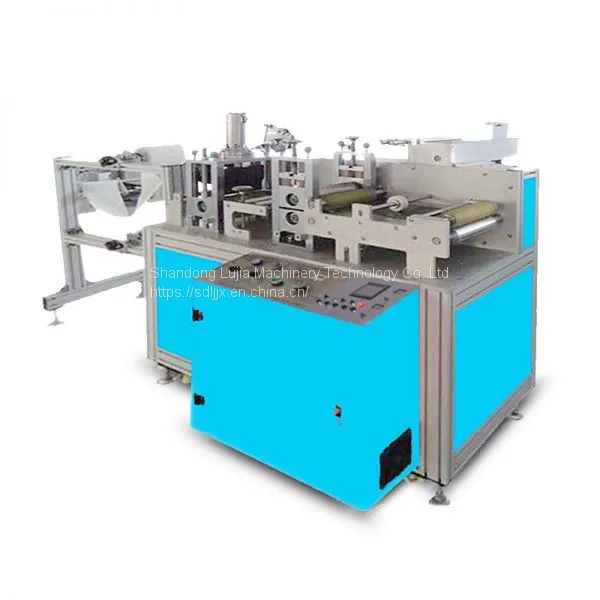

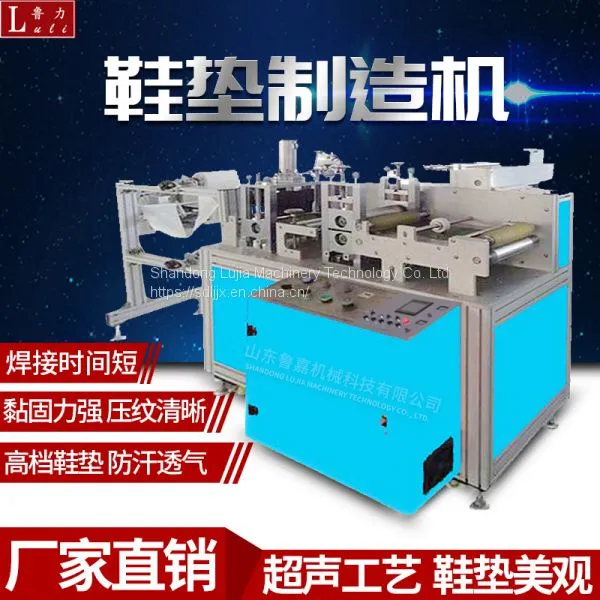

The characteristics of

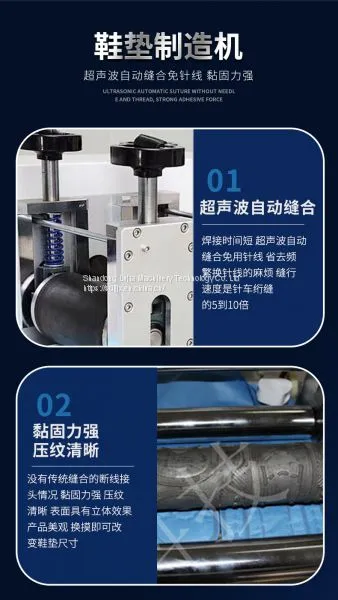

1. The welding time is short, and the ultrasonic automatic suture does not need needle and thread, which saves the trouble of changing the needle and thread frequently. The suture speed is 5 to 10 times faster than the quilting of the needle wheel.

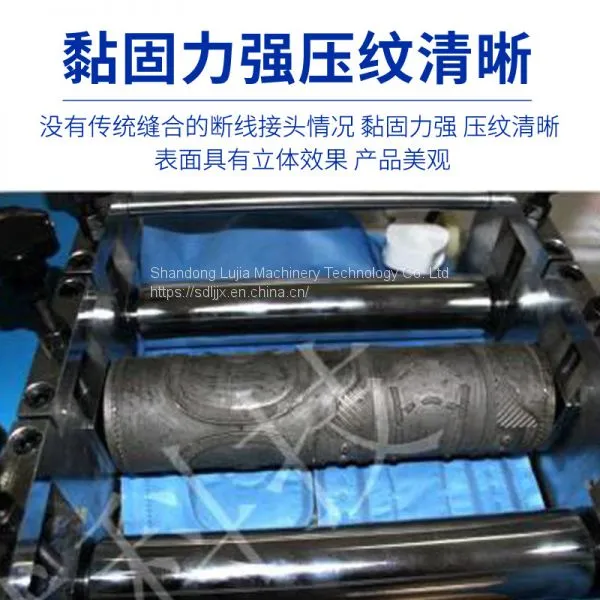

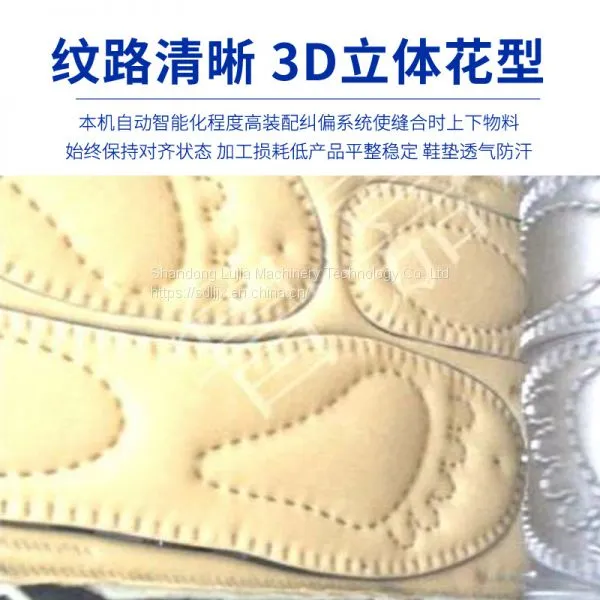

2. There is no broken thread joint with traditional stitching, strong adhesion, clear embedding, more three-dimensional effect on the surface, and more high-grade and beautiful products;

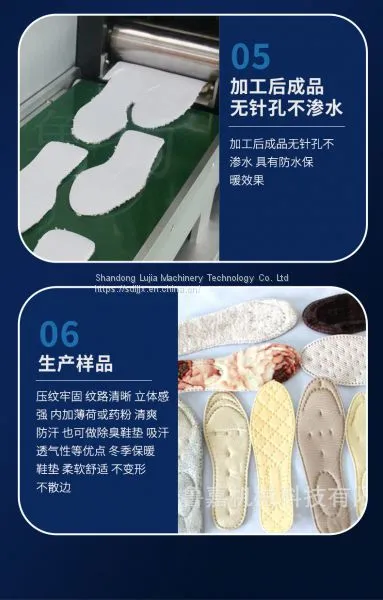

3. After processing, the finished product has no pinhole and no water seepage, more waterproof and heating effect;

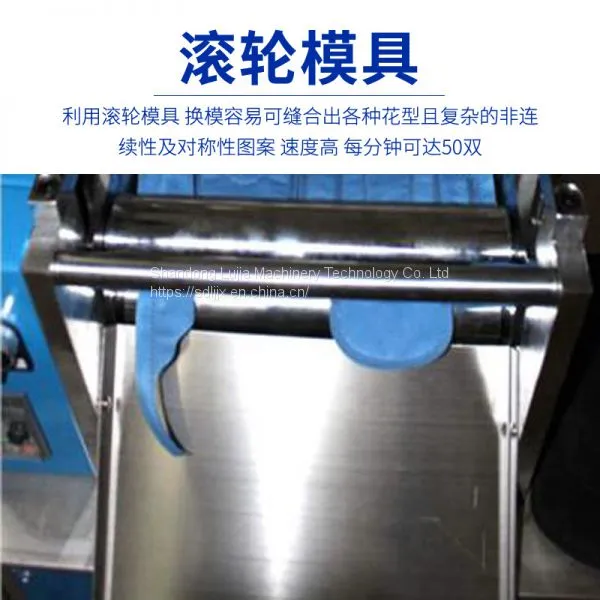

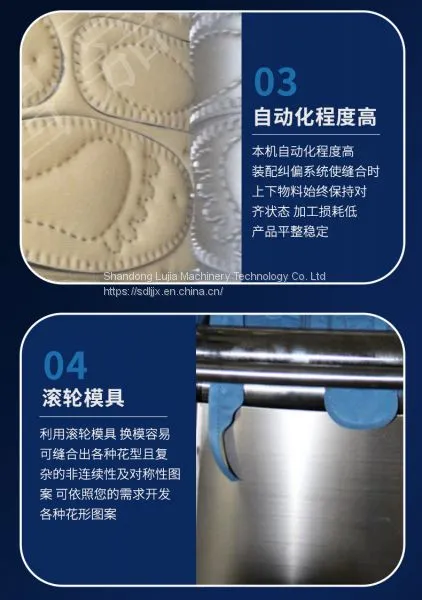

4. It is easy to change mold by using roller mold, which can sew out thousands of kinds of patterns and complex discontinuity and symmetry patterns, and can also develop various flower patterns according to customer requirements;
5. The machine has high automatic intelligence, and the assembly of the rectifying system makes the upper and lower materials always align when stitching. The processing loss is low, and the products are more smooth and stable
Insole machine using method
editor
The level can be adjusted between the pressure wheel and the flower wheel.
2 when the embossing is not balanced, loosen the eccentric lock screw on the left cover of the die stand first, and then rotate the eccentric wheel (clockwise, the flower wheel moves upward;Counterclockwise, on the contrary, lock the eccentric wheel, and repeat the above action until balance.
3 Adjust the pressure of the flower wheel according to the thickness of the stitching or knurling material.The thicker material pressure is adjusted more, and vice versa.
4 according to the need to fuse the material is different, the thickness is different, as well as the complexity of the flower wheel pattern.There are three factors affecting the printing effect :(1) the line speed of the flower wheel;(2) pressure of flower wheel;(3) Size of ultrasonic power.
5 when the speed of the flower wheel is low, the processing material receives ultrasonic energy for a longer time, and the contact time of the flower wheel and the steel die is longer, and it is easier to fuse.
6 when the pressure of the flower wheel is large, the processing material accepts the ultrasonic energy is large, and it is easy to fuse.(At the same time, the wear of the flower wheel set mold is also increased)
7 Under the premise of the same material and the same processing speed, the lower the pressure of the flower wheel, the better.(Small wear and tear, long equipment life)
