Tensile Testing Machine/Fabric Tensile Compression Bending Tearing Test/Universal Tensile Strength
US$ 2,999 - 3,099
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Better United
Place of Origin:
Hebei, China
Model Number:
BU-122 universal testing machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Custom Made TST-55 Variable Head Permeameter For Soil TestUS$ 80 - 120MOQ: 10 Sets -
Custom Made Dia.150x300mm Detachable Concrete Test Cylinder MouldsUS$ 32.9 - 41.9MOQ: 1 Set
-
Hot Selling Cement Blaine Air Permeability Apparatus, Blaine Fineness ApparatusUS$ 180 - 200MOQ: 1 Set
-
70.7cm Plastic Three Gang Test Cube Cement Mortar Concrete MouldUS$ 3.5 - 6.5MOQ: 1 Piece
-
Better Group Concrete Table Molds, Outdoor Concrete Table, Concrete Table VibratorUS$ 268 - 298MOQ: 1 Set
Brand Name
Better United
Place of Origin
Hebei, China
Model Number
BU-122 universal testing machine
Power
Hydraulic

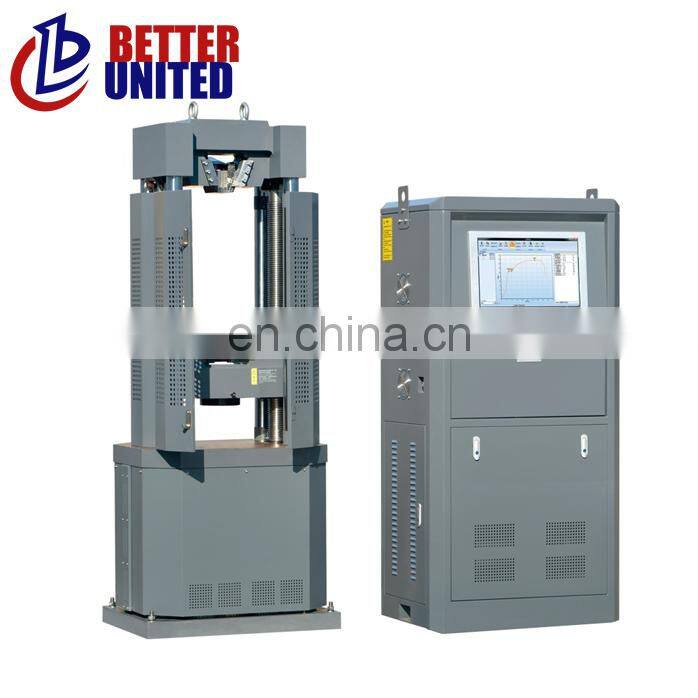

Tensile Testing Machine/Fabric Tensile Compression Bending Tearing Test/Universal Tensile Strength
| Model | WEW-100B | WE-300B | WE-600B | WE-1000B | WE-2000B |
| Max.Load(kN) | 100 | 300 | 600 | 1000 | 2000 |
| Precision class | class 1 | class 1 | class 1 | class 1 | class 1 |
| Max. distance between upper and lower Pressure Plate (mm) | 600mm | 650mm | 700mm | 700mm | 750mm |
| Thickness of flat specimen | 0-15mm | 0-15mm | 0-30mm | 0-40mm | 15-50 |
| Diameter of circular specimen | 6-22mm | 10-32mm | 13-40mm | 10-50mm | 20-60mm |
| The max.distance of upper and lower plate | 530mm | 550mm | 450mm | 430mm | 550mm |
| Distance between two pivot point for bending test | 30-300mm | 30-300mm | 30-300mm | 30-300mm | 50-300mm |
| Max. piston stroke | 150mm | 150mm | 200mm | 200mm | 200mm |
| Pump motor power | 0.75Kw | 0.75Kw | 1.5Kw | 1.5Kw | 1.5Kw |
| Testing range | 0-100kN | 0-300kN | 0-600kN | 0-1000kN | 0-2000kN |
| Total weight | 1.7T | 2.0T | 3.0T | 3.6T | 6.5T |
Our universal testing machine advantages
1.It adopts sensor force measurement,LCD screen display force value,adding speed,upper and lower yeild point and force-time curve.
2.It reads Intuitively with high precision,the curve can be automatically scaled with change of force and time.
3.It can be stored 1000 sample date and checked by serial number freely
4.With adding speed tracking,over range protection,power cut protection,real time clock ,embedded micro printer
5.Communication interface and microcomputer communication can be connected with local eare internet to realized remote output of testing date and curve.
