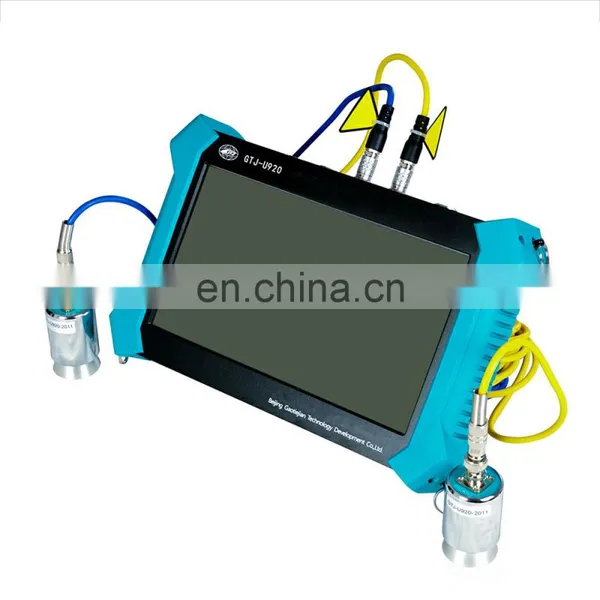

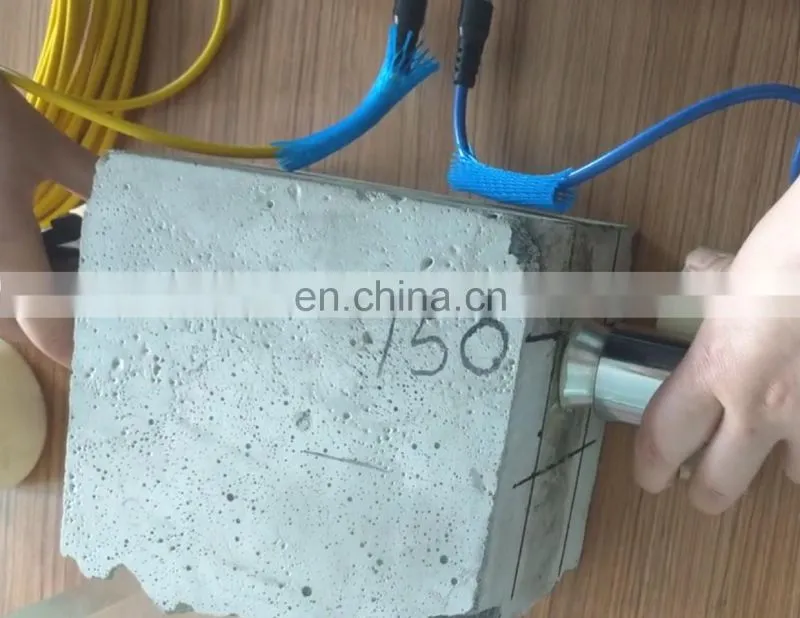

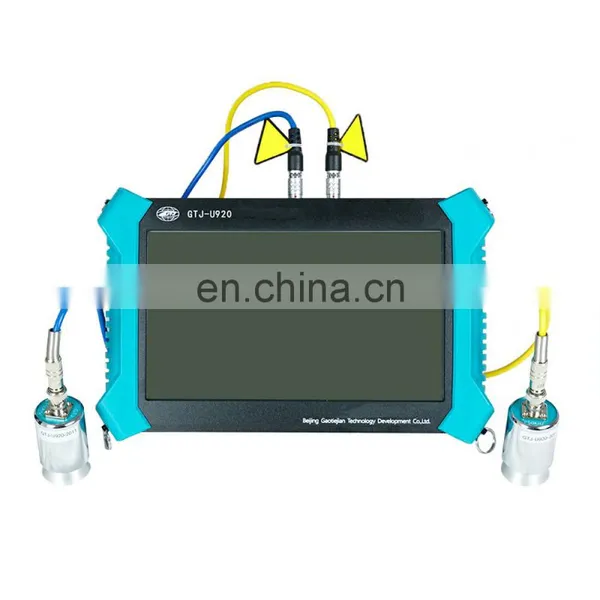

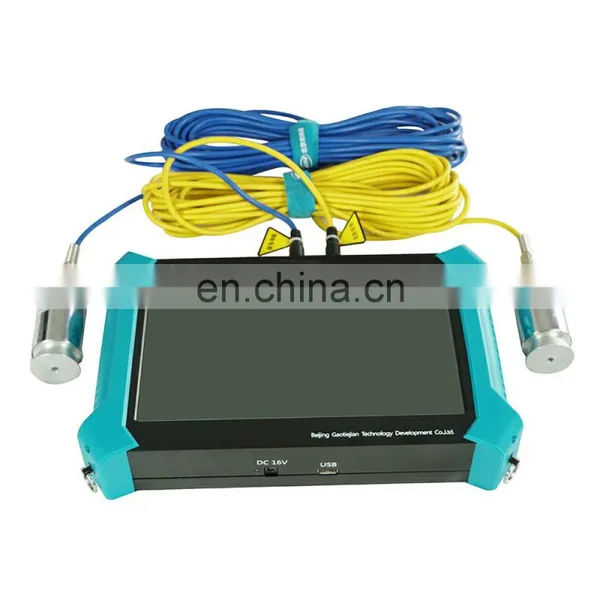

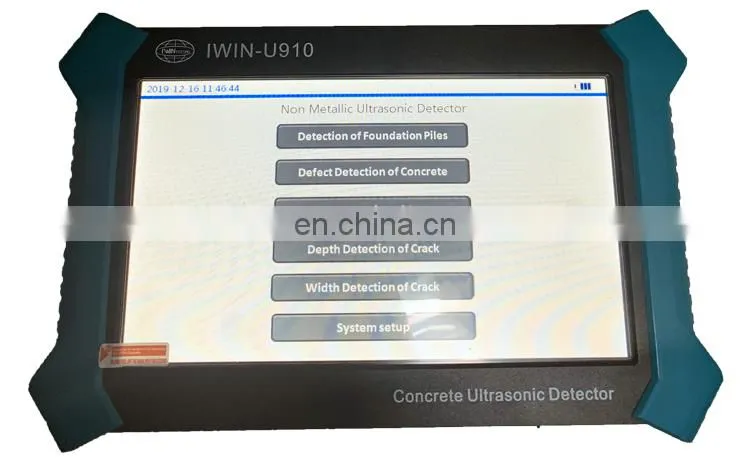

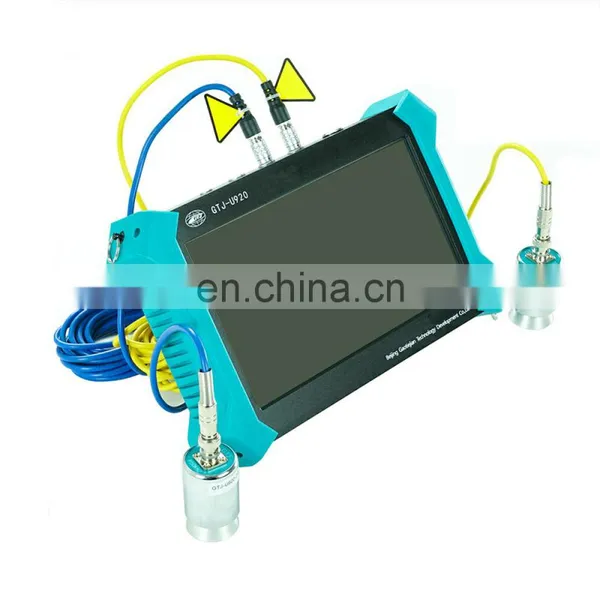

IWIN-U910/U920 Non-metallic concrete ultrasonic detector, structural concrete compressive strength, crack depth, crack width and defect detection; ultrasonic transmission method for detecting pile and continuous wall integrity.It integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect measurement, crack sounding and width measurement.Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials such as rock mass and concrete.
| Product Model | IWIN-U910 | IWIN-U920 | IWIN-U930 |
| Master control unit | Built-in A8 industrial control motherboard | Built-in A8 industrial control motherboard | Built-in A8 industrial control motherboard |
| Display | 10.1 inch, high brightness, TFT color LCD capacitive screen | 10.1 inch, high brightness, TFT color LCD capacitive screen | 10.1 inch, high brightness, TFT color LCD capacitive screen |
| Operational mode | Touch screen | Touch screen | Touch screen |
| Storage mode | Built-in Electronic Hard Disk (> 8GB) +Large Capacity U Disk | Built-in Electronic Hard Disk (> 8GB) +Large Capacity U Disk | Built-in Electronic Hard Disk (> 8GB) +Large Capacity U Disk |
| Data transmission mode | Wireless Cloud Transport (Options) | Wireless Cloud Transport (Options) | Wireless Cloud Transport (Options) |
| Acquisition mode | Single-channel manual point-by-point acquisition | Manual Point-by-Point Collection of Single and Double Channels | Single and Double Channel Automatic Continuous and Fast Acquisition |
| Number of disposable profiles | - | - | Two |
| Channel Number | 1 transmit + 1 receive | 1 emission + 2 reception | 1 emission + 2 reception |
| Trigger mode | Signal triggering | Signal triggering | Signal triggering |
| Sampling period (mus) | 0.05-409.6 Multistage Options | 0.05-409.6 Multistage Options | 0.05-409.6 Multistage Options |
| Acoustic Time Accuracy (Us) | Zero Point Zero Five | Zero Point Zero Five | Zero Point Zero Five |
| Acoustic time range (mus) | 1677700 | 1677700 | 1677700 |
| Width measurement function | Measuring range: 0 ~ 10mm; | Measuring range: 0 ~ 10mm; | Measuring range: 0 ~ 10mm; |
| Dynamic range (dB) | Measurement accuracy: 0.01 mm; | Measurement accuracy: 0.01 mm; | Measurement accuracy: 0.01 mm; |
| Bandwidth (kHz) | One hundred and forty-six | One hundred and forty-six | One hundred and forty-six |
| Receiving Sensitivity (UV) | 1~500 | 1~500 | 1~500 |
| Gain Accuracy (dB) | Less than 10 | Less than 10 | Less than 10 |
| Emission Voltage (V) | Zero point five | Zero point five | Zero point five |
| communication interface | Sixty-five, 250, 500 and 1000 gears adjustable | Sixty-five, 250, 500 and 1000 gears adjustable | Sixty-five, 250, 500 and 1000 gears adjustable |
| Working hours (h) | USB, Bluetooth, Wifi | USB, Bluetooth, Wifi | USB, Bluetooth, Wifi |
| Power supply mode | More than 8 | More than 8 | More than 8 |
| work environment | Built-in lithium battery | Built-in lithium battery | Built-in lithium battery |
| Host Size (mm) | External 220V~16V AC/DC | External 220V~16V AC/DC | External 220V~16V AC/DC |
| Temperature (?) - 10 (?) ~ + 40 (?) | Temperature (?) - 10 (?) ~ + 40 (?) | Temperature (?) - 10 (?) ~ + 40 (?) | |
| Humidity (RH) < 90% | Humidity (RH) < 90% | Humidity (RH) < 90% | |
| 300 * 200 * 55 | 300 * 200 * 55 | 300 * 200 * 55 |
Q: Are your company a trading one or a factory?
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q: After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead times depend on specific items and item quantities.
Q: What about the warranty with after-sales services?
A: The testing machine is guaranteed for 12 months by gaotiejian, we can help you to repair your problem con troller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q: What about the product' services and qualit?
A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use training, each of our product provide video training to show you how to install operate We can arrange engineer to train the operation of equipment to customer s company when you need. products are widely recognized and trusted by users.
