Soil plate load bearing capacity testing equipment
- T/T Credit Card
You May Like
Product Details
| Brand Name | IWIN | Place of Origin | Hebei, China | |
| Model Number | EV2 |
Product Description
soil plate load bearing capacity testing equipment
The gtj-k intelligent foundation coefficient tester is suitable for testing the foundation coefficients of coarse and fine grained soil and subgrade and base course after compaction, and can also be used for calculating the deformation modulus of uniform foundation. Test the stress and deformation characteristics of foundation soil, determine the foundation coefficient of railway, highway subgrade, road layer, etc., this product has the function of testing K30,K40, K60.
Test coverage | Applicable soil type | All kinds of soil and earth-stone mixed packing with particle size less than 1/4 of bearing plate diameter |
Test impact depth | 0~500mm | |
work environment | temperature -10℃~40℃ humidity <90%HR | |
Armed with the host | specification | Screen size :3 inches volume:100×205×40mm weight:0.8kg |
memory capacity | 400 sets of test data | |
power supply mode | Large capacity lithium battery, working time more than 18 hours | |
display usage | Chinese-english switching display | |
printer | attended mode | Wireless bluetooth printing |
The sensor | Pressure sensor range | 100kN |
Displacement sensor range | 25mm,resolution ratio 0.01mm | |
data acquisition unit | bearing plate | diameter:300mm thickness:25mm weight:17.5kg |
loading device | oil hydraulic pump:pressure100kN High pressure hose:length2m Extension of pluggable pressure cylinder pole:1×40mm,1×90mm, 1×120mm,1×160mm,2×60mm | |
Sedimentation tester | Three-point support frame (with retractable, rotatable lever arm, adjustable base) size: 2320×570×420mm(length * width * height) weight: 12.5kg | |
packing specification | mainframe box | Material: engineering plastics volume:470×360×170mm weight:7.0kg |
Outer packing case 1 | Material: aluminum alloy volume:1410×510×260mm weight:72kg | |
Outer packing case 2 | Material: aluminum alloy volume:1270×440×230mm weight:32kg |
|
Display
It is the first mobile APP data processing method in China, which realizes wireless data collection/wireless transmission, and provides a cloud transmission port that can be connected to the engineering detection management system
| 1 |

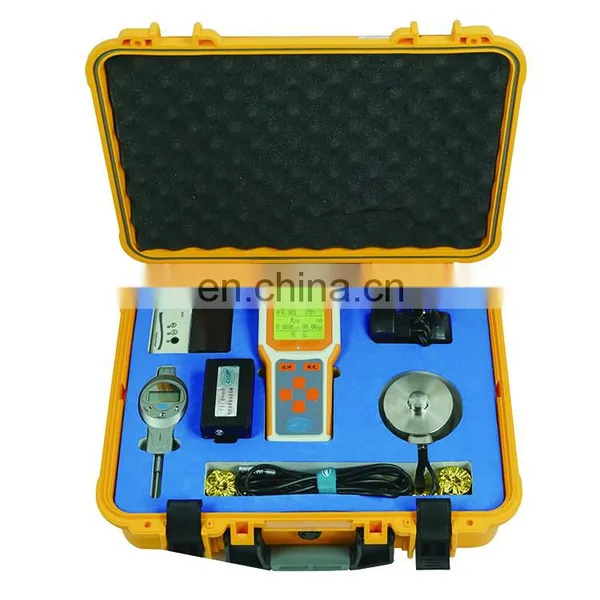

| 2 | Package
Each product is individually packaged, providing instructions for chargers, etc. | |
|
Oil cylinder
The imported oil pump and jack from the United States are adopted to ensure the stability of pressurization and voltage stabilization. The imported sensors and some components are adopted to ensure the high test accuracy
| 3 |
| 4 | The printer
Wireless bluetooth micro printer, field direct printing, to ensure that the test results are accurate and objective |
|
