Foamed bitumen/Asphalt plant

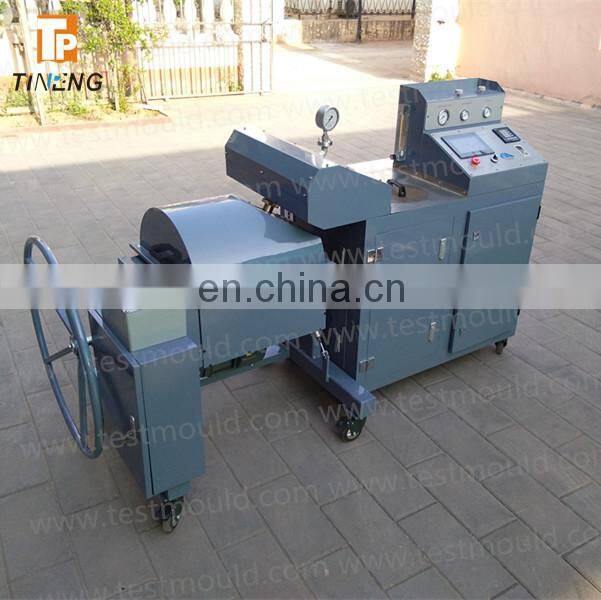

The iFOAM Laboratory Asphalt Apparatus is designed to be professional equipment as a true representation of “Asphalt Foaming”, a professional-grade equipment for indoor study of foamed asphalt.
Foamed asphalt is a relatively new process in the United States by which moisture is injected into hot paving-grade asphalt binder, giving the asphalt a low-viscosity, foam-like consistency suitable for coating aggregates at lower temperatures. Foamed asphalt has several potential benefits, including reduced energy requirements due to lower production temperatures and as a method to mix asphalt with cold and damp aggregates for applications in partial and full depth recycling projects.
| Item | Parameter | Unit | Value |
| 1 | Water consumption: min max |
L/hour |
2.5 6 |
| 2 | Air consumption: min max |
MPa | 0 100 |
| 3 | Bitumen pump pressure, max | MPa | 2.5 |
| 4 | Water pressure, max | MPa | 0.6 |
| 5 | Air pressure: max min |
MPa | 0.6 0.4 |
| 6 | Bitumen temperature: max min |
℃ | 170 140 |
| 7 | Water temperature: max min |
℃ | 60 10 |
| 8 | Bitumen tank volume | L | 12.5 |
| 9 | Power supply voltage | V | 220 |
| 10 | Water tank volume | L | 6 |
| 11 | Air chamber volume | L | 6 |
| 12 |
Rated power:Bitumen pump Heaters |
KW | 1.5 3.2 0.1 |
| 13 | Bitumen pump speed: min max |
HZ | 1 60 |
| 14 | Foamed bitumen preparation time: min max |
S | 0.1 999 |
| 15 | Dimensions, length x width x height | mm | 1261 x 670 x 1200 |
