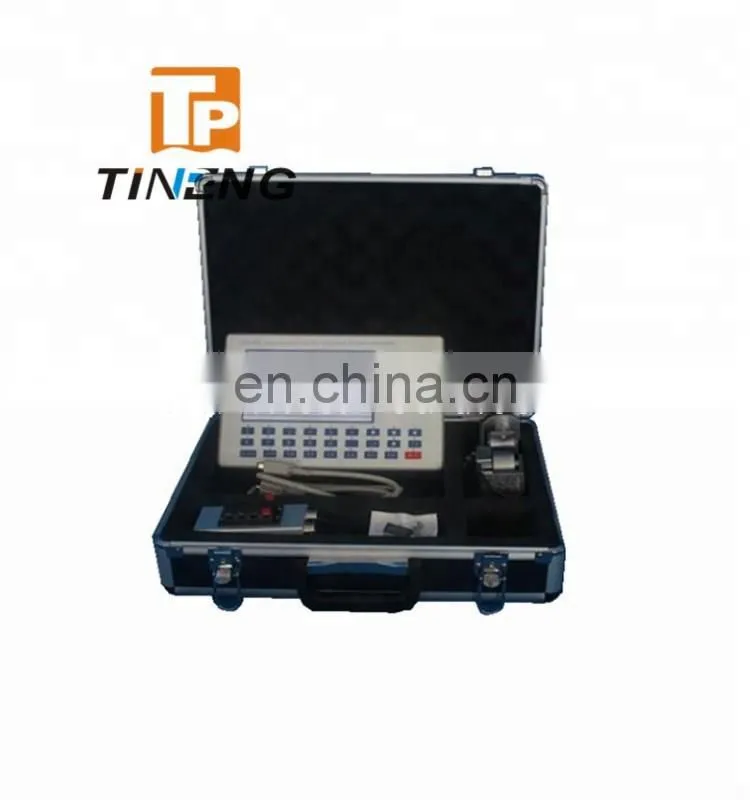

CPTU Data Acquisition System

 CPTU Data Acquisition System

Main Features

1. Adopt new 16-bit low-power high-performance single-chip MSP430F5437A as the coreof host.
2. Adopt large-size color TFT high-definition LCD screen, data sheet shows very clear.
3. Adopt large-capacity Flash storage, which stores program data large and reliable.
4. Adopt low-power 24-bit resolution A / D converter, when input sensor information, it automatically set zero in the software.
5. Set the USB interface to connect U disk, U disk in the form of file to store data information from test. Data can not only read directly on the machine, and also can be easily moved outside of the computer to read out.
6. Adopt high-strength ABS quality engineering plastic molded shell, beautiful appearance, heat-resisting, strong sealing.
7. Set up three sampling channels, three test data obtained at one time.
8. Adopt high-capacity lithium battery as the power supply, suitable for long-term field operations.

Main Technical Parameters

1. The host using 16-bit low-power high-performance single-chip MSP430F5437A for as control center, 256KBFlaSh storage is used for storing procedures, 16KB static RAM memory is used for data processing, 16MB Flash storage is used for storing data
collection.
2. The display is a 7-inch TFT LCD with a window area of 156x89 (mm).
3. Three differential input channels, each channel measurement ranges are -20mV ~ +20 mV
4. The linear error of instrumentation measurement system : ≤ ± 0.1%
5. The depth of sampling interval: 10cm
6. External probe specifications: a variety of cross-section of the static probes. Hole pressure three bridge static probe, a variety of cross-plate cutting probes.
7. The machine data storage capacity: 4096 storage space, up to 1024 data storage, the maximum number of holes: 350
8. The voltage power consumption: the batteries of machine is about 2W, external voltage is about 2.5W
9. Internal voltage: 7.4V, 5200mA lithium battery
10. Size of the host: 268*168*45 (mm) , weight: about 960g.
Detail information pls refer to the manuals.
