Help CenterASTM D 6951 Standard Dual-Mass DYNAMIC CONE PENETROMETERS
Related Products
-
Chinese Supplier Civil Engineering Laboratory Testing Equipments for Soil and Concrete and Asphalt and CementUS$ 0.1 - 1MOQ: 1 Piece -
ASTM Standard 8 kg Dynamic Cone Penetrometer DCPUS$ 200 - 350MOQ: 1 Set
-
EVD LWD Elastic Dynamic Plate Load Test ApparatusUS$ 4,500 - 6,000MOQ: 1 Set
-
Manual Speedy Moisture Content Tester or Soil Moisture AnalyzerUS$ 200 - 300MOQ: 1 Set
-
Munsell Soil Colour BookUS$ 400 - 400MOQ: 1 Piece

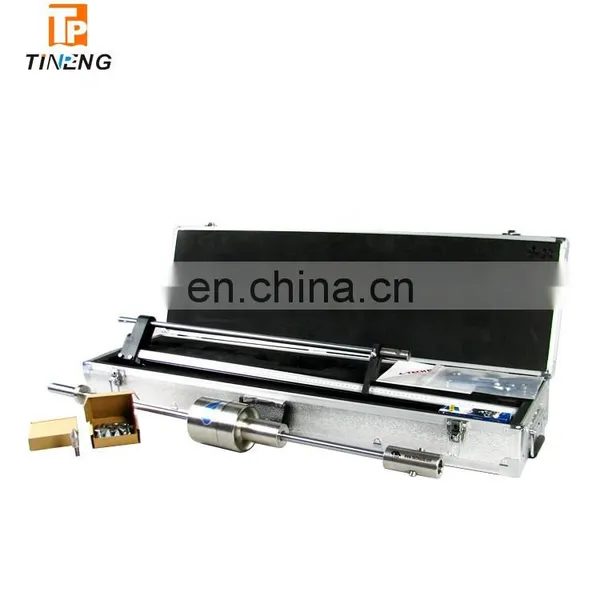

Dual-mass dynamic cone penetrometers
Features Quick-Connect Connectors Developed by the Army Corps of Engineers, Dynamic Cone Penetrometers (DCPs) provide a low-cost, efficient test method for quickly determining in-situ CBR values of pavement base, subbase and subgrades. They can readily be used for depths up to 30" and up to 6' with optional drive rods and extensions. This model complies with ASTM D6951 specifications and comes with a chart to compute CBR values, as well as an Excel spreadsheet template, which automatically charts the test results. DCPs cover a CBR range from <.05 to 100% and a bearing value range from 430 to 10,800 psf.
Packing List :
1. Double Mass Hammers made of stainless steel of 8kg +/- 0,010 kg. Weights of 17.6 lb and 10.1 lb made of stainless steel. (Dual Mass)
2. Reusable Hardened Steel Tip of 60° with a tolerance of 1°, with a diameter of 20 mm +/- 0,25 mm.
3. Upper Guide Bar with Handle made of stainless steel.
4. Lower Bar made of stainless steel.
5. Adaptor for disposible cones.
6. Accessory for placing the measuring ruler.
7. Tools for Assembly
8. Lubricating Oil
9. Transport Case
10. Vertical Ruler of approximately 110 cm, graduated in milimeters.
11. Quantity of 25 Disposable Hardened Steel Tip of 60° with a tolerance of 1°, with a diameter of 20 mm +/- 0,25 mm.
12. Operating Manual
Send Inquiry to This Supplier
