16-T0012/P Pneumatic Dynamic Cone Penetrometer With 10kg and an Additional 20kg Hammer (DPL, DPM)

Features:

    Pneumatic DPL and DPM testing set is suitable for doing light (10 kg) and medium-heavy (30 kg) dynamic
penetration tests according to ISO 22476-2 (replaces DIN 4094-3).

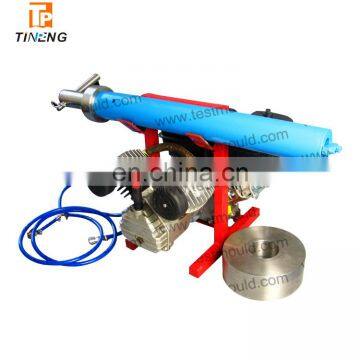

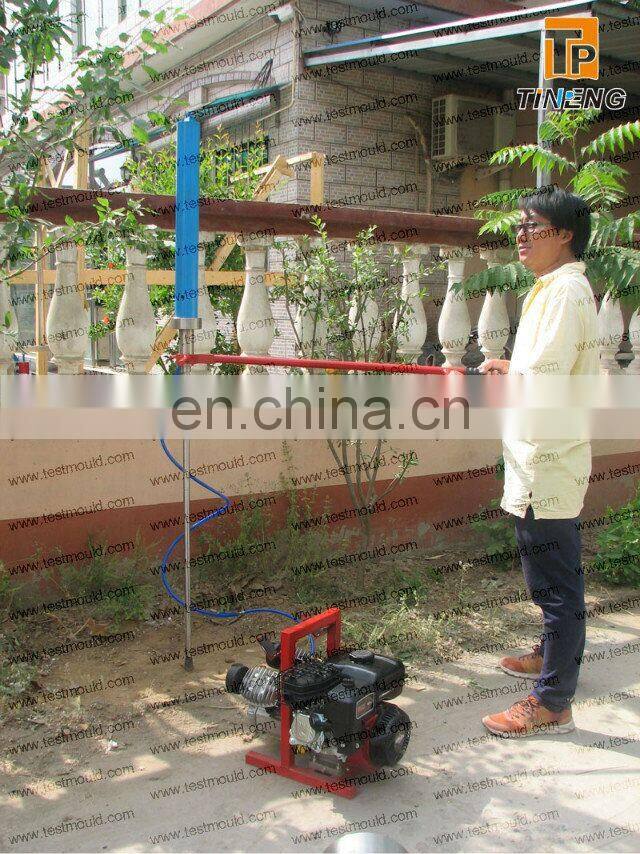

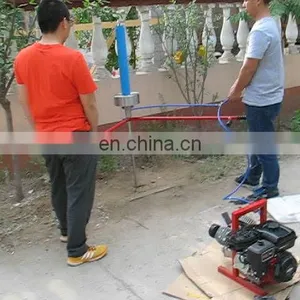

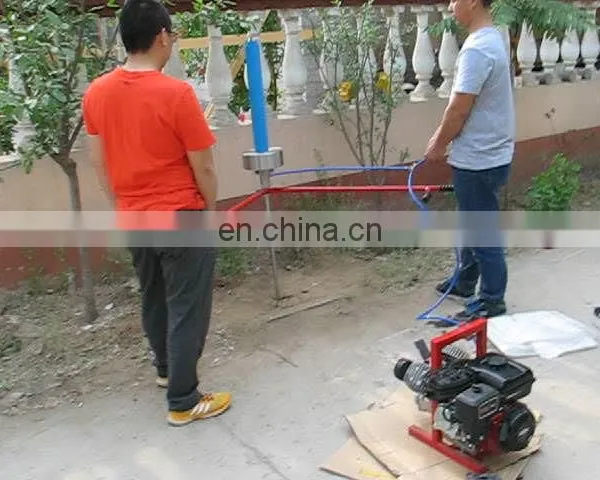

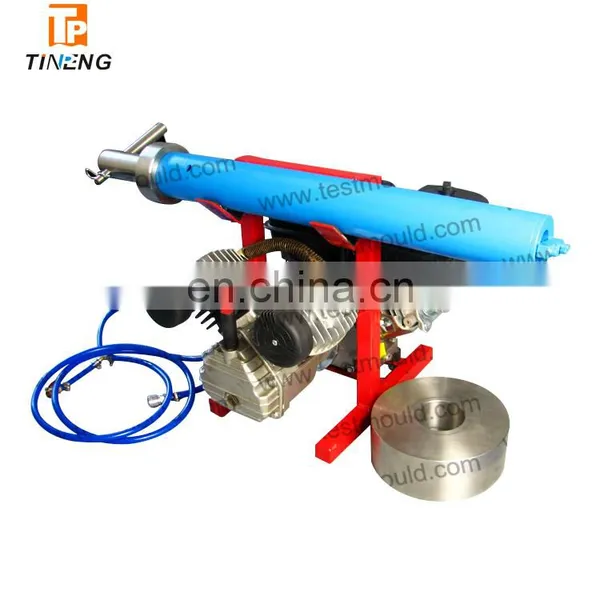

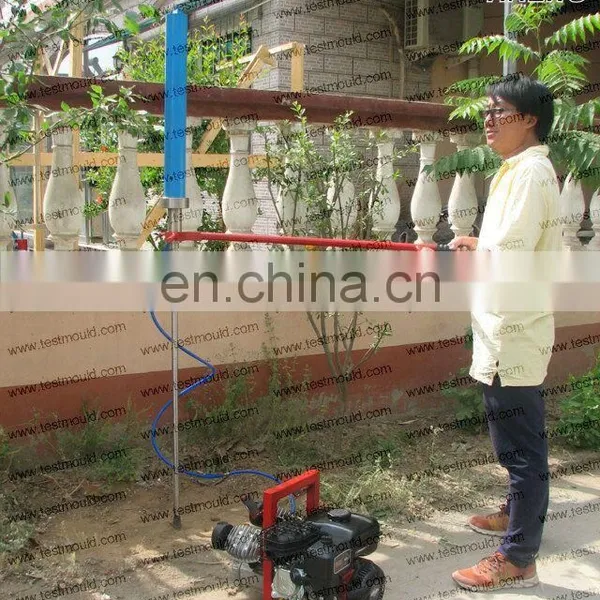

    This pneumatic DPL and DPM testing set is a cost effective, simple and reliable tool suitable for light dynamic penetration testing up to approx. 10 - 12 m depth. It comprises of a pneumatic power-pack with a four stroke gasoline engine and maintenance-free air-compressor all integrated in a sturdy framework with carrying
handle and a solid hammering unit with integrated air-cylinder. The unit holds a 10 kg (and an additional 20
kg) drop-weight, falling height 50cm and a fully automated pressure release valve. The air is led through the
tubes of the framework where it can loose most of its warmth.
    The bottom part of the hammering unit is in fact an anvil on which the drop-weight will fall. It is provided with a holder for the connection piece that goes on to the upper sounding tube.

Specifications

Model 16-T0012/P Pneumatic driven dynamic cone penetrometer comprises :
16-T0012/P1 Pneumatically driven dynamic penetrometer set with portable compressor set with 4-stroke gasoline engine and integrated air cooling. Fixed 10 kg and 20 kg additional drop weights. Drop height 0.50 m.
Approx. 20 blows per minute.

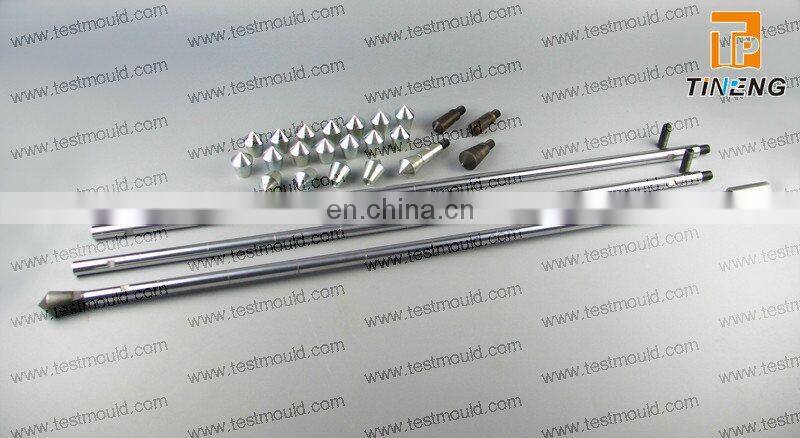

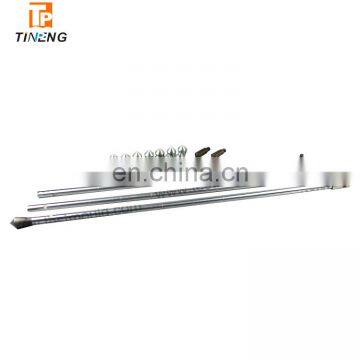

16-T0012/P2 Sounding tube (22 x 1000 mm) with depth indication every 100 mm 12pcs
16-T0012/P3 Threaded nipple M16 for sounding rod (22 mm) 12pcs
16-T0012/P4 Open ended spanner 19 mm – Heavy duty design for 22 mm sounding tubes
16-T0012/P5 Allen key M8 for threaded nipples M16

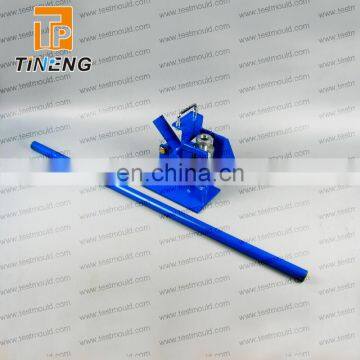

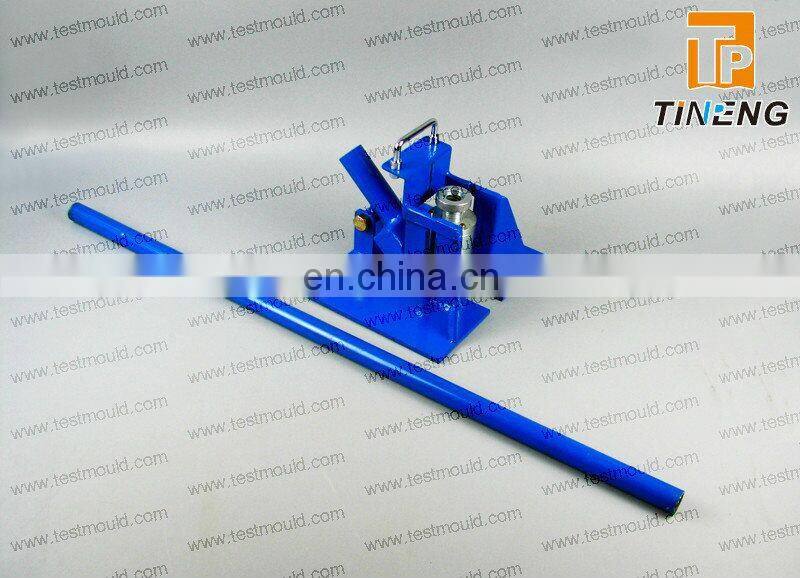

16-T0012/P6 Manual rod puller with football and lever
16-T0012/P7 Conical sounding tip of tempered steel - 5 cm², M16 connection 2pcs
16-T0012/P8 Conical sounding tip of tempered steel - 10 cm², M16 connection 2pcs
16-T0012/P9 Conical sounding tip - 10 cm² - single use type 20pcs
Weight: 130 kg approx. (with sounding rods and all accessories)
