Soil Pneumatic Driven DCP Dynamic Cone Penetrometer

Pneumatic driven dynamic cone penetrometer

 Penumatically driven dynamic cone penetrometer is suitable for doing light(10kgs) and medium-heavy(30kgs) dynamic penetration tests according to ISO 22476-2(replaces DIN 4094-30

This pneumatic testing set is a cost effective, simple and reliable tool suitable for light dynamic penetration testing up to approx. 10 - 12 m depth.

The complete ready-to-go pneumatic motor testing set comprises:

1 nr. - Pneumatic power-pack with a four stroke gasoline engine and air-compressor
1 nr.- Hammering unit with 10 kg drop-weight and integrated air-cylinder.
1 nr. - Additional drop weight of 20 kg for medium-heavy (DPM) dynamic penetration testing
1 nr. - Air hose with connectors
1 nr. - Connecting piece for connecting the hammering unit to the sounding tubes

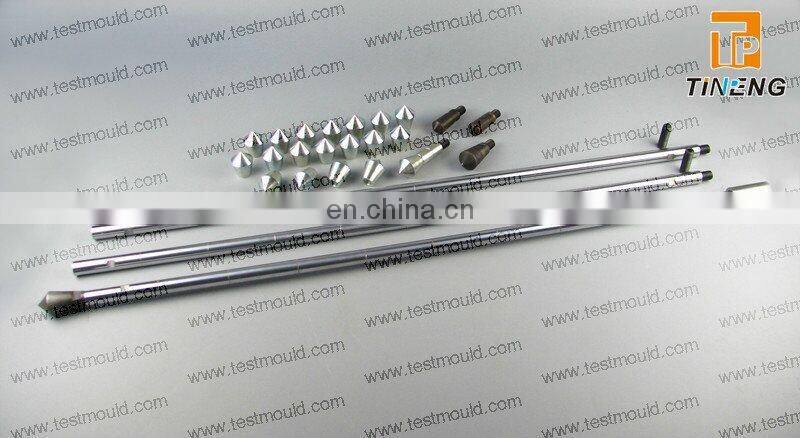

12 nr. - SPT/DPT sounding tube (22 x 1000 mm) with markings every 10 cm
12 nr. - Threaded nipple (stud) M16 x 50 for 22 mm sounding tubes
2 nr. - Conical sounding tip of tempered steel - 5 cm², M16 connection
2 nr. - Conical sounding tip of tempered steel - 10 cm², M16 connection
20 nr. - Conical sounding tip - 10 cm² - single use type

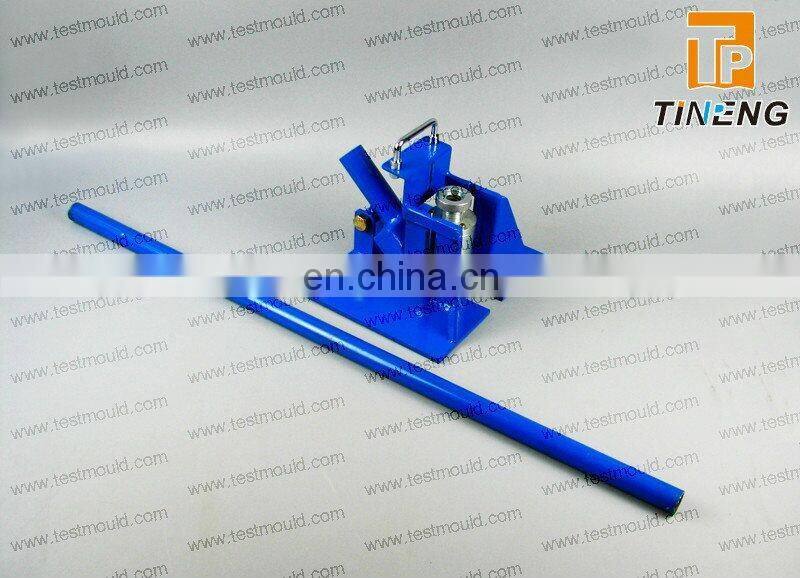

1 nr. - Manual rod puller (car jack type) with footplate, and lever
1 nr. - Wooden transport case for 12 rods
