Standard Soil Testing Equipment Light and Heavy Dynamic Cone Penetrometer DCP

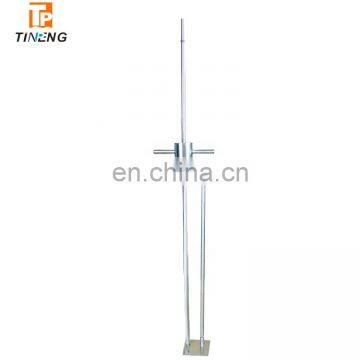

Dynamic Cone Penetrometer DCP

Model 16-T0012/E FEATURES:

• It is tough and robust having been well proven in the fi eld over many years.

• Allied to the foregoing, the replaceable Shear Pins enable fi eld repairs to be easily and rapidly carried out.

• It is supplied with a reversible ‘Top Nut’, enabling it to be used in the standard configuration (as it is supplied) or easily changed over to the Perth Sand Pene

MANUAL DYNAMIC PENETROMETER

16-T0012/B 10 kg hammer, 50cm. fall

Standard: DIN 4094 LRS10 uni env 1997-3

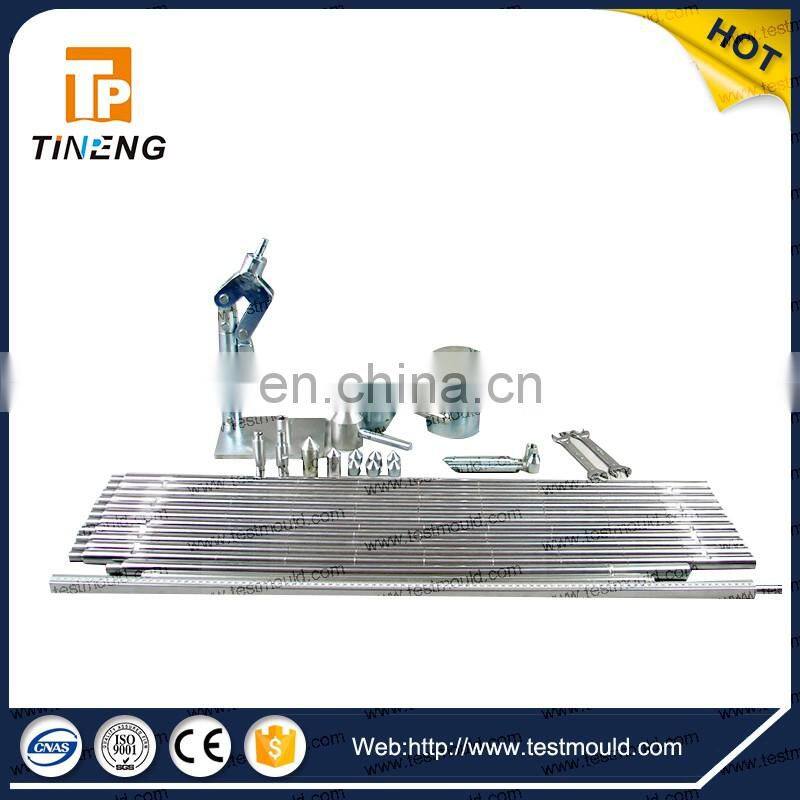

COMPRISES:

16-T0012/B1 Hammer, 10 kg

16-T0012/B2 Anvil with rod and full travel impact plug, 6 kg

16-T0012/B3 11 threaded sounding rods dia. 22 mm x 1000 mm long

16-T0012/B4 Drive conical point, 500 mm2 area, 25.2 mm dia, 90° angle

16-T0012/B5 Drive conical point, 1000 mm2 area, 35.6 mm dia, 90° angle

16-T0012/B6 Base plate with seating for scale

16-T0012/B7 Rule graduated in mm, 1 m long

16-T0012/B8 Lever device for rod extraction

16-T0012/B9 Alloy aluminum carrying case

Dimensions: 1080x310x150mm

Weight: 22kgs

ACCESSORIES AND SPARE PARTS: (need to be ordered seperately)

16-T0012/A7 Extension rods: 400 mm, dia. 16mm

16-T0012/B10 Spare expendable conical point, 1000 mm2 area, 35.6 mm dia, 90° angle
