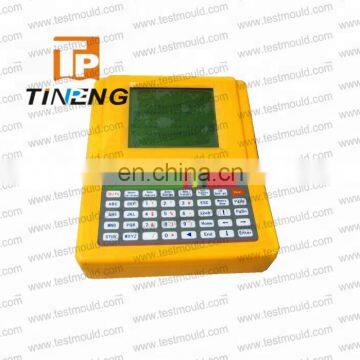

JTY-3A CPTU Data Acquisition System

 Acquisition channels can simutaneously acquire the following CPT parameters:

1. Point pressure

2. sleeve friction

3. pore pressure

4. cone inclination

5. penetration equipment inclination

6. temperature

7. electric conductivity

8. total force

Specifications:

Model no.: JTY-3A

Qc,Fs collection value error <1%
Output voltage 7.4V
Charging voltage AC 220V or DC 12V
High-energy battery capacity 4Ah
Charging current 450mA
Charging time 13 hours, can collect data
for 8-10 hours
Single-hole acquisition depth <= 100m
Storage Hole Data 1000
Storage data(double bridge) 1500-5600m
Package dimension 320 x 240 x 135mm

Features and Functions:
• High density (10 points / m or 16 points / m) acquisition of quasi-double bridge or single bridge Qc (Ps), Fs value, cross plate Cu value.
• Large-screen liquid crystal display technology, realtime display conical curve and the side wall curve,
the proportion of self-selection to adapt to different formations. Screen size: 97mm x 77mm.
• Large-capacity chip storage technology, the instrument can store 1500-5600m double-bridge static
exploration data and probe rate data, the data stored in the instrument for more than a year.
• With the function of curve echo, you can select any one of the hole number in the instrument quiescent curve, displayed on the screen, help surveyors to adjust the program.
• Continue to collect, you can call any curve stored in the instrument to continue to collect the design depth.
• One-hole delete or delete all the instruments in the quest to release the necessary memory space.
• Data editing function, you can call out the instrument has been stored in any of the hole curve data, edit and modify.
• Backlight display, especially suitable for night or dark light environment homework.
• Memory limit exceeded, to ensure the safe data collection.
• Manual zeroing, auto-zeroing are optional. When the auto-zeroing is performed, the software automatically warps the data (referring to the probe).
• English menu prompts.
• Equipped with US B port and RS -232 standard serial port to generate text type data files for communication with PC computer, which can be used for mapping or further data processing by engineering geological survey software package.
• Parallel port on the instrument, connect the printer, direct print of the probe curve or data, aspect ratio can be selected.
• External DC 12V power supply to ensure that the instrument field work time.
• Alarm function, user can set the cone tip and the side wall alarm value.

 Packing: export standard wooden case

 Delivery time: within 15 days after payment
