floor thickness gauge

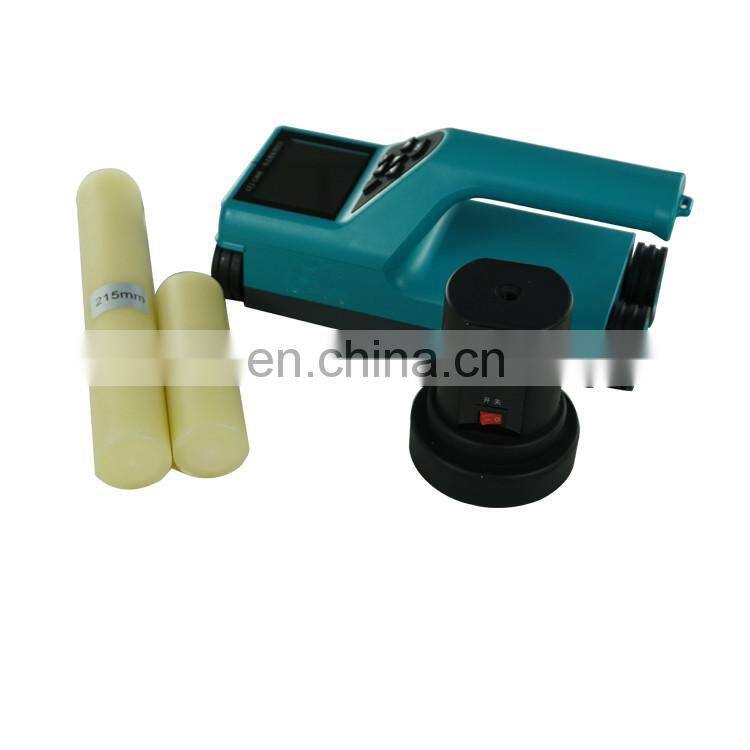

L800 floor thickness detector (all-in-one machine) is a portable instrument suitable for non-destructive testing of concrete or other non-ferromagnetic medium thickness measurement;When in use, the transmitting probe and the receiving probe are placed on two opposite test surfaces of the floor respectively to transmit and receive electromagnetic signals. The instrument measures the thickness of the floor according to the received signal strength.
Technical Parameters
Thickness test range |
20~850mm |
Test precision |
20~350mm ±1 351~600mm ±2 601~850mm ±4 |
Data storage capacity |
950component*1000measure point. |
Host Parameters |
screen size:2.8inch Liquid crystal resolution:240×320 volume:220×93×110mm weight:0.6kg |
Power supply |
Both the main engine and the transmitting probe have built-in lithium batteries |
Operational Reliability |
temperature:-10ºC~40ºC Direct sunlight should not be allowed for a long time |
