SYE Series Concrete Hydraulic Compression Testing Machine

SYE Series Concrete Hydraulic Compression Testing Machine photo-1

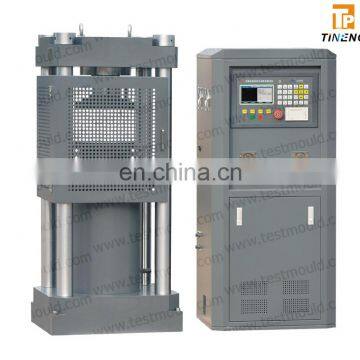

SYE Series Concrete Hydraulic Compression Testing Machine photo-2
SYE Series Concrete Hydraulic Compression Testing Machine photo-3
SYE Series Concrete Hydraulic Compression Testing Machine photo-4
SYE Series Concrete Hydraulic Compression Testing Machine photo-5
SYE Series Concrete Hydraulic Compression Testing Machine photo-6
US$ 2,500 - 4,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
c-tech
Place of Origin:
Hebei, China
Model Number:
SYE-2000B/3000B
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang
Delivery Detail:
Delivery time depends on order quantity.
Brand Name c-tech
Place of Origin Hebei, China
Model Number SYE-2000B/3000B
Power Electronic
Usage Compression Testing Machine

SYE series concrete hydraulic compression testing machine





Features:
Hydraulic Manual loading.
Used for testing the compressive and flexural strength of cement, concrete and other building materials. It can be carried
out in accordance with the corresponding standard as setting loading rate.
LCD screen display strength, loading speed value, can be configured computer display load curve and data acquisition
processing, also can be directly printing and storage test result directly.
Suitable for testing 50mm, 100mm, 150mm and 200mm cube samples as well as cylinder samples with 75-160mm diameter
and 150-320mm height.
Pressure safety valve, piston limit switch, removable front and rear gates are standard in all models. Upper compression
platens have ball seating assembly for movement in all models. All compression platens have a surface hardness of 50
HRC .



SYE series concrete hydraulic compression testing machine





ItemSYE-2000BSYE-3000B
Max. test force2000KN3000KN
Accuracy classClass one
Span of column400mm440mm
Compression space360mm400mm
Piston stroke200mm200mm
Size of compression platesdia. 300mmdia. 300mm
Dimension of load frame640x560x1500mm720x720x1800mm
Power1.8KW1.8KW
Weight1500kg2700kg
