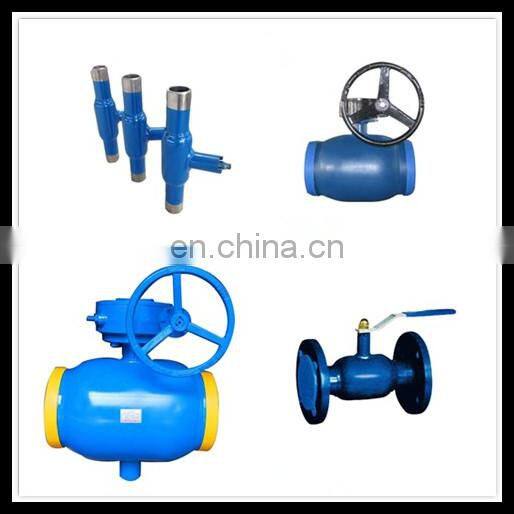

8 Inch Dn200 Carbon Steel Fully Welded Float Ball Valve
| Modle | Q61F Q361F Q961F |
Connection |
Welded type |
| Diameter | DN15-DN1200 |
| Nominal Pressure | PN16,PN25,PN40 |
| Strength testing pressure | PT2.4, 3.8,6.0,9.6MPa |
| Applicable Medium |
Q61F-(16-64)C Water, Oil, Gas Q61F-(16-64)P Nitric acid Q61F-(16-64)R Acetic acid |
| Applicable temperature | -40~180°C |
| Body Material | SS, Carbon Steel (As your request) |
| Operation | Manual, Gear box, Electric drive, Pneumatic drive |
| Application | Food & Beverage, Refining, Distillation, Petrochemical, Chemical, Pharmaceutical, Textile, Pulp & Paper, Mining, Marine and Power Industries |
| Structure | 2 Way, Straight Through Flow Path |
Adopting Standard List
| Design Standard | API6D,API608,BS5351,ISO17292,GB/T 12237,ISO14313,ISO7121, |
| Connection | ASME B16.5,ASME16.47,ASME B16.10,HG/T20592,GB/T9113,GB/T 12237 |
| Inspection & Test | API598,ISO5208,JB/T9092 |
| Face to Face | GB/T 12221 |
Materials of main parts
Description parts |
Q61F-(16-64)C | Q61F-(16-64)P | Q61F-(16-64)R |
Body |
WCB | ZG1Cr18Ni9Ti CF8 | ZG1Cr18Ni12Mo2Ti CF8M |
Bonnet |
WCB | ZG1Cr18Ni9Ti CF8 | ZG1Cr18Ni12Mo2Ti CF8M |
Ball |
1Cr18Ni9Ti 304 | 1Cr18Ni9Ti 304 | ZG1Cr18Ni12Mo2Ti 316 |
Stem |
1Cr18Ni9Ti 304 | 1Cr18Ni9Ti 304 | ZG1Cr18Ni12Mo2Ti 316 |
Sealing |
Polytetrafluorethylene(PTFE) | ||
Packing |
Polytetrafluorethylene(PTFE) | ||
Applications of ball valves
The advantage of our ball valves:
HBYS valves constantly focus on the innovation and perfection on product quality and consulting service to meet critical industrail needs in the area of sewage treatment, chemiacal plants, processing plants, plwer plants, refineries, metallurgy, pharmacology, ship-building and mining etc.
Contact us get more information of ball valves!
Production Process of ball valves
Hebei Yaosheng factory Locates in the B zone of Xushui Industrial Park of China Hebei province,which is Chinese largest corporation of High-middle-low Pressure Valve and flange.
Our corporation is the provincial-level high and new technology enterprise, which owns the power to engage in import and export trade, and the HBYS brand is rated as "the famous brand in Hebei Province", the HBYS series of products win the title of "the famous-brand product of Hebei", and it is the first class supplier of oil and gas group.
The company products has already explored the European and American, South Korean markets, most of the products also far sold to the Russia, Pakistan, Kazakhstan, Ukraine, Vietnam, Indonesia, Malaysia, Thailand, Dubai and other countries, and the products win the trust and good reputation of the customers.
OUR BALL VALVES FACTORY
Packing Details : We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Longterm cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details : according to the order, 7~30 days.
CONTACT US
We are glad to provide you our best service and our best products,
Especially, if there is any requirement please feel free to tell us!
Language: Chinese, Russian, English
Send Inquiry to This Supplier
