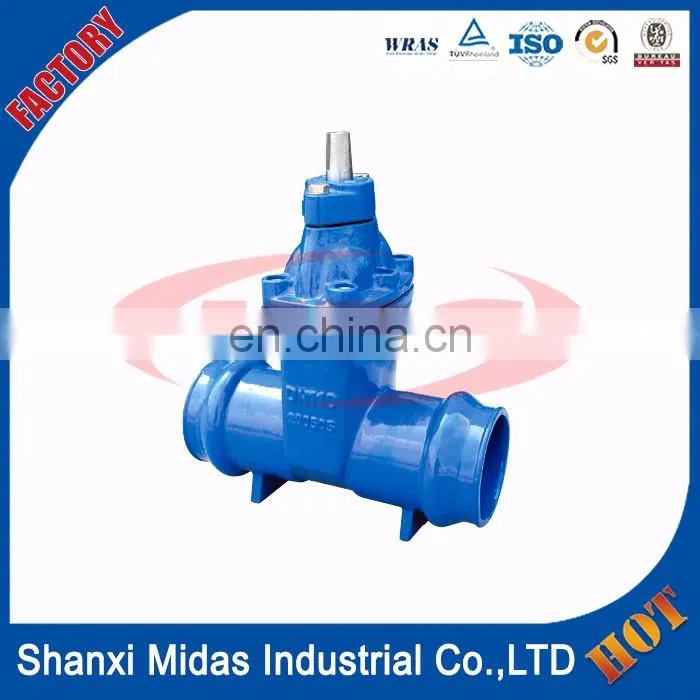

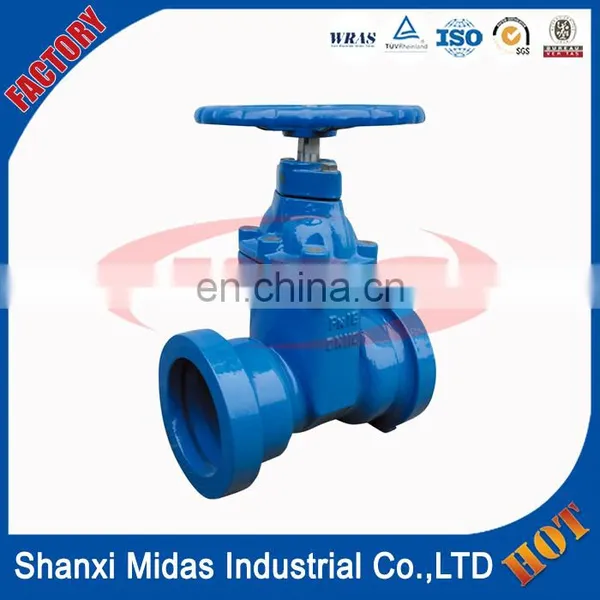

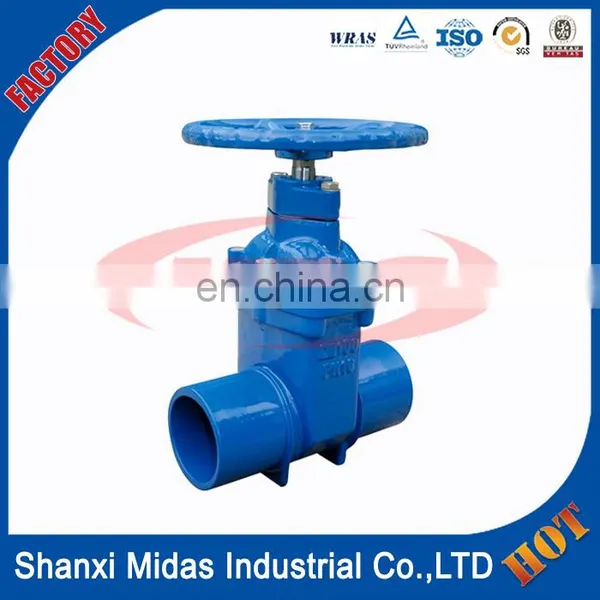

Ductile Cast Iron Non Rising Stem Gate Valve 3 Inch for Hdpe Pipe

Ductile Cast Iron Non Rising Stem Gate Valve 3 Inch for Hdpe Pipe thumbnail-1
Ductile Cast Iron Non Rising Stem Gate Valve 3 Inch for Hdpe Pipe thumbnail-2
Ductile Cast Iron Non Rising Stem Gate Valve 3 Inch for Hdpe Pipe thumbnail-3
Ductile Cast Iron Non Rising Stem Gate Valve 3 Inch for Hdpe Pipe thumbnail-4
Ductile Cast Iron Non Rising Stem Gate Valve 3 Inch for Hdpe Pipe thumbnail-5
Ductile Cast Iron Non Rising Stem Gate Valve 3 Inch for Hdpe Pipe thumbnail-6
Ductile Cast Iron Non Rising Stem Gate Valve 3 Inch for Hdpe Pipe photo-1
Ductile Cast Iron Non Rising Stem Gate Valve 3 Inch for Hdpe Pipe photo-2
Ductile Cast Iron Non Rising Stem Gate Valve 3 Inch for Hdpe Pipe photo-3
Ductile Cast Iron Non Rising Stem Gate Valve 3 Inch for Hdpe Pipe photo-4
Ductile Cast Iron Non Rising Stem Gate Valve 3 Inch for Hdpe Pipe photo-5
Ductile Cast Iron Non Rising Stem Gate Valve 3 Inch for Hdpe Pipe photo-6
US$ 600 - 800 MOQ: 1 Ton
Key Specifications
Get Latest Price
Brand Name:
MDS
Place of Origin:
Shanxi, China
Model Number:
gate valve
Contact Supplier Request Quote Chat Now
Shanxi Midas Industrial Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MDS
Place of Origin Shanxi, China
Model Number gate valve
Material Casting
Application General
Structure Gate
Standard or Nonstandard Standard
Power Manual
Port Size DN40-DN600mm
Temperature of Media Normal Temperature

ductile cast iron non rising stem gate valve 3 inch for hdpe pipe



ductile cast iron non rising stem gate valve 3 inch for hdpe pipe



1

Standard

DIN 3352-F4 ,DIN 3352-F5, BS5163, AWWA C509 ,AWWA C515

Flange drilling is according to DIN2501, BS4504 and ANSI B16.1 PN10,PN16,PN25

2

Type

Flanged End , Socked End ,Mechanical Joint, non rising stem / rising stem

3

Material

Body

Ductile iron GGG40/50 or Cast IronGG25

Wedge

Ductile iron GGG40/50+EPDM/NBR or metal seated

Stem

stainless steel 2Cr13 , SS304,SS316

Bolt and Nuts

Carbon Steel with zinc plated or SS304,316

4

Port Size

DN40-DN600

5

Pressure

PN10/PN16/PN25

6

Media

Water, oil, gas, etc

7

Coating

Internal and external with fusion bonded epoxy coating min250μm

8

Packaging

Plywood case













ductile cast iron non rising stem gate valve 3 inch for hdpe pipe

NO.

PART NAME

MATERIAL

1

BODY

DUCTILE IRON

2

WEDGE

DUCTILE IRON

3

STEM NUT

BRASS

4

STEM

STAINLESS STEEL

5

GASKET

NBR

6

BONNET

DUCTILE IRON

7

BONNET BOLT

CARBON STEEL

8

O-RING

NBR

9

LOCATING RING

BRASS

10

O-RING

NBR

11

BONNET NUT

BRASS

12

MINIPAD

TFL

13

DUST RING

NBR

14

WHEEL

DUCTILE IRON

15

WASHER

CARBON STEEL

16

BOLT

CARBON STEEL

















ductile cast iron non rising stem gate valve 3 inch for hdpe pipe

ductile cast iron non rising stem gate valve 3 inch for hdpe pipeductile cast iron non rising stem gate valve 3 inch for hdpe pipe













ductile cast iron non rising stem gate valve 3 inch for hdpe pipe

ductile cast iron non rising stem gate valve 3 inch for hdpe pipeductile cast iron non rising stem gate valve 3 inch for hdpe pipe











ductile cast iron non rising stem gate valve 3 inch for hdpe pipe

ductile cast iron non rising stem gate valve 3 inch for hdpe pipe







ductile cast iron non rising stem gate valve 3 inch for hdpe pipe



It’s our pleasure to serve the water and wastewater industry, We hope we get the opportunity to do business with you soon!



Shanxi Midas Industrial Co.,LTD

 Email: info#(#=@)

Tel: 0086-351-5257620







ductile cast iron non rising stem gate valve 3 inch for hdpe pipe

1. How is your price?

  A: Although we have brand-name products, our prices are very favorable and competitive.Because of our best price, customers from all over the world come to purchase our products.



2. How long is your warranty?

  A: Our Warranty is 12 month.



3. Can I get free samples?

A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.



4. Can I request to change the form of packaging and transportation?

A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.



5. Can I request to advance the shipment?

A: It should be depends on whether there is sufficient inventory in our warehouse.



6. Could you specially design and produce for clients?

  A: Sure, we have all kinds of professional engineers.We can design and produce special products according to customers' request. Such as: special size, special control, OEM, etc.



7. What’s the MIDAS main market?

  A: Our main market is African, Middle East Countries, South American, Asian.



8. What’s your payment?

  1) 100% T/T

  2) 30% in advance, others before shipment.

  3) L/C
