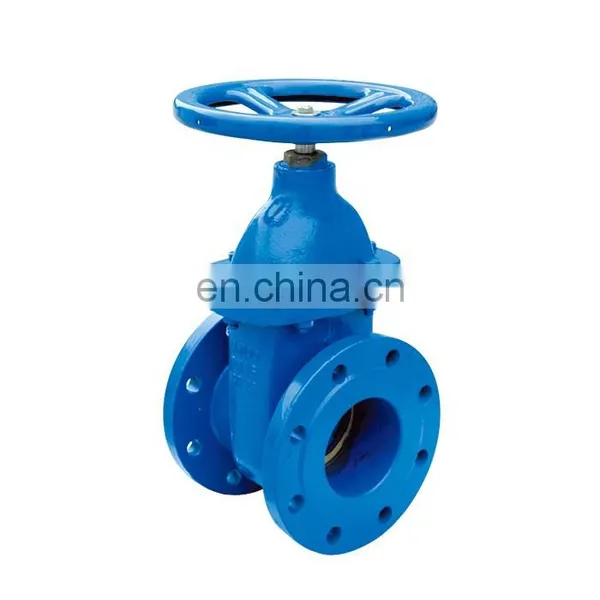

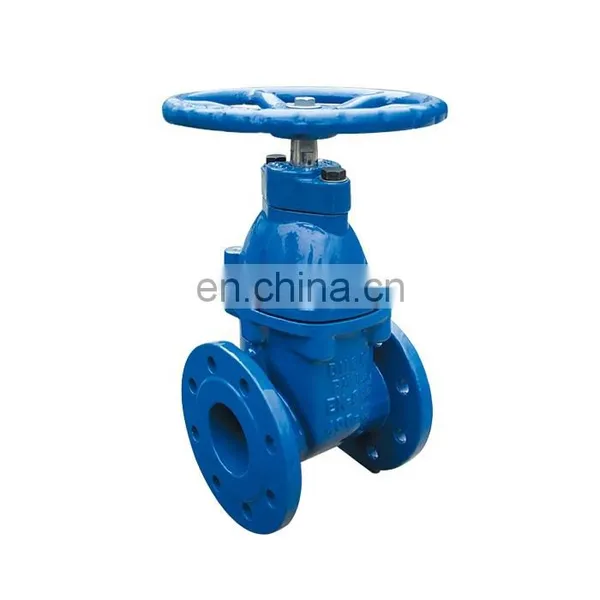

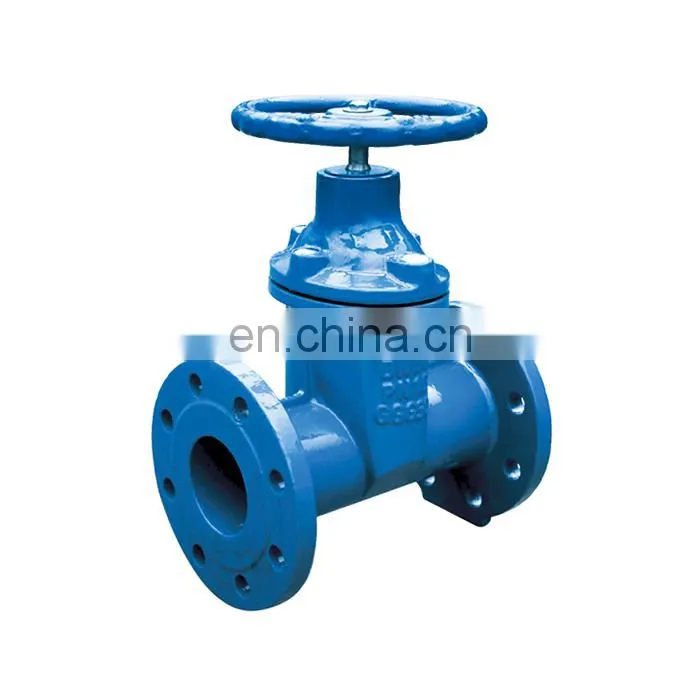

50mm ductile cast iron ggg50 manual slide DIN 3355 F5 metal seated gate valve PN16
|
1 |
Standard |
DIN 3352-F4 ,DIN 3352-F5, BS5163, AWWA C509 ,AWWA C515 Flange drilling is according to DIN2501, BS4504 and ANSI B16.1 PN10,PN16,PN25 |
|
|
2 |
Type |
Flanged End , Socked End ,Mechanical Joint, non rising stem / rising stem |
|
|
3 |
Material |
Body |
Ductile iron GGG40/50 or Cast IronGG25 |
|
Wedge |
Ductile iron GGG40/50+EPDM/NBR or metal seated |
||
|
Stem |
stainless steel 2Cr13 , SS304,SS316 |
||
|
Bolt and Nuts |
Carbon Steel with zinc plated or SS304,316 |
||
|
4 |
Port Size |
DN40-DN600 |
|
|
5 |
Pressure |
PN10/PN16/PN25 |
|
|
6 |
Media |
Water, oil, gas, etc |
|
|
7 |
Coating |
Internal and external with fusion bonded epoxy coating min250μm |
|
|
8 |
Packaging |
Plywood case |
|
|

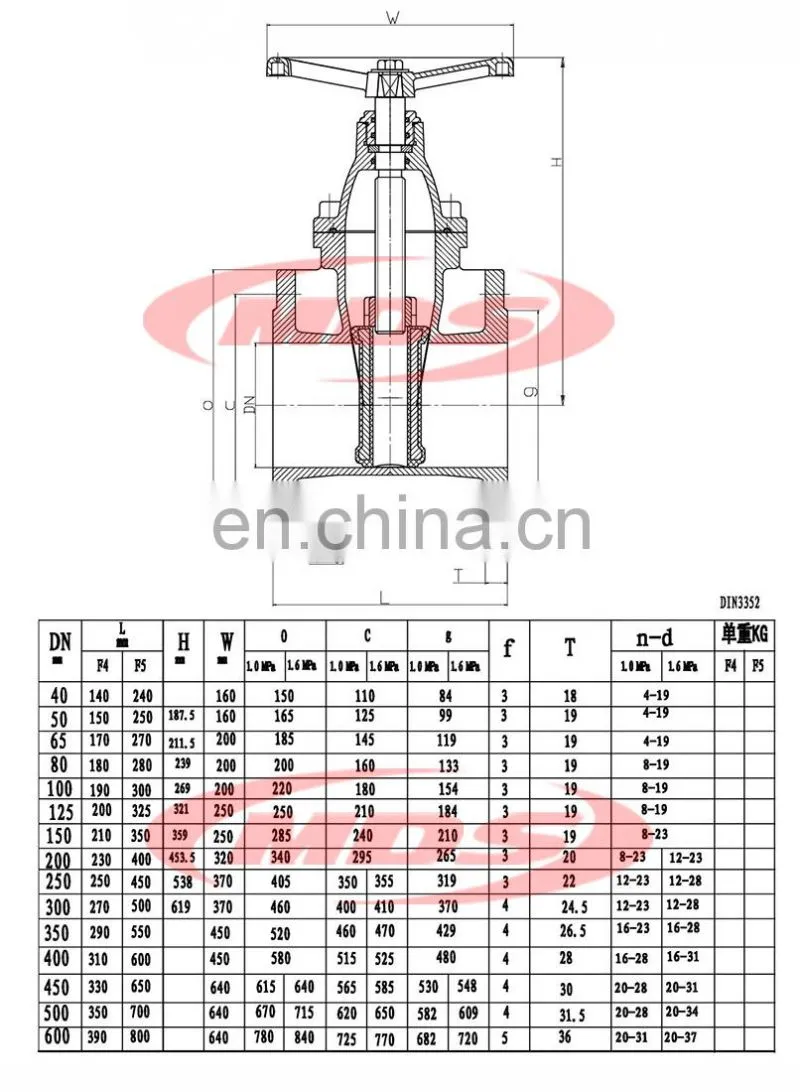

NO. |
PART NAME |
MATERIAL |
|
1 |
BODY |
DUCTILE IRON |
|
2 |
WEDGE |
DUCTILE IRON |
|
3 |
STEM NUT |
BRASS |
|
4 |
STEM |
STAINLESS STEEL |
|
5 |
GASKET |
NBR |
|
6 |
BONNET |
DUCTILE IRON |
|
7 |
BONNET BOLT |
CARBON STEEL |
|
8 |
O-RING |
NBR |
|
9 |
LOCATING RING |
BRASS |
|
10 |
O-RING |
NBR |
|
11 |
BONNET NUT |
BRASS |
|
12 |
MINIPAD |
TFL |
|
13 |
DUST RING |
NBR |
|
14 |
WHEEL |
DUCTILE IRON |
|
15 |
WASHER |
CARBON STEEL |
|
16 |
BOLT |
CARBON STEEL |
