DIN3352 /EN1171 36 inch ductile cast iron ggg50 big size resilient seated flanged gate valve
|
1 |
Standard |
DIN3352 /EN1171 |
|
|
2 |
Type |
Flanged End , Socked End ,Mechanical Joint, non rising stem / rising stem |
|
|
3 |
Material |
Body |
Ductile iron GGG40/50 or Cast IronGG25 |
|
Wedge |
Ductile iron GGG40/50+EPDM/NBR or metal seated |
||
|
Stem |
stainless steel 2Cr13 , SS304,SS316 |
||
|
Bolt and Nuts |
Carbon Steel with zinc plated or SS304,316 |
||
|
4 |
Port Size |
DN350-DN1000mm |
|
|
5 |
Pressure |
PN10/PN16/PN25/PN40 |
|
|
6 |
Media |
Water, oil, gas, etc |
|
|
7 |
Coating |
Internal and external with fusion bonded epoxy coating min250μm |
|
|
8 |
Packaging |
Plywood case |
|
|

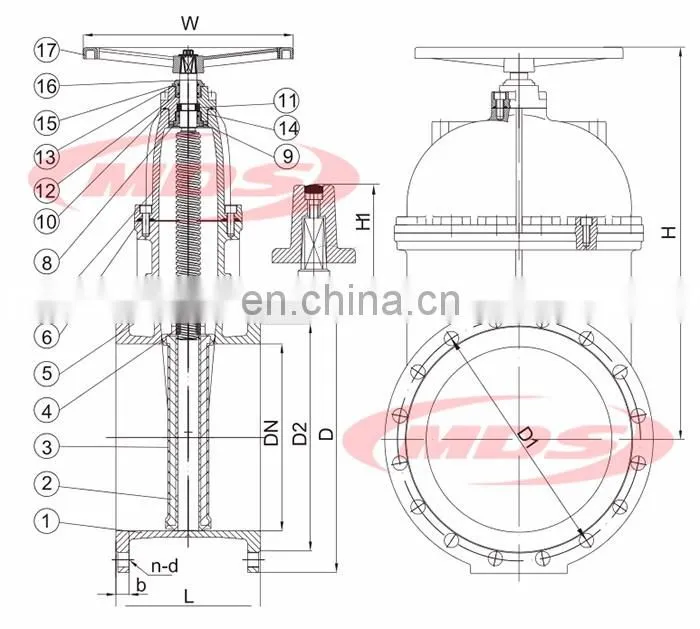

NO. |
Part Name |
Specification |
|
1 |
Body |
Ductile Iron GGG50 |
|
2 |
Wedge |
Ductile Iron GGG50 |
|
3 |
Wedge Coating |
NBR/EPDM EN 681-1 |
|
4 |
Wedge Nut |
Copper Alloy |
|
5 |
Stem |
Stainless Steel X20 Cr13 |
|
6 |
Bonnet Gasket |
NBR/EPDM EN 681-1 |
|
7 |
Bonnet |
Ductile Iron GGG50 |
|
8 |
O-Ring Back Sealing |
EPDM/ NBR |
|
9 |
Down Bushing |
Copper Alloy |
|
10 |
O-Ring |
EPDM/ NBR |
|
11 |
Stem Collar |
Stainless Steel/Brass |
|
12 |
O-Ring |
EPDM/ NBR |
|
13 |
O-Ring |
EPDM/ NBR |
|
14 |
Gland Flange |
Ductile Iron GGG50 |
|
15 |
Stuffing Cork |
Copper Alloy |
|
16 |
Dust Guard |
EPDM/ NBR |
|
17 |
Hand wheel |
Ductile Iron GGG50 |
|
18 |
Stem Cap |
Ductile Iron GGG50 |
