* Using wireless data transmission technology, the distance is no longer limited by the traverse point;
* Using visual data processing, simple, convenient and fast;
* High precision sensor, high precision, wide range;
* Long life, can work more than 100 hours;
* Small size, light weight, easy to carry;
* The masterstation server is powerful, leaving the computer (upper computer) can also be used;
* Data, information freely exported, can be exported to any format of the Excel file;
* Multi-procedure support, applicable to different types of equipment temperature field testing;
* The number of channels, support 80 channels online at the same time, up to 250;
Home > Instruments & Meters > Test Instrument > Test Machine > Wireless Temperature and Humidity Field Data Collection System

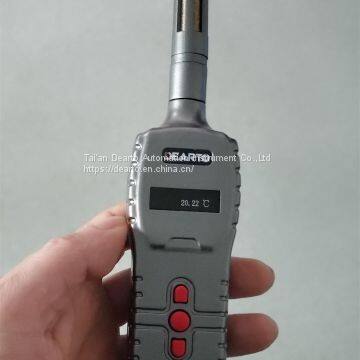

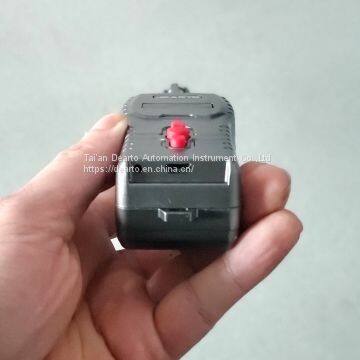

Wireless Temperature and Humidity Field Data Collection System
US$ 4000 - 10000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
DEARTO
Place of Origin:
China
Model Number:
DTWX-01G
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
20 days
Related Products
-
Long Stem Stick Type Industrial ThermometerUS$ 300 - 600MOQ: 1 Piece -
0.001 Deg C High Resolution Portable Dry Block Well Type Low Temperature CalibratorUS$ 2300 - 3500MOQ: 1 Piece
-
50 to 1200 Deg C Dry Block Well Type Furnace/ovenUS$ 1700 - 3200MOQ: 1 Piece
-
High Precision Temperature and Humidity Generator for Calibration on SiteUS$ 16000 - 22000MOQ: 1 Set
-
Sensor Surface Temperature Test System Communicate With ComputerUS$ 3000 - 6000MOQ: 1 Set
Brand Name
DEARTO
Place of Origin
China
Model Number
DTWX-01G
Power
Electronic
Usage
Other, wireless temperature and humidity test

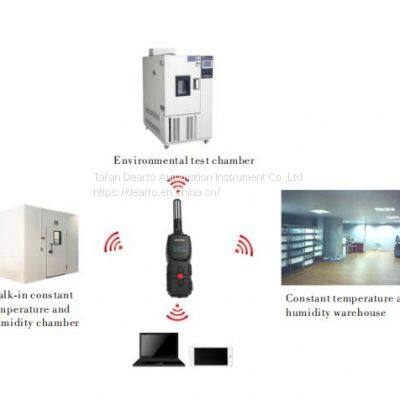

DTWX-01G wireless temperature and humidity intelligent inspection system (hereinafter referred to as DTWX-01) is one of our high-end products" temperature and humidity intelligent inspection system "series of products, is aimed at the low temperature section temperature and humidity measurement record scene which is not easy to use wired equipment, can be used in large storage grain depot, tobacco warehouse, cold storage, ammunition depot, equipment room and other
large areas with restrictions on temperature and humidity conditions.
Product characteristics
Functional characteristics
3.Function Description of System Software
* Terminal server(master station) data import function;
The data recorded by the terminal server(master station) without software can be imported into the software and processed.
* Data Curve Display Function
* Data processing function
Visual data processing, through the data curve can quickly select the best test data.The selected data is automatically calculated and processed and saved as an internal data record.
* Support multiple protocols;
The software supports the data processing of the JJF1101-2019 Environmental Test Equipment Temperature and Humidity Calibration Specification and the JJF1564-2016 Temperature and Humidity Standard Box Calibration Specification.
* Real-time data transmission function
The software can establish a connection with the terminal server to realize real-time data upload and processing.
* Historical Data Save, Manage, View
The software automatically saves the data imported from the terminal server(master station) and the data uploaded in real time,saves the data processing result, and can open the view again, supports the name retrieval.
* Information management function
Software support sensor, sample, client, testing party and other information management, for the software does not have information can be automatically added. All information can be exported to the Excel file.
* Real-time display function
When online with the terminal server(master station) , the software displays the real-time data of each channel.
* Real-time calculation of fluctuation and uniformity
When online with the terminal server(master station) , the software calculates the fluctuation and uniformity of the temperature field in real time.
* Marking function of highest point and lowest point
When online with the terminal server(master station), the software automatically marks the highest and lowest channels.
* Data viewing function
In data processing, you can view the data.
* Data correction function
The software supports temporary data correction.
* Low Power Indicator Function
When the power of the data recording terminal is insufficient, the software prompts that the data recording terminal should be charged.
* Multiple samples tested simultaneously
The data recorded by the terminal server(master station) without software can be imported into the software and processed.
* Data Curve Display Function
* Data processing function
Visual data processing, through the data curve can quickly select the best test data.The selected data is automatically calculated and processed and saved as an internal data record.
* Support multiple protocols;
The software supports the data processing of the JJF1101-2019 Environmental Test Equipment Temperature and Humidity Calibration Specification and the JJF1564-2016 Temperature and Humidity Standard Box Calibration Specification.
* Real-time data transmission function
The software can establish a connection with the terminal server to realize real-time data upload and processing.
* Historical Data Save, Manage, View
The software automatically saves the data imported from the terminal server(master station) and the data uploaded in real time,saves the data processing result, and can open the view again, supports the name retrieval.
* Information management function
Software support sensor, sample, client, testing party and other information management, for the software does not have information can be automatically added. All information can be exported to the Excel file.
* Real-time display function
When online with the terminal server(master station) , the software displays the real-time data of each channel.
* Real-time calculation of fluctuation and uniformity
When online with the terminal server(master station) , the software calculates the fluctuation and uniformity of the temperature field in real time.
* Marking function of highest point and lowest point
When online with the terminal server(master station), the software automatically marks the highest and lowest channels.
* Data viewing function
In data processing, you can view the data.
* Data correction function
The software supports temporary data correction.
* Low Power Indicator Function
When the power of the data recording terminal is insufficient, the software prompts that the data recording terminal should be charged.
* Multiple samples tested simultaneously

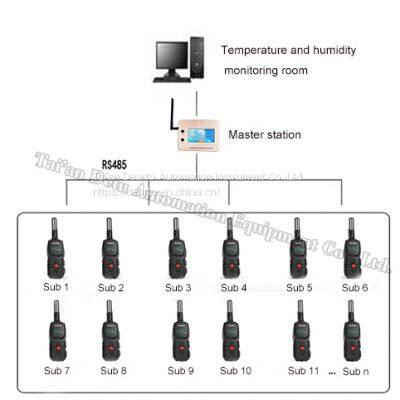

The terminal server(master station)can simultaneously online 80 data recording terminals, put the data recording terminals in different temperature fields, and realize the simultaneous testing of multiple samples by creating multiple test items on the software.
Product Paramenters
