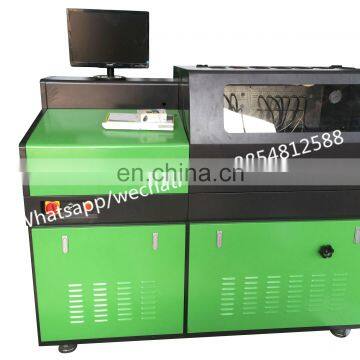

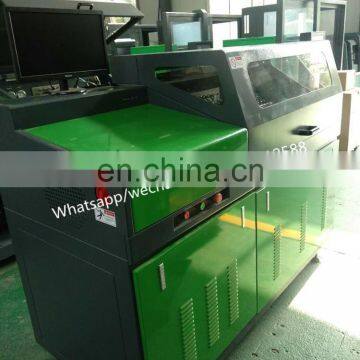

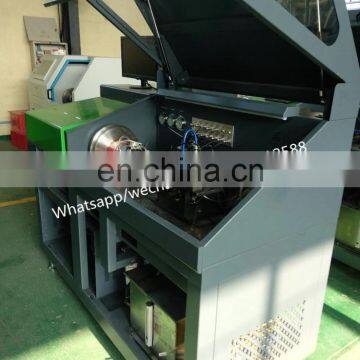

CR3000A/CRS708 COMMON RAIL INJECTOR & PUMP TEST BENCH CR3000A-708

CR3000A/CRS708 COMMON RAIL INJECTOR & PUMP TEST BENCH CR3000A-708

CRS708 has all common rail pump, injector data inside.

CRS708 COMMON RAIL TEST BENCH is mainly test for common rail pump and injector. Also it is continuous
fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The
electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a
high level of reproductivity of the measured valuse.
CR3000A COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail
system, can finish the high-pressure common rail system functional testing.

>>> System Application:
The system is suitable for detection of BOSCH, DENSO, DELPHI and SIEMENS common rail pump and injectors.
Such as CP1, CP2.CP3, HP3 series injector pump and the type of Electromagnetic injectors,
It also can test 6 common rail injectors at same time.

>>> Characteristic:
1.Controlled by industrial computer in real time, Windows operating system.
2. Oil quantity is measured by sensor and displayed on 19" LCD
3. Data can be searched, printed and made into database.
4. It can provide 0~2000 bar of rail pressure.
5. Oil temperatue is controlled by computer
6. Drive signal can be controlled.
7. Protection function of short-circuit.
8. Rail pressure can be tested in real time, it contains the high-pressure protection function.
9. Pulse and frequency of the injector drive signal can be adjusted.
10.Injection time can be setted.
11.Precise measurement, easy operation, low noise.
12. fulfill the remote assistance by internet and make the maintenance easy to operate.

>>> Function:

>>>TECHNICAL PARAMETER
Injection testing frequency :50~3000 rpm
Pulse width: 0.1~200 ms
Continuous injection times: 0~1000
Fuel temperature :40±2℃
Supply oil quantity of common rail injector: 0~200cc/min 0.5%
Rail high pressure :0~2000 bar
Test oil filtered precision :5μ
Input power :380V/50hz/3phase or
220V/60hz/3phase
Rotation speed:0~4000RPM
Oil tank capacity: 60L
Flywheel inertia’s moment: 0.8KG.M2
Center height: 125MM
Output power :7.5KW(11kw,15kw,18.5kw as request)
