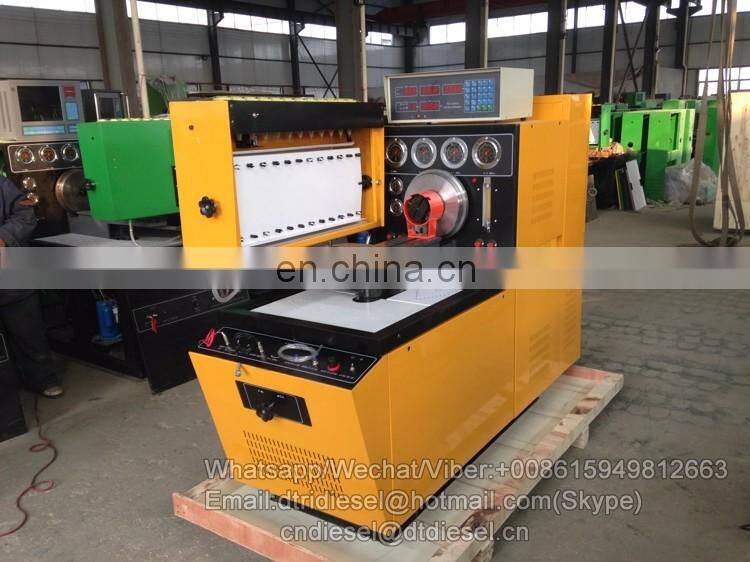

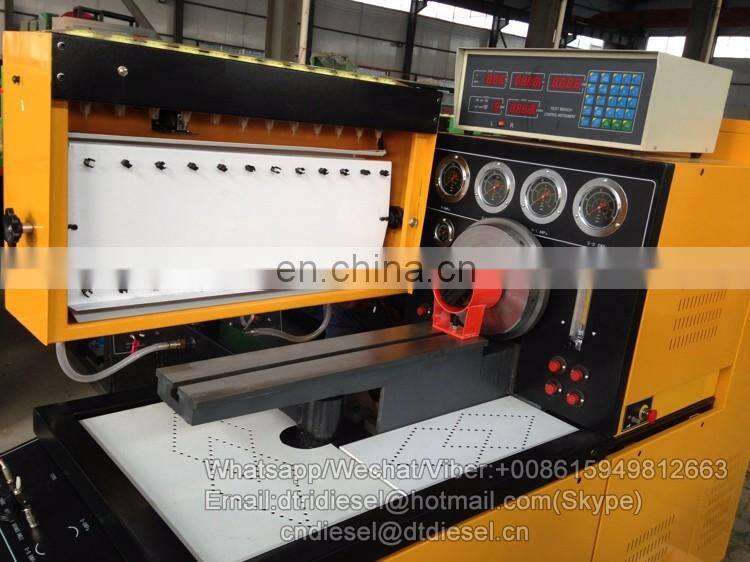

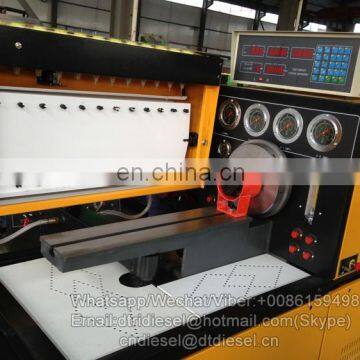

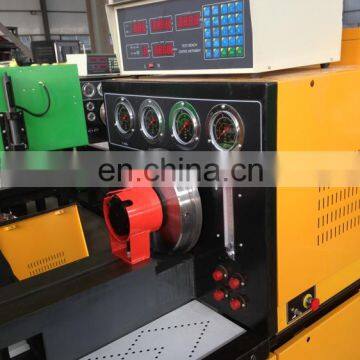

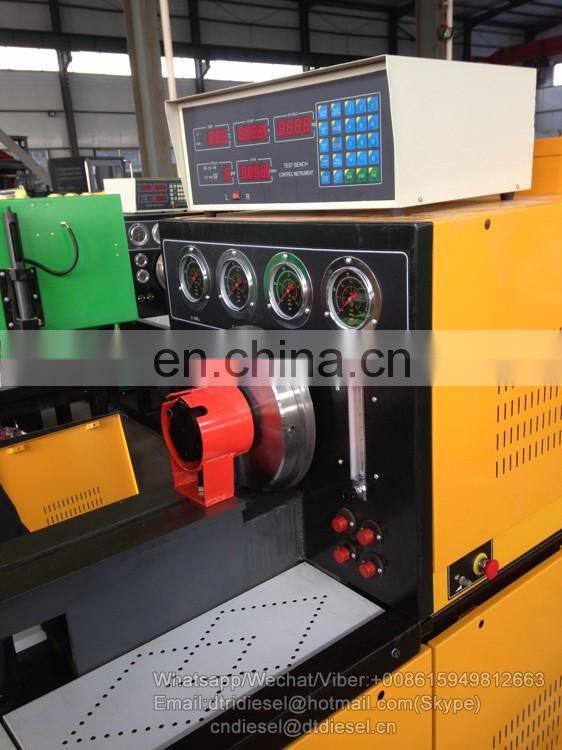

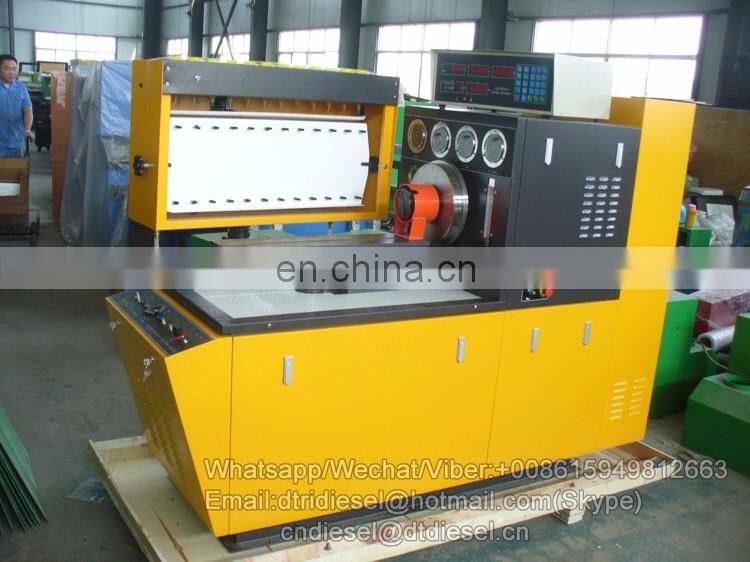

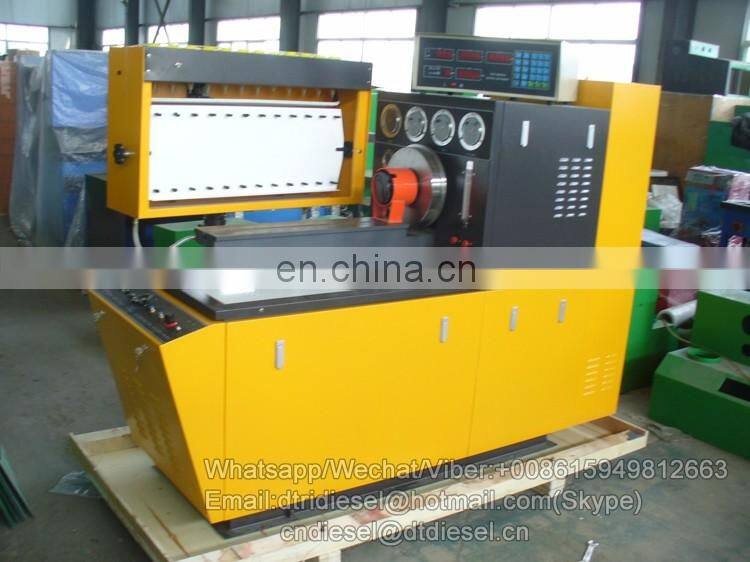

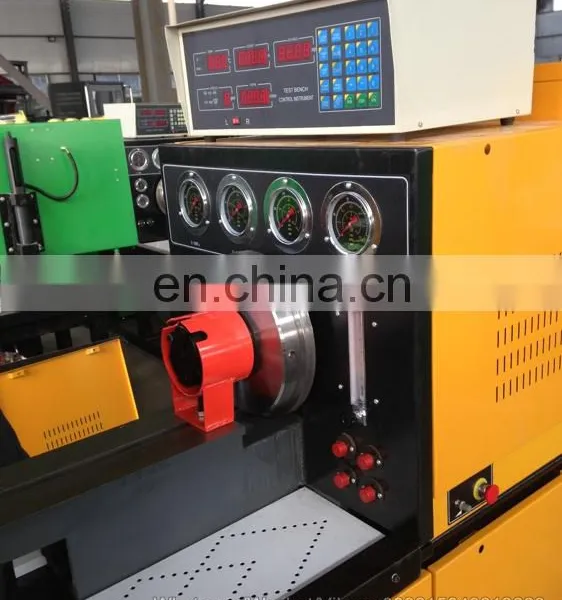

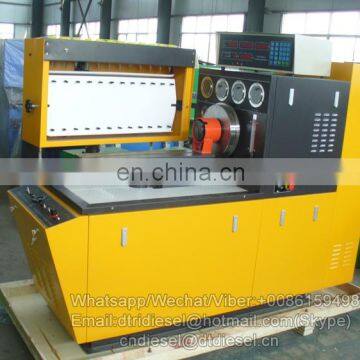

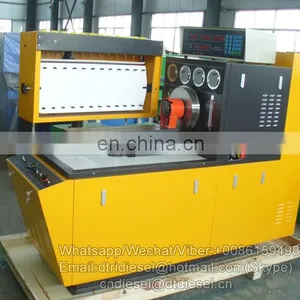

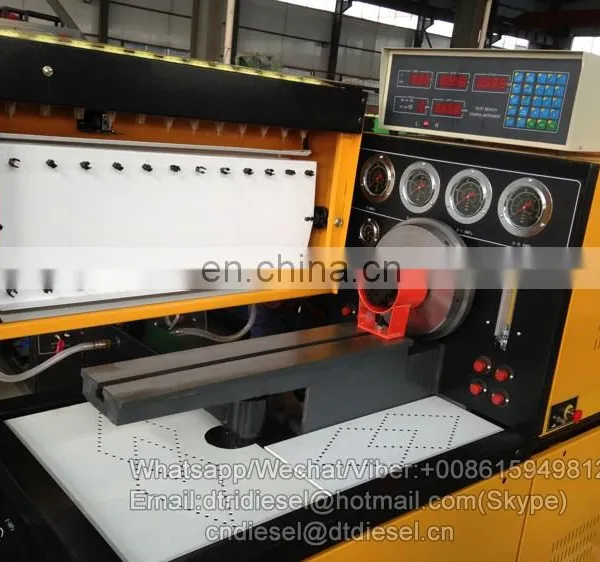

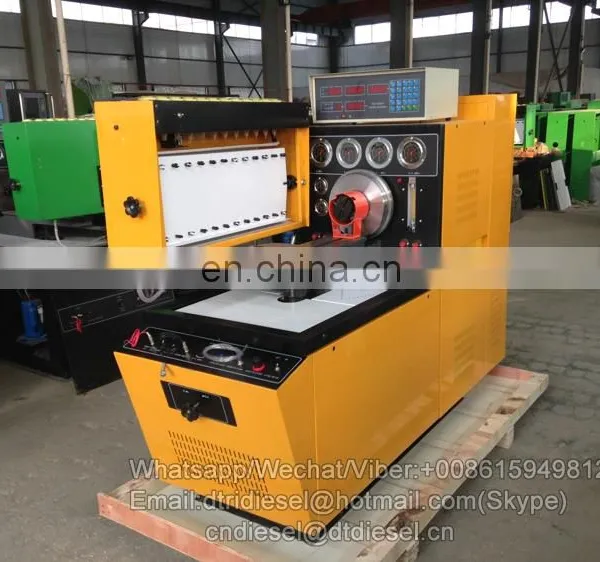

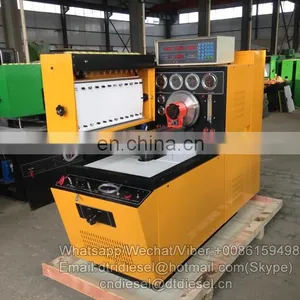

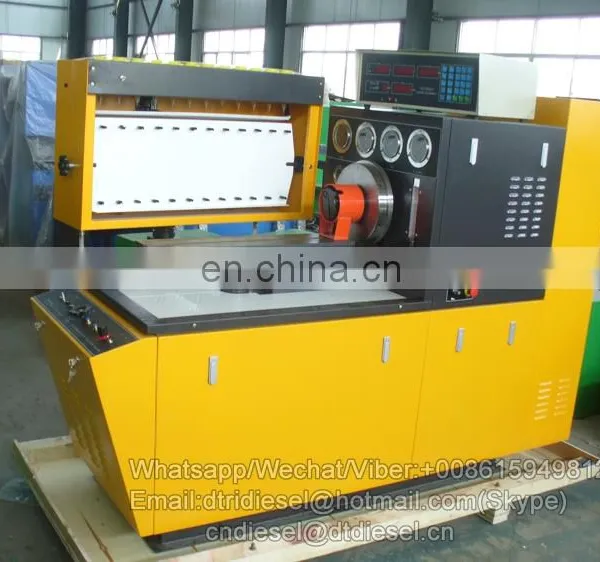

BD850 rabotti diesel injection pump test bench/fuel injection test bench
BD850CMC diesel fuel pump test bench adopts the advanced industrial all-in-one controlling system which is digital controlled of the rpm, temperature, air pressure,
travel of the tooth bar, advanced angle, pump technical parameter and so on.
The test bench is installed with imported original frequency converter which transfers the data.
For more information, please refer to our website.
can test all the rotor and inline pump
FUNCTIONS:
1. Map and check the curve of governor(idle , part and full load ).
2. Checking of the advance device in dynamics.
3. Measurement of each cylinder's delivery at any speed.
4. Checking of each cylinder's injection timing with static.
5. Measurement of rack travel at any speed.
6. Checking of the LDA.
7. Checking of the mechanical governor.
8. Checking of the pneumatic governor.
9. Checking of the vacuum capacity of governor.
10. Measurement of the internal pressure of distributor pump body.
11. Measurement of the reflux delivery of distributor pump.
12. Testing of the electro-magnetic valve of distributor pump.
13. Checking of the transfer pump.
14. Checking of the sealing of injection pump body.
PARAMETERS:
1.Power: 5.5 /7.5/11/15/18.5/22/30KW
2. Electronical supply: 3phase,380V/50HZ (or on request)
3. Interaxe height: 125mm
4. Volume of fuel tank: 60L
5. DC. Supply: 12/24V
6. Feeding fuel pressure: low:0-0.4MPA
high:0-4MPA
7. Range of speed: (+/-)0-4000RPM
8. Control fuel temperature: 40+/-2
9.Test Cylinders: 12cyl.
10. Output air: -0.05-0.3MPA
we can made as your request.
| Packaging Details: | Original package or as your requirement |
| Delivery Detail: | 3-5 days after payment |
>>> Main products include:
1, Diesel engine parts (nozzle, plunger, delivery valve, head Rotor, injector, fuel pump and other accessories)
2, Injection pump test bench
3,auto tools
4 Auto parts
5, special vehicles
6 , Turbocharger.......
Production process using advanced computer control and digital display systems, production technology, strong technical force . High quality, high technical performance, with micro-controller and digital functions. Products are sold more than 100 countries and regions of all world .
