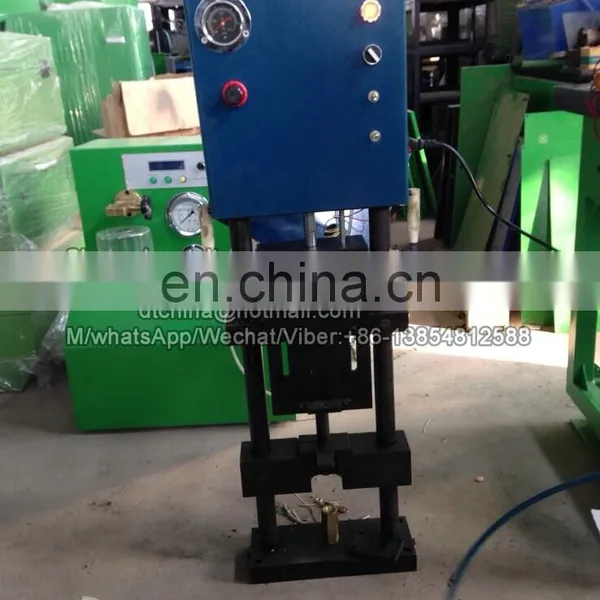

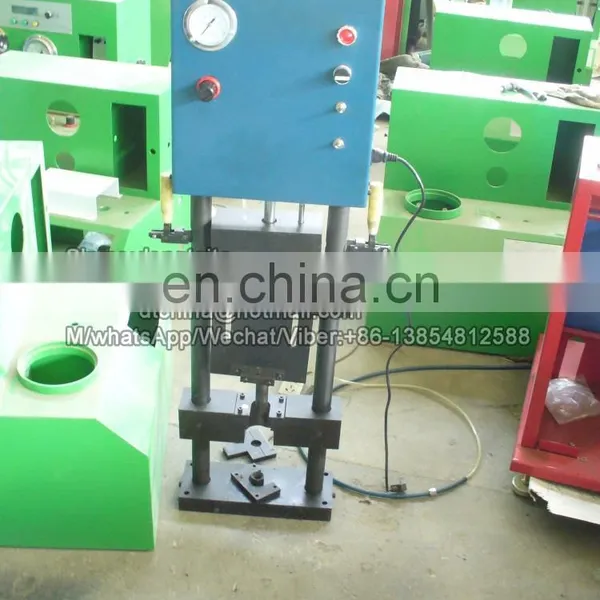

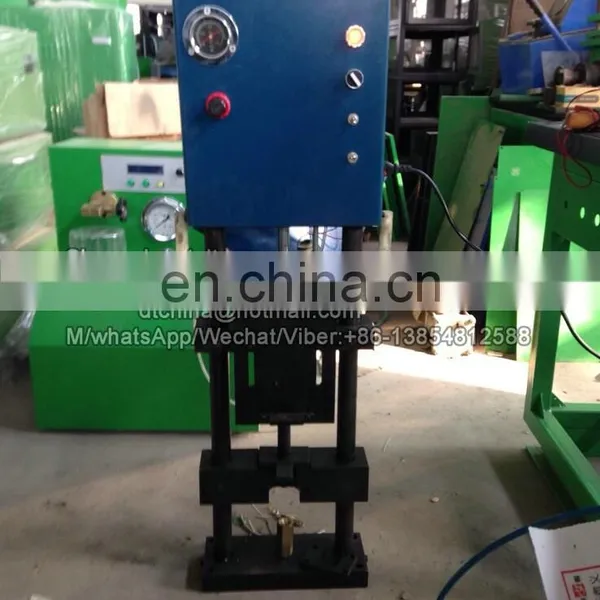

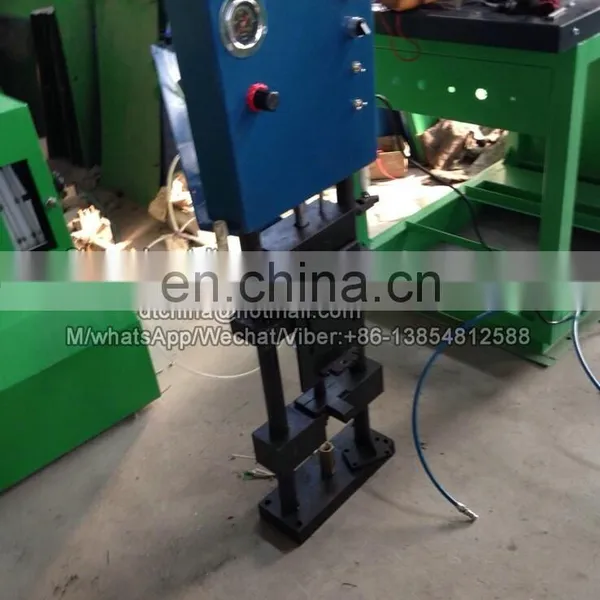

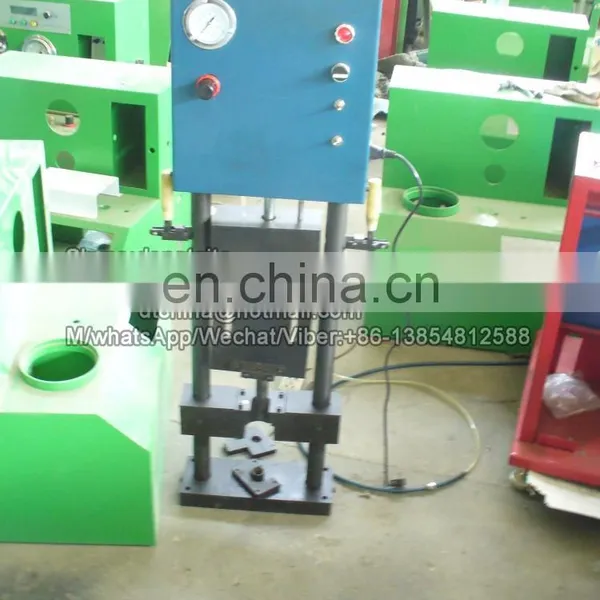

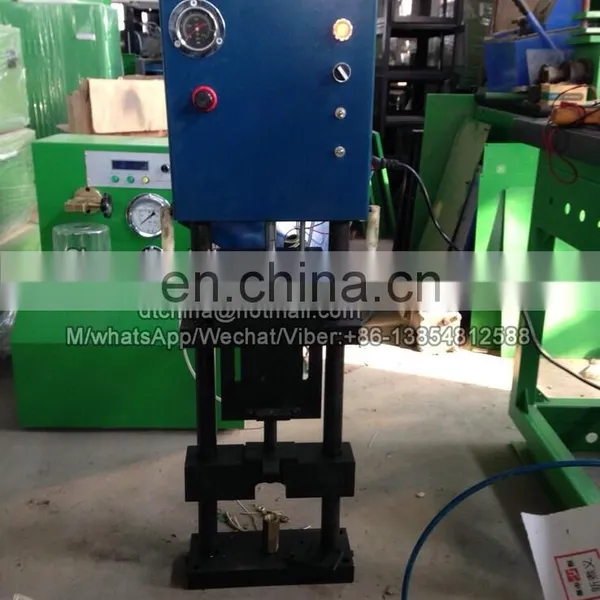

PT101 Top Stop Setting Fixture tools
All PT (type D), STC (HVT), and Hyperbar Top Stop Injectors. Measuring fuel injector volume completed, we must test the injector plunger subassembly. (including STC (HVT) and hypervar top stop injectors). This Top Stop Setting Fixture used to the test of the injector. After the leakage testing of the injector is completed, the injector can beassembles to the point where the plunger top stop, or plunger travel setting can be made.
Description:
Top Stop Setting Fixture – All PT (type D), STC (HBT), and Hyperbar Top Stop Injectors. This bulletin contains the assembly, installation, and Operating instructions for the Top Stop Setting Fixture, Part no.3822696.
Table 1: Top-Stop setting Fixture Part PT101
REFNO |
PART NO. |
DESCPTION |
QTY |
1 |
|
Control panel |
1 |
2 |
|
Upper plate |
1 |
3 |
|
Lower plate |
1 |
4 |
|
Side rails |
2 |
5 |
|
Bottom plate |
1 |
6 |
|
Center plunge |
1 |
7 |
3822745 |
Injector stop nut |
1 |
8 |
|
Indicator arm |
1 |
9 |
|
20LB.Dead weight |
1 |
10 |
3375391 |
Overcenter Clamp |
2 |
|
11
|
|
Measurement System Mounting Plate |
1
|
12 |
3822727 |
L-10 Adapter |
1 |
13 |
3822726 |
Holding Bracket |
1 |
14 |
205462 |
K Injector Plunger Link |
1 |
|
15
|
3025181or 3052233 |
K-STC Injector Plunger Link |
1 1 |
16 |
3822730 |
The Indicator |
1 |
17 |
|
|
1 |
18 |
|
Connecting Cord |
1 |
19 |
|
Power cord |
1 |
20 |
3822733 |
Presetter Mounting Screws |
2 |
The fixture is available in a kit as Part No.3822732. The kit includes the fixture and the following tools:
3375166 Crowsfoot wrench
3376867 Crowsfoot wrench
3822526 Crowsfoot wrench
3375165 NT Stop Screw Adjusting Tool
3376867 L-10 Stop Screw Adjusting Tool
ST-1072 1 1/4 Crowsfoot
Packing Details: Wooden case or Standard Packing
Delivery Details: 5-7 days after payment
Main products include:
1, Diesel engine parts (nozzle, plunger, delivery valve, head Rotor, injector, fuel pump and other accessories) 2, Injection pump test bench 3,auto tools 4 Auto parts 5, special vehicles 6 , Turbocharger.......
Production process using advanced computer control and digital display systems, production technology, strong technical force . High quality, high technical performance, with micro-controller and digital functions. Products are sold more than 100 countries and regions of all world.
