Application:

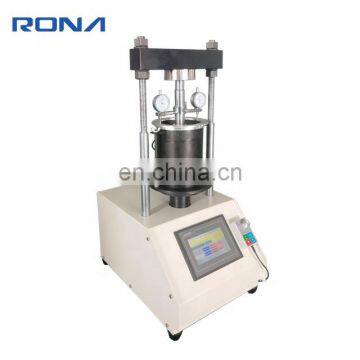

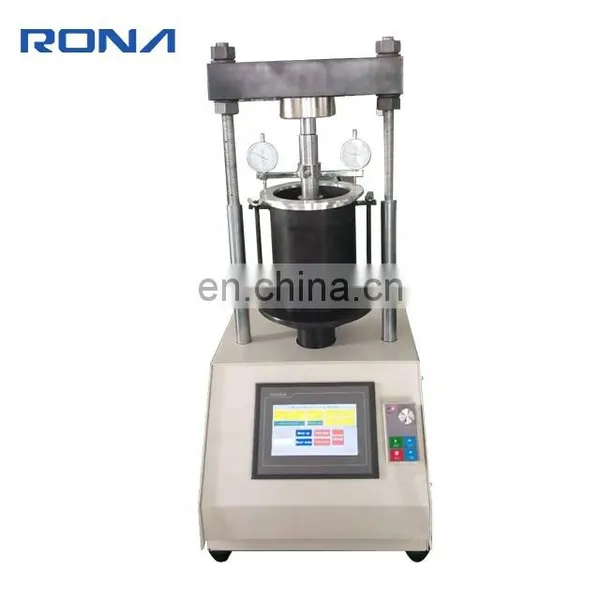

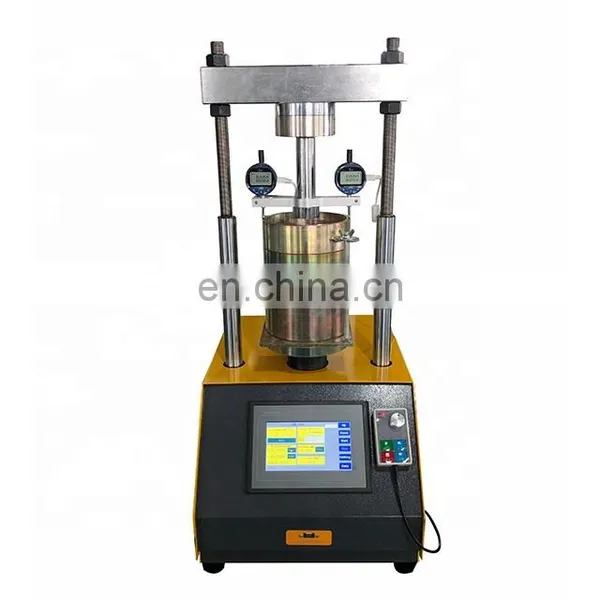

cbr-1 type bearing ratio test instrument is suitable for various soil and mixture (particle size less than 40mm soil) stipulated in the test tube mould compaction after bearing ratio test, to determine the design of the pavement, pavement base, subbase, bearing capacity of subgrade material layer, geotechnical test is necessary one of the instruments. The instrument is composed of a host, their ring and penetration rod, loading plate, dial indicator, expansion amount measurement device etc.. The instrument has the characteristics of small size, large output and easy operation.
Technical reference：
Maximum load |
30kn |
Load speed |
1.0mm/min |
Penetration rod |
Phi 50mm * 100mm |
Worktable travelTable 50mm |
50mm |
Test mode |
Phi 152mm * 170mm |
Load plate |
4 blocks (outside diameter 150mm, diameter Phi 52mm, each 1.25Kg) |
Instrument size |
310 * 310 * 930mm |
Instrument weight |
100kg |
Q: Are you trading company or manufacturer ?
A: We are the manufactory ,in this area for 20years
Q: How long is your delivery time?
A: If the products in stock, generally 5-10 days,.if stockout 15-20 days ,according to the quantity of order.
Q: Do you provide samples ? is it free ?
A: Yes, we could offer the sample for your test , but its not free.Hope to understand the high cost of products for high quality
Q: What is your terms of payment ?
A: Payment amount<=1000USD, 100% in advance. Payment amount >=1000USD, 30% T/T in advance ,balance as the B/L copy
