Help CenterStandard Digital Concrete Mortar Penetration Test Apparatus
Related Products
-
Ultrasonic-rebound Method LCD Digital Concrete Strength Tester in Testing EquipmentUS$ 1,900 - 2,000MOQ: 1 Unit -
Concrete Ultrasonic Rebound Test HammerUS$ 1,600 - 2,000MOQ: 1 Unit
-
Concrete Slump Test Cone Testing ApparatusUS$ 200 - 250MOQ: 1 Unit
-
Rapid Freeze Thaw Temperature Test Chamber in Laboratory for ConcreteUS$ 4,500 - 5,300MOQ: 1 Unit
-
Concrete Rebound Schmidit HammerUS$ 75 - 80MOQ: 1 Unit
Application:
The concrete penetration resistance meter mainly uses the manual penetration resistance method to determine the concrete setting time. It is suitable for all kinds of cement, admixtures and different concrete mix ratios, concrete mixes under different temperature conditions, and the test of setting time. The exterior design is light and beautiful.
The product meets the requirements of GB/T50080 and JTJ053 of the Ministry of Communications.

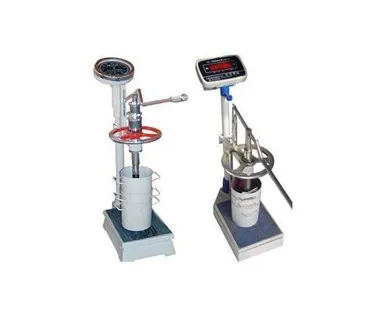

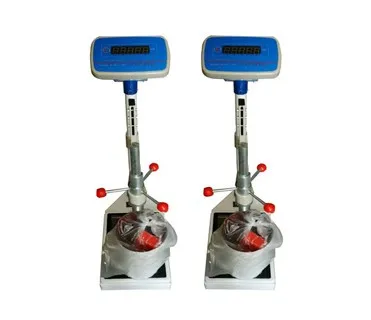

Available in two styles, pointer type and digital display type.
This test method covers the determination of the time of setting of concrete, with slump greater than zero, by means of
penetration resistance measurements on mortar sieved from the concrete mixture.
1.2 This test method is suitable for use only when tests of the mortar fraction will provide the information required.
1.3 This test method may also be applied to prepared mortars and grouts.
1.4 This test method is applicable under controlled laboratory conditions, as well as under field conditions.
1.5 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each
system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the
two systems may result in non-conformance with the standard.
Sample volume(Upper caliber*Lower caliber*Depth） |
φ160mm×φ150mm×150mm |
Maximum penetration |
1000N |
Penetration depth |
25mm |
Penetration speed |
2.5mm/s |
Penetration needle cross section |
100 mm 2、 50 mm2 、20 mm2 |
Penetration position |
9 points on the outer ring and 4 points on the inner ring |
Force measurement method |
Hydraulic and pressure gauge force measurement |
Minimum division value |
5N |
Indication error |
±10N |
Voltage |
AC220V±10%, 50 Hz |
Q: Are you trading company or manufacturer ?
A: We are the manufactory ,in this area for 20years
Q: How long is your delivery time?
A: If the products in stock, generally 5-10 days,.if stockout 15-20 days ,according to the quantity of order.
Q: Do you provide samples ? is it free ?
A: Yes, we could offer the sample for your test , but its not free.Hope to understand the high cost of products for high quality
Q: What is your terms of payment ?
A: Payment amount<=1000USD, 100% in advance. Payment amount >=1000USD, 30% T/T in advance ,balance as the B/L copy
