Concrete Ultrasonic Rebound Test Hammer

Concrete Ultrasonic Rebound Test Hammer photo-1
Concrete Ultrasonic Rebound Test Hammer photo-2

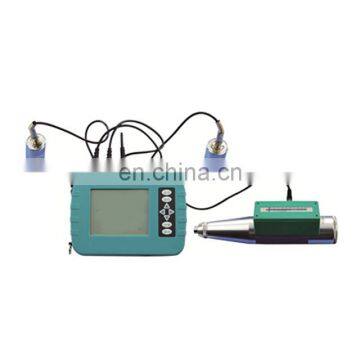

Concrete Ultrasonic Rebound Test Hammer photo-3

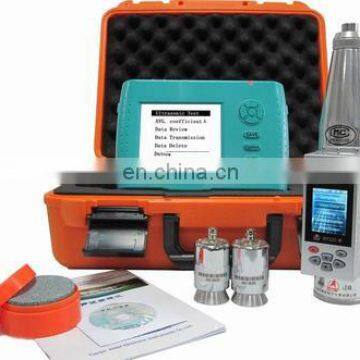

Concrete Ultrasonic Rebound Test Hammer photo-4

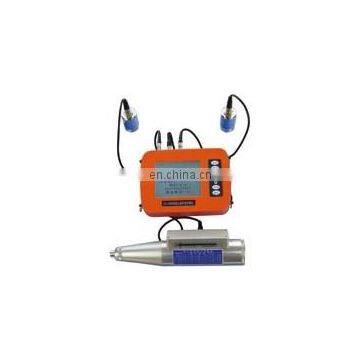

Concrete Ultrasonic Rebound Test Hammer photo-5
US$ 1,600 - 2,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Sansing
Place of Origin:
Zhejiang, China
Model Number:
CHT225-A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Sansing
Place of Origin Zhejiang, China
Model Number CHT225-A
Product Description

Appliactions:

This concrete strength tester is a comprehensive instrument for testing the strength of concrete. It can be used as an ordinary rebound tester or as an ultrasonic rebound comprehensive tester. It can measure the rebound value as well as the sound and sound speed. It is suitable for non-destructive testing of common concrete compressive strength in various construction projects.


Features:

1.lastest upgrade, the use of three anti-shell design, waterproof, dustproof, shockproof.
2. multi-function: You can use the rebound method and ultrasonic rebound method two methods of testing the compressive strength of concrete, either To test the rebound value, but also can measure the sound, the speed of sound, simple and convenient.
3. quality: the use of imported sensors and advanced ARM processor, fast and accurate test, the scene can be divided Get the test results.
4. easy to use: full Chinese interface, and with tips, fast learning can be on-site testing.
5. powerful: the instrument can store 4000 sets of data, while recording the test date, user-friendly view of a management. USB interface can quickly import data into the host computer for analysis and processing.

Technical Parameters
LCD size
5"
Machine size
195x140x45mm
 Out side
Waterproof, dustproof and shockproof
Machine weight
0.85kg
Sound when the indication error
± 0.1μs
Ultrasonic transducer operating frequency
50KHz
The rebound instrument nominal kinetic energy
2.207J
shell strike spring stiffness
785.0 ± 30.0 (N / m)
The impact of the pull spring stretch length
75.0 ± 0.3 mm
The difference between the pointer reading and digital value
≤ ± 0.5
The rebound value of the average rate of anvil
80 ± 2
The working temperature
-10 ℃ ~ +40 ℃
Power supply
Large capacity lithium battery, power supply time >10 hours
Packing
42X14X33.5CM
Weight
5.5kg
Product Show
Our Company
Certifications
Packing & Delivery
FAQ

Q: Are you trading company or manufacturer ?
A: We are the manufactory ,in this area for 20years

Q: How long is your delivery time?
A:  If the products  in stock, generally 5-10 days,.if stockout 15-20 days  ,according to the  quantity of  order.

Q: Do you provide samples ? is it free ?
A: Yes, we could offer the sample for your test , but its not free.Hope to understand the high cost of products for high quality

Q: What is your terms of payment ?
A: Payment amount<=1000USD, 100% in advance. Payment amount >=1000USD, 30% T/T in advance ,balance as the B/L copy
