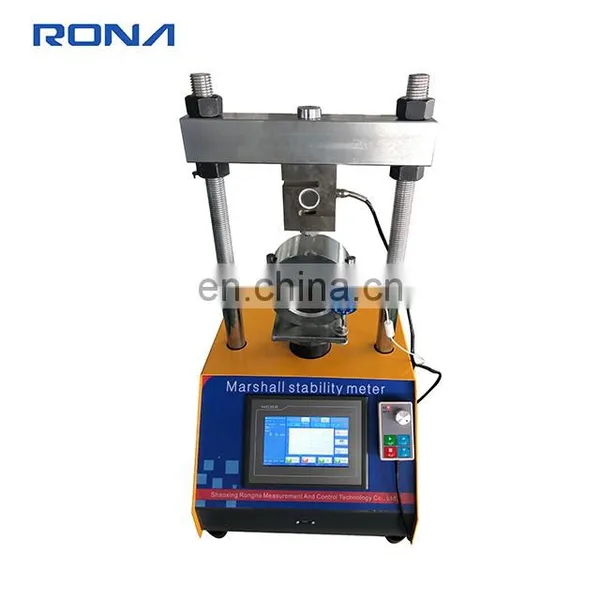

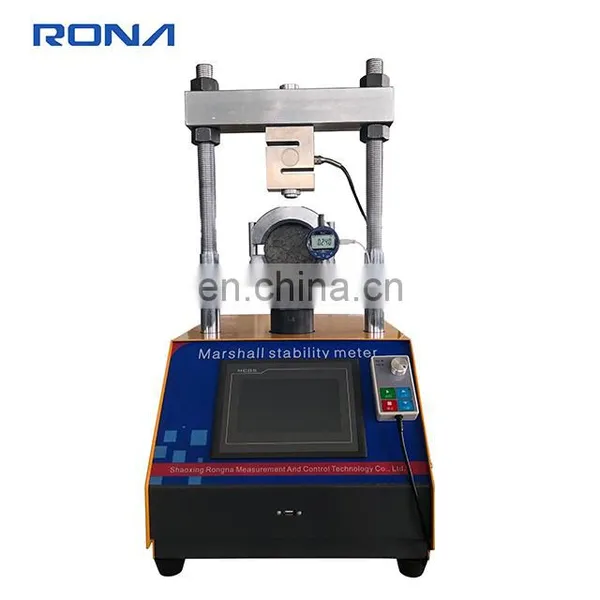

Help CenterAsphalt Marshall Stability Testing Machine for Asphalt Mixture of the Destruction Point
Related Products
-
Marshall Compactor Stability Machine CompactorUS$ 900 - 1,500MOQ: 1 Unit -
Improved Asphalt Mixture Mixer ApparatusUS$ 830 - 860MOQ: 1 Unit
-
Full Automatic Asphalt Mixers Mixing MachineUS$ 830 - 860MOQ: 1 Unit
-
Asphalt Bitumen Astm d 2872 Rolling Thin Film Oven Equipment for RTFOT TestUS$ 870 - 920MOQ: 1 Unit
-
ASTM D6925 Automatic Asphat Mixer Gyratory Compactor for Asphalt MixtureUS$ 15,600 - 18,000MOQ: 1 Unit
Application:
This equipment is suitable for Marshall stability test and water immersion Marshall stability test. It can accurately judge the failure point of asphalt mixture to carry out the mix design of asphalt mixture or the quality inspection of asphalt pavement construction. Displaying various test data and printing test data is intuitive and convenient. With full digital calibration pressure and flow value, there is no need to manually adjust the potentiometer; there is overvoltage automatic protection function, and there is no damage to the instrument due to overpressure. It is mostly used in various asphalt production enterprises, highway and bridge construction units, and related universities and research institutes.
Feature:
1. With overload protection and falling over position protection.
2. Easy to operate, accurate test data, stable and reliable performance.
3. The instrument automatically tests, displays and prints the stability and the corresponding flow value, and draws the coordinate curve of the specimen under stress deformation.
4. The test results of 15 sets of test pieces can be stored.

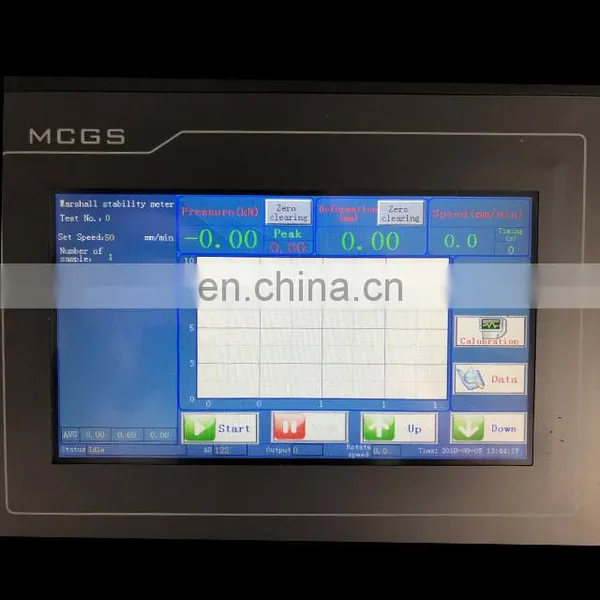

5. Large LCD screen display curve and stability and flow value.
6. There are two types of flow detection: single and double.
7. The test is automatically controlled by the instrument or computer. The data and curve of the test piece under pressure deformation are automatically saved and displayed by the computer, and can be printed out by the printer.
8. Advanced automatic analysis software, according to the "asphalt mixture mix design method" to draw a variety of curves, automatically give the best amount of asphalt, can be output through the printer.
9. you can choose a large indenter to do the big Marshall test, you can also choose a double indenter to do two kinds of tests.
10. The machine is equipped with a USB interface.
11. Optional serial port, PC software can be analyzed and processed.
Rising rate |
(50 ± 5) mm / min |
Indenter diameter |
(101.6 ± 0.2) mm (152.4 ± 0.2) mm |
Maximum pressure |
30KN/50KN Accuracy: 1% |
Flow range |
0-15.00mm Accuracy: ±0.1mm |
Ambient temperature |
≤30°C |
Relative humidity |
≤85% |
Machine power consumption |
700W |
Dimensions |
700x500x900mm |
Instrument net weight |
100 kg |
Power supply voltage |
220V |
Q: Are you trading company or manufacturer ?
A: We are the manufactory ,in this area for 20years
Q: How long is your delivery time?
A: If the products in stock, generally 5-10 days,.if stockout 15-20 days ,according to the quantity of order.
Q: Do you provide samples ? is it free ?
A: Yes, we could offer the sample for your test , but its not free.Hope to understand the high cost of products for high quality
Q: What is your terms of payment ?
A: Payment amount<=1000USD, 100% in advance. Payment amount >=1000USD, 30% T/T in advance ,balance as the B/L copy
