ASTM D1525 Computer Control Plastic Vicat Needle Apparatus for Softening Temper

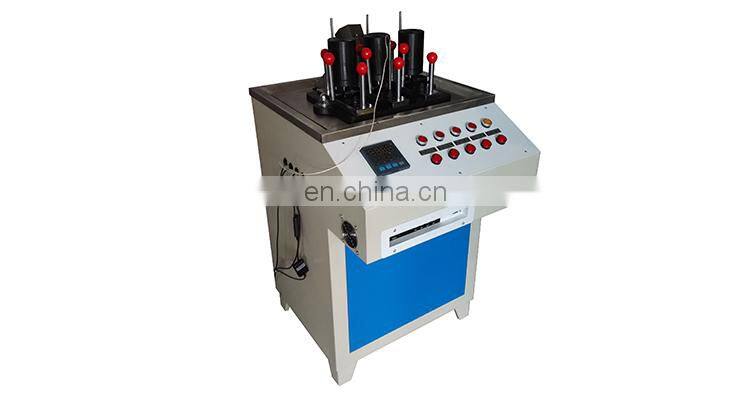

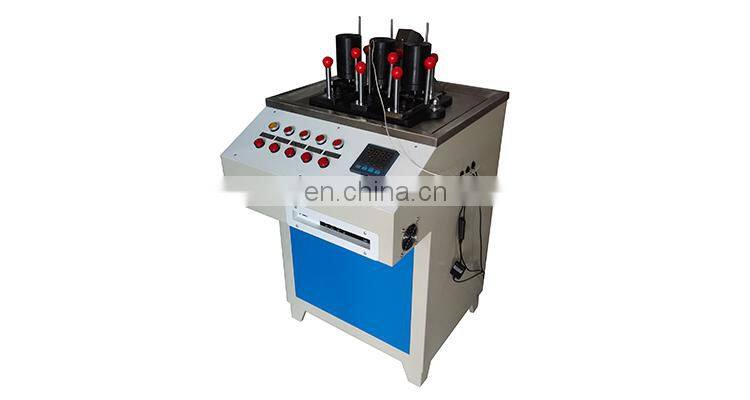

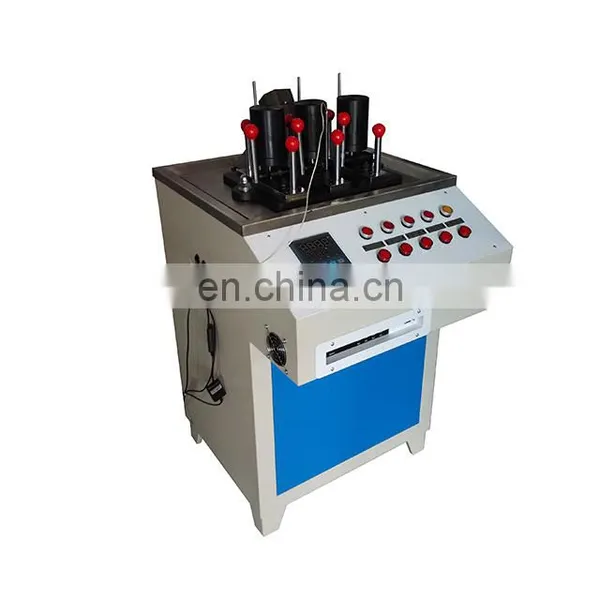

ASTM D1525 Computer Control Plastic Vicat Needle Apparatus for Softening Temper photo-1

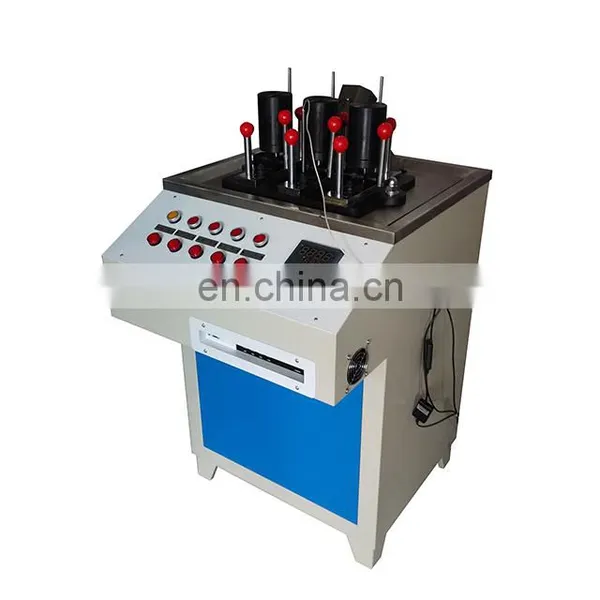

ASTM D1525 Computer Control Plastic Vicat Needle Apparatus for Softening Temper photo-2
US$ 3,100 - 3,800 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Sansing
Place of Origin:
Zhejiang, China
Model Number:
ZJXS-300A/B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Sansing
Place of Origin Zhejiang, China
Model Number ZJXS-300A/B
Power Electronic
Product Description

Application:

It is widely used in the determination of thermal deformation temperature (HDT) and VST temperature (VST) of thermoplastic, hard rubber and long fiber reinforced composites.


Features:

1.Real-time display, temperature control, measurement, alarm and print output of experimental results
2. Cabinet type (vertical) structure, the sample frame can be automatically raised and lowered
3. The machine will stop automatically after finish the test
4. Can view the test curve in real time, and analyze the relationship between temperature and displacement

Technical Parameters
Temperature control range
Room temperature - 300 ℃
Heating rate
50 ℃ / h
The maximum temperature measurement deviation
+ 0.5 ℃
The maximum temperature control deviation
+ 0.5 ℃ / 6 min
Maximum deformation measurement range
10mm
Maximum deformation measurement deviation
+0.01mm
Number of sample frames
3
Heating medium
silicone fluid (model - 200 CST, flash point above 300 ℃)
Maximum heating power
5kw
Lift motor power
250W
Stirring motor power
90W
Cooling method
above 150 ℃ by air (optional)
Below 150 ℃ by water (optional)
Main power supply
three-phase five-line zero-wire ground line 380V+ 10%, 30A, 50HZ
Negative load
50N
