Application:
Vicat Apparatus is designed to determine the initial and final setting time of cement and mortar paste.
The Vicat frame consists essentially of a metal stand with a sliding rod. An adjustable indicator moves over a graduated scale. The needle or plunger is attached to the bottom end of the rod to make up the test weight of 300 g.
Features:
Adjustable indicator measures at either orientation on 0-50 x 1mm scale

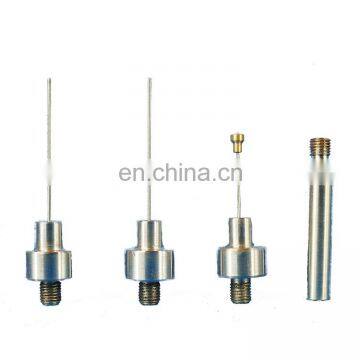

Reversible stainless steel rod has 10mm plunger on one end and 1mm double-threaded needle on the other
Included Items:
* Standard Vicat Apparatus
* Double-ended Plunger and Needle Assembly
* Conical Plastic Mold
* Glass Plate
Standard:
EN 196-3 | EN 480-2 | ASTM C191 | AASHTO T131
Sliding part weight |
300±1g |
Sliding part max travel |
70mm |
Consistence test rod diameter |
φ10±0.05mm |
Test needle diameter |
φ1.13±0.05mm |
Overall size(L×W×H) |
170×110×300mm |
Net weight |
approx 3.8kg |
Sliding rod |
1pc, 12mm+0.02mm-0.10mm |
Standard consistency test needle |
Effective length 50mm±1mm, dia. 10mm±0.5mm |
Initial setting test needle |
Effective length 50mm±1mm. dia. 1.13mm±0.5mm |
Final setting test needle |
Effective length 30mm±1mm dia. 1.13mm±0.5mm |
Readout pointer |
1pc |
Q: Are you trading company or manufacturer ?
A: We are the manufactory ,in this area for 20years
Q: How long is your delivery time?
A: If the products in stock, generally 5-10 days,.if stockout 15-20 days ,according to the quantity of order.
Q: Do you provide samples ? is it free ?
A: Yes, we could offer the sample for your test , but its not free.Hope to understand the high cost of products for high quality
Q: What is your terms of payment ?
A: Payment amount<=1000USD, 100% in advance. Payment amount >=1000USD, 30% T/T in advance ,balance as the B/L copy
