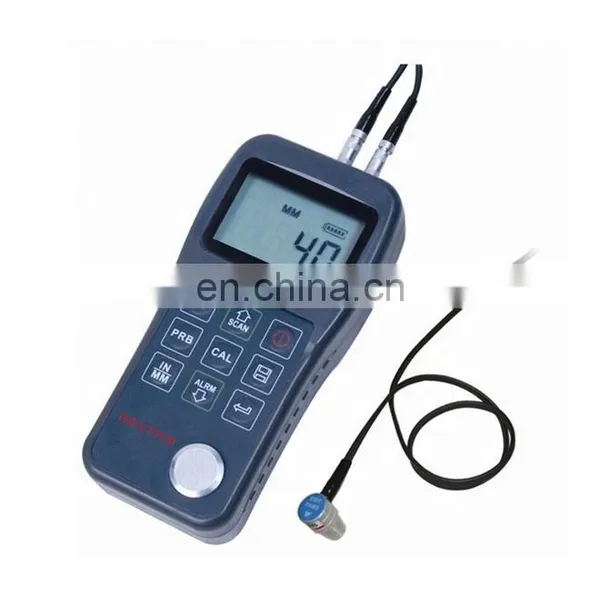

Ultrasonic Thickness gauge TBT-UTT150
I. Feature
1. Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.
2. Transducer models are available for special application, including for coarse grain material and high temperature applications.
3. Two-Point Calibration function.
4. Two work modes: Single point mode and Scan mode.
5. Coupling status indicator showing the coupling status.
6. Auto sleep and auto power off function to conserve battery life.
II. Configuration
|
|
No. |
Item |
Quantity |
Remarks |
|
Standard Configuration |
1 |
Main body |
1 |
|
|
2 |
Transducer |
1 |
Model: N05/90° |
|
|
3 |
Couplant |
1 |
|
|
|
4 |
Instrument Case |
1 |
|
|
|
5 |
Operating Manual |
1 |
|
|
|
6 |
Alkaline battery |
2 |
AA size |
|
|
Optional Configuration |
7 |
Transducer: N02 |
|
|
|
8 |
Transducer: N07 |
|
||
|
9 |
Transducer: HT5 |
|
III. Specification
1. Display: 4.5 digits LCD with EL backlight.
2. Measuring Range:0.75~300mm (in Steel).
3. Sound Velocity Range: 1000~9999 m/s.
4. Resolution: 0.1mm.
5. Accuracy: ±(0.5%Thickness+0.04)mm, depends on materials and conditions
6. Units:Metric/Imperial unit selectable.
7. Four measurements readings per second for single point measurement, and ten per second for Scan Mode.
8. Memory for up to 20 files (up to 99 values for each file) of stored values.
9. Power Source:Two “AA” size, 1.5 Volt alkaline batteries. 100 hours typical operating time (EL backlight off).
10. Outline dimensions:150×74×32 mm. Weight:245g
We can make and manufacture products according to customer specific needs.
provide best and professional service for you, pls contact with us freely;
Stable performance, best price, good quality , good after-sales service
Usage: NDT products
Product name: Ultrasonic Thickness Gauge TBT-UTT150, China Ultrasonic Thickness Gauge
