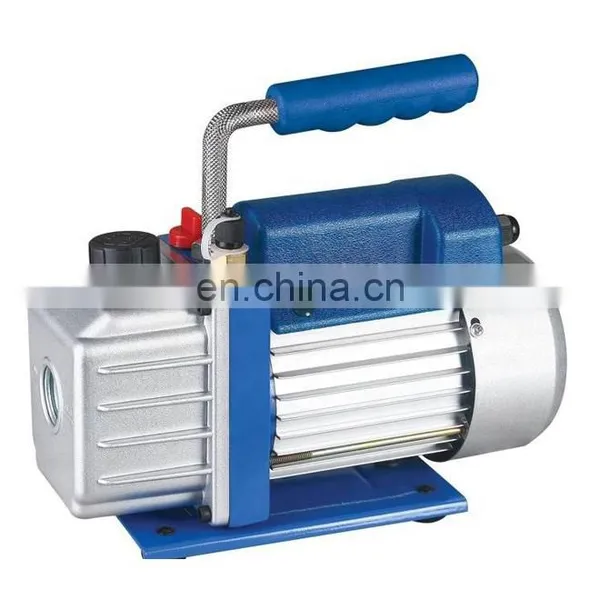

RS-1 single stage vacuum pump
1. Feature
a ,oil return design
Air inlet passage for the special design, can prevent the pump is stopped pumping oil reflux and pollution by pumping the container and pipe.
B,environmental protection design
Tank for layer is disposed, and the exhaust port is arranged on the oil and gas separating device, without fuel and reduce oil mist pollution.
C, aluminum alloy electric machine casing
Motor with aluminum alloy shell, has high heat efficiency, ensure the long time continuous normal operation, and has good appearance quality.
D,integrated design
With the pump adopts the integrated design, make the product more compact and reasonable.
E ,large starting torque
This product in the low temperature environment for the special design, guarantee in winter temperature is low in the case of normal starting.
F ,the use of shockproof rubber feet, reducing vibration and noise
2. Technical Data
Model |
RS-1 |
RS-2 |
RS-4 |
|
Pumping m3/h (L/S) |
50HZ |
2(0.5) |
4(1.1) |
8(2.2) |
60HZ |
2.3(0.6) |
4.7(1.3) |
9.5(2.6) |
|
Ultimate Pressure(Pa) |
Pa |
10 |
10 |
10 |
Microns |
75×10-2 |
75×10-2 |
75×10-2 |
|
Mbar |
0.1 |
0.1 |
0.1 |
|
Rotary speed (r/min) |
50HZ |
1440 |
1440 |
1440 |
60HZ |
1720 |
1720 |
1720 |
|
Motor power (kw) |
0.12 |
0.25 |
0.25 |
|
Voltage (v) |
220 |
220 |
220 |
|
Inlet Diameter (O.D)(mm) |
Φ8 |
Φ12 |
Φ12 |
|
The noise (dBA) |
≤56 |
≤56 |
≤56 |
|
Oil cap0acity (L) |
0.25 |
0.25 |
0.45 |
|
Dimensions (mm) |
275×114×207 |
315×128×237 |
387×147×263 |
|
Weight (kg) |
9/8 |
12/11 |
19/18 |
|
Trade Assurance Supplier:
What is Trade Assurance?
Trade Assurance is a free payment protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract.
Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.
We supports Trade Assurance.
Follow the Trade Assurance process and get:
On-time shipment and pre-shipment product quality safeguards
Payment refund up to 100% of the Trade Assurance Order Amount
Warranty: 1 year
Perfect After Sales Service
Effective and strong support all the customers;
Before shipment, we will do final inspection, ensure everything going smoothly;
