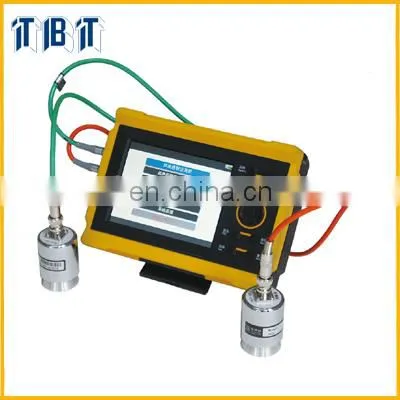

Ultrasonic Flaw Detector Concrete Flaw Detector
- 1000 Set / Sets per Month
- Any China Seaport
- T/T Credit Card
- Good Quality Mechanical Dynamometer
- SDT-60 Portable digital soil ph meter can direct insert the soil test
- soil ph and moisture meter tester
- soil ph meter
- Metal material 50-300m PIEZOMETER DIP WATER LEVEL METER
- TBT Portable Crack width Measurement Microscope for measuring crack width of bridge road tunnel
Product Details
Brand Name: | TBT | Place of Origin: | Jiangsu, China | Model Number: | TBT-5100 |
Product Description

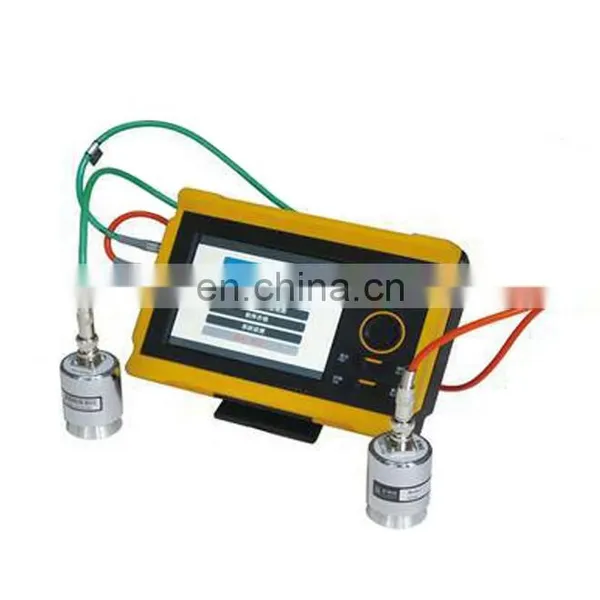

Ultrasonic Detector
I. Usage
1. Quick detection of the integrity of foundation pile continuous wall with Ultrasonic Penetration Method;
2. Testing depth of concrete fractures, quality of combined surface, thickness of surface damage layer, internal defect of steel pipe concrete, empty areas, and cellular empty with Ultrasonic Method;
3. Testing pressure strength of concrete with Ultrasonic -Test Hummer Method;
4. Testing the mechanical properties of nonmetal materials such as Geological survey, rock, concrete, etc.
II. Features
1.Super power emission,Ultra low noise receive,first-wave auto gain control system, the face-test penetration range can reach 10M in undefect concrete;
2. Accurate and rapid automatic read-in and analysis of acoustic wave transit time and fluctuation range guarantees the reliability and efficiency of the test data, and markedly improves the detection speed
3. Real-time display and automatic saving of the plotted graph of pile integrity, the location of test points, the acoustic wave transit time of the first wave, the waveform, the wave range etc., without losing interruption of power supply;
4. Arbitrarily retest and redisplay of the sampling waveform of every test point. Preventing the error in on-site testing and on-site judgment. Convenient and rapid;
5. System provide private port for the power supply to radical transducer, convenient,safe;
6. High-reliability industrial-grade dedicated control system, high definition, bright, and large-size TFT true color LCD, with stable and reliable performance;
7. Internal high energy lithium battery, instant charging (no memory), capable of outdoor continuous operation over extended time periods;
8. Standard USB ports, support U disk;
9. Small size, light weight (less than 1.8kg ), mobile;
10. Professional analysis-processing software generates and prints test reports.
III. Technical specifications
Item | Specifications | Item | Specifications | ||
Control Mode | Internal A8 Industrial control board | Screen | 5.7inch,high brightness TFT LCD screen | ||
Data storage | Internal | Operation Mode | Touch screen and button | ||
Signal collecting mode | Automatic continuous collection | Channels | 1 emitter+1 receiver | ||
Trigger | signal | Sampling interval | 0.025μs~1638.4μs adjustable | ||
Acoustic transit time accuracy | 0.025μs |
| ±1677.7ms | ||
Dynamic range | 154dB | Amplifier bandwidth | 3~450kHz | ||
Receiver sensitivity | ≤10μv | Gain error | 0.5dB | ||
Emission voltage(V) | 65,250,500,1000 V adjustable |
|
| ||
Data transmission | USB,MiniUsb,Wi-Fi,Bluetooth | Size(mm) | 210×149×60 | ||
Power | Internal | Built-in lithium battery | Operational environment | Temperature | -10℃~+40℃ |
External | 220V AC/DC | Humidity | <90%RH | ||
Weight | 1.36kg(lithinum battery included) | Battery time | >5h |
