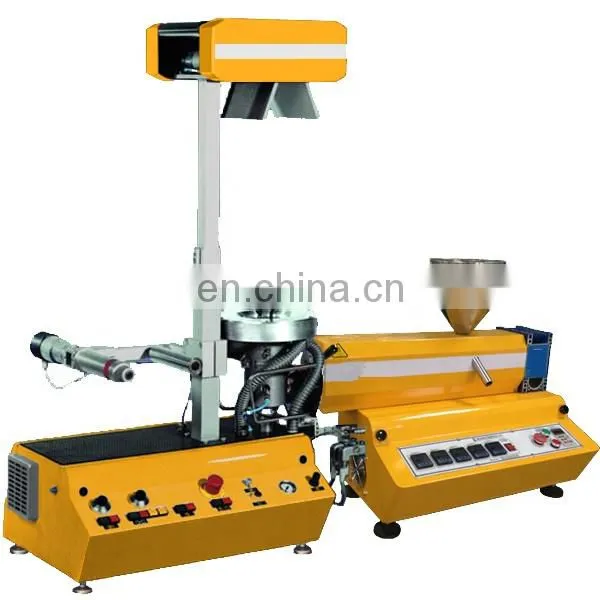

TBTFB-8178T LAB FILM BLOWING MACHINE(BENCH TOP TYPE)
1. DESCRIPTION:
This machine structure is compact, simple operation, sibgle and multi-layer blown film, can be applicable to all polimer dispersion research.
- 2. MAIN SPECIFICATION:
Single Screw Extruder
|
Screw diameter |
20 |
|
Rotation speed of screw |
0-95 rpm |
|
Length ratio |
1:28 |
|
Main Motor |
2.2KW |
|
Screw material |
38CrMoAL chromium-molybdenum steel |
|
Reduction Ratio |
1:1.15 |
|
Volume W×D×H |
Around 1000*600*750mm |
|
Power supply |
AC380V, 3 phase |
Film Blowing Tower
|
Die diameter |
30 |
|
Air blowing |
Compressed air 0-5bar |
|
Air cooling |
Air blower flow 20L/min |
|
Traction roller size |
60*300mm |
|
Traction winding speed |
0.5-2m/min |
|
Max film folding diameter |
100mm |
|
Traction motor |
50W |
|
Winding torque motor |
2.5N.m |
|
Fan |
0.15Kw |
|
Dimension |
600*556*1550mm |
|
Power supply |
AC380V, 3 phase |
|
Weight |
215kg |
