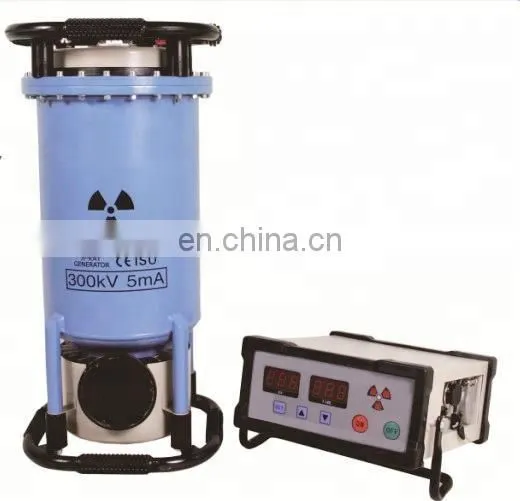

Portable X-ray NDT Weld Flaw Detector Inspection
Detail information
(1) Portable X-ray NDT Weld Inspection has Small volume, Light Weight, easy to take and simplicity of operation
(2) Safe and reliable generator adopts design of SF6 gaseous insulator, grounded-anode, and fan forced cooling .
(3) Controller adopts design of hardware with a wide operative range, having the advantage of long service and low failure rate.
(4) Excellent anti-jamming performance. Capable to operate from 150V to 250V voltage.
(5) Possess the reliable “Time –delayed” fiction, suitable to operate in the open field.
(6) High degree of automation, with the fiction of trouble self shooting and indication.
(7) Strictly followed with 1:1 working /resting radio
(8) The HV windings made by imported enamel wire are applied in the X-ray generator, so as to make the quality of the complete equipment improved a great deal.
Parameters
Weld Inspection
Model |
weld inspection XXG-Series |
Output Voltage |
160kv, 200kv, 250kv, 300kv,350kv |
Tube |
ceramic tube |
Beam Angle |
directional 40° |
Output Current |
5mA |
Penetration(A3 Steel) |
0-70mm |
Power Supply |
Battery Pack |
Insulating Material |
SF6 gas |
Save Pressure |
0.35-0.50MPa |
Working Temperature |
-25°~+40° |
Cooling |
air fan cooling |
Relative Humidity |
≤85% |
weld inspection XXQ- Series
Model |
weld inspection XXQ-Series |
Output Voltage |
100kv,160kv,200kv,250kv,300kv,350kv |
Tube |
glass tube |
Beam Angle |
directional 40° |
Output Current |
5mA |
Penetration(A3 Steel) |
0-70mm |
Power Supply |
Battery Pack |
Insulating Material |
SF6 gas |
Save Pressure |
0.35-0.50MPa |
Working Temperature |
-25°~+40° |
Cooling |
air fan cooling |
Relative Humidity |
≤85% |
weld inspection XXHA- Series
Model |
weld inspection XXHA-Series |
Output Voltage |
160kv, 200kv, 250kv, 300kv,350kv |
Tube |
glass tube |
Beam Angle |
panoramic 360°x40° |
Output Current |
5mA |
Penetration(A3 Steel) |
0-50mm |
Power Supply |
Battery Pack |
Insulating Material |
SF6 gas |
Save Pressure |
0.35-0.50MPa |
Working Temperature |
-25°~+40° |
Cooling |
air fan cooling |
Relative Humidity |
≤85% |
Warranty: 1 year
Perfect After Sales Service
Effective and strong support all the customers;
Before shipment, we will do final inspection, ensure everything going smoothly;
