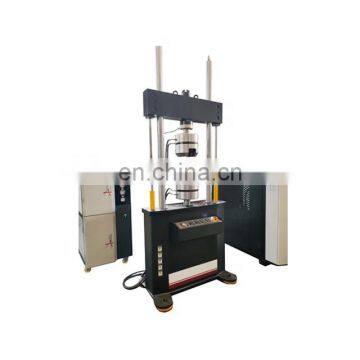

Static and Dynamic Universal Testing Machine
Model: TBTTLDJ-1
I. Description:
TBTTLDJ-1 microcomputer controlled electro-hydraulic servo dynamic and static universal testing machine is suitable for fatigue test and static mechanical performance test of metal and non-metallic materials, including materials and parts tensile, compression, low-cycle and high-cycle fatigue tests. The test machine can perform the following tests:
1. Test the elastic stiffness, static stiffness, fatigue test and other items of rubber and plastic parts, isolator and other elastic components.
2. Fix different attachment, it can do dynamic and static mechanical performance tests of metal materials and other components.
II. Main Configuration:
1. High rigidity double-column door-type main loading frame;
2. Intelligent constant voltage mute power source;
3. Full digital dynamic and static control system;
4. English computer operation application software;
5. Advantech industrial computers and printers;
6. Test related conventional aids.
III. Main Specification:
Model |
TBTTLDJ-1 |
Maximum test force KN (dynamic and static) |
±120 |
Load frame |
Two columns / four columns |
Effective column width |
600 |
Test space |
800 |
Test force measurement range |
dynamic 2%~100%FS |
Force accuracy and fluctuation |
better than the indicated value of 1%; amplitude fluctuation is not greater than ± 1% of each range |
Test force resolution |
1/250000 yards |
Test force indication accuracy |
± 1% dynamic; 0.5% static |
Displacement measurement range |
100mm(±50mm) |
Displacement measurement resolution |
0.001mmm |
Displacement indication accuracy |
within 1% of indication accuracy within ± 0.5% FS |
Deformation Indication accuracy |
From 2%, within ± 0.5% |
Frequency range |
0.01-30HZ |
Main wave |
Sine wave, pulse wave, square wave, sawtooth wave, random wave (mainly supported by the controller) |
Auxiliary |
force flat push clamp, with tensile bar and side jaw Compression aid |
Oil cooler |
Maximum motor power: 20kW; Refrigeration power: 58kW |
Trade Assurance Supplier:
What is Trade Assurance?
Trade Assurance is a free payment protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment if your order is not shipped on time, or if the pre-shipment product quality (optional) does not match the terms agreed on your contract.
Your payment is protected up to 100% of an amount - agreed between you and the supplier - called the Trade Assurance Order Amount.
We supports Trade Assurance.
Follow the Trade Assurance process and get:
On-time shipment and pre-shipment product quality safeguards
Payment refund up to 100% of the Trade Assurance Order Amount
Warranty: 1 year
Perfect After Sales Service
Effective and strong support all the customers;
Before shipment, we will do final inspection, ensure everything going smoothly;
