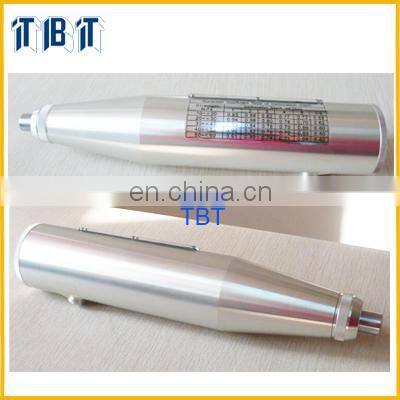

Brick Testing Resiliometer / Concrete Test Hammer
US$ 70 - 100
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
TBT
Place of Origin:
China
Model Number:
TBT-TH02
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
N Type Psi Compressive Strength Concrete Type n Test Hammer NDT Tester HT-225US$ 90 - 105MOQ: 1 Unit -
1000kN Creep Testing Rig and Hydraulic Jack Testing MachineUS$ 6,000 - 10,000MOQ: 1 Set
-
Strong Easy Detachable 100*200 Steel Cylinder Mould for ConcreteUS$ 50 - 80MOQ: 1 Piece
-
Concrete Steel Three Gang Concrete Cube Test MouldUS$ 30 - 50MOQ: 1 Set
-
T-BOTA Different Size Concrete Test Steel Beam MouldUS$ 80 - 200MOQ: 1 Set
Brand Name
TBT
Place of Origin
China
Model Number
TBT-TH02
Power
Hydraulic
Concrete Test Hammer
Description
It’s applied to test the compressive strength of building concrete components, bridge and so on. Concrete Test Hammer is designed specifically for the non-destructive testing of concrete structures.
Main specifications
|
Test range |
10~60Mpa |
|
Standard impact energy |
2.207J(0.225Kgf.m) |
|
Stroke of rebound hammer |
75mm |
|
Friction of pointer slider |
0.5N~0.8N |
|
Sphere radius of rebound pole SR |
25mm±1mm |
|
Average rebound value on steel anvil Rm |
80±2 |
|
Size |
Φ54*278mm |
