Home > Products > Concrete testing machine > Cheap Steel CBR Body And CBR Mould for Bearing Test of Soil
Cheap Steel CBR Body And CBR Mould for Bearing Test of Soil
- Shanghai or Nanjing Seaport
- T/T Credit Card
You May Like
Product Details
| Brand Name | TBT | Place of Origin | Jiangsu, China | |
| Model Number | CBR |
Product Description
CBR Test mould and accessories
The CBR - California Bearing Ratio
- method is used for the laboratory evaluation of subgrade and subbase coarse materials in road construction.
The apparatus comprises moulds with accessories,
compaction rammers (the automatic models are the same used for the compaction of Proctor moulds).
Different models are available conforming to the various specifications in use.
Detail information:

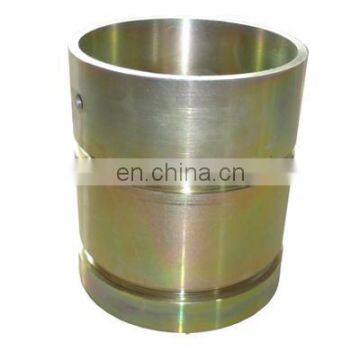

CBR mould complete with collar and perforated base plate.
Plated steel, 6 in. (152.4 mm) dia. x 7 in. (177.8 mm) body height .
Including:
a) CBR perforated base Plate: to fit mould body
b) CBR cutting collar: to fit BS Standard mould body, 51mm height, fit both c) ends of mould
Mould: 152×127mm (inside diameter×height)
CBR mould body with base plate, made from plated steel threaded on both ends,
152mm ID × 127mm high, 51mm high collar
“C” spanner, to fit BS/EN standard CBR mould and collars, two required;
Base Plate tool: to fit into base plate to assist removal from mould body;
BS/EN standard CBR Perforated Base Plate: to fit mould body
BS/EN Annular surcharge weight, 2.27 kg
BS/EN Slotted surcharge weight, 2.27 kg
Cutting Edge
Solid CBR base
Straight edge, 3×30×300mm
Spacer disc with “T” handle
---Carton box, wooden case or specified package
1) Inner package: dust-proof plastic bag
2) Outer package: standard export wooden case with pallet
3) Suitable for international transport through shipping by sea, by air or any other delivery method.
(Note: we can provide special packages according to buyer’s requirements.)
